Multi-Function 30g-2500g Gummy Nut Candy Snack Zipper Pouch Stand Up Pouch Doypack Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

All kinds of grains and solids material, like candy, nuts, raisins, peanuts, melon seeds, nuts,nutlet, chocolate, preserved fruit,potato chips,biscuits,confect, camphorball, currant, almond,potato crisps, pet food, dilatant food etc can be weighed by the ration. It is also suitable for weighing small hardware and plastic component.

Suitable Pouch: all type of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, flat pouch, stand-up pouch, zipper pouch, spout pouch, m gusset pouch, paper pouch, aluminium foil pouch, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Multi-Function 30g-2500g Gummy Nut Candy Snack Zipper Pouch Stand Up Pouch Doypack Packing Machine

* Wide application : various shapes, state and nature of products (such as candy, chips, nuts, frozen dumplings, biscuits,mothballs, pet food, puffed food, hardware, plastic parts, etc.)

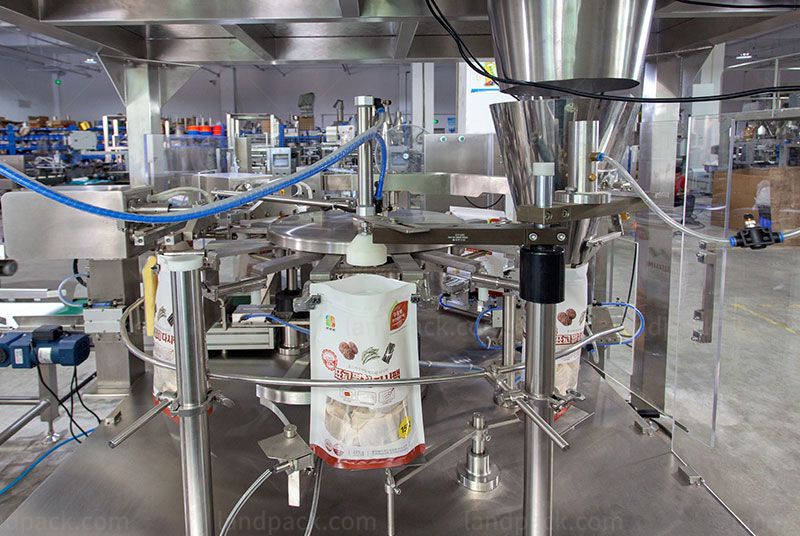

* Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.

* Easy to operate: PLC controller, HMI system, fault indication on the touch screen.

* The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.

* Automatic checking system can check bag situation, filling and sealing situation.

* The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing.

* Stainless steel 304 /other materials ensure sanitation and safety, meet the GMP standard.

* Internal grooved cam design: The echnology with high precision, suits for max. packing speed: 65cycles/min with stable running.

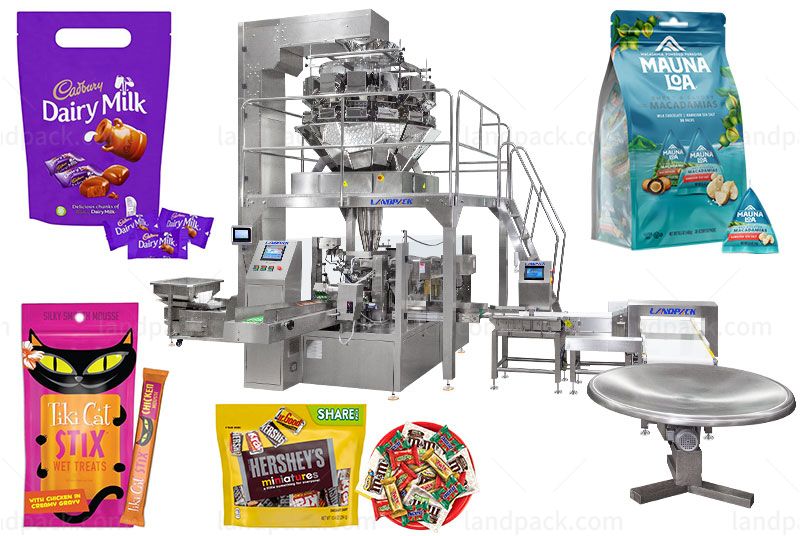

System Unite

1: Z shape bucket elevator conveyor

2: 10/14 head multihead weigher

3: Working Platform

4: Premade Bag Packing Machine/Doypack Pouch Packing Machine

ModelLD-8200/LD-8250
Packing materialall type of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, flat pouch, stand-up pouch, zipper pouch, spout pouch, m gusset pouch, paper pouch, aluminium foil pouch, etc.
sizeW:70-200/100-250
Filling range10-1000g/20-2500g
Packing speed40-60bag/min(speed is determined by the product filling quantity)
Average precision≤ ±1%
Total power2.5KW
Dimensions1900mm X 1570mm X 1700mm(L*W*H)
Work flowgiving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
Main standard parts1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system

After receiving your inquiry,We will send you the quotation as soon as possible.
