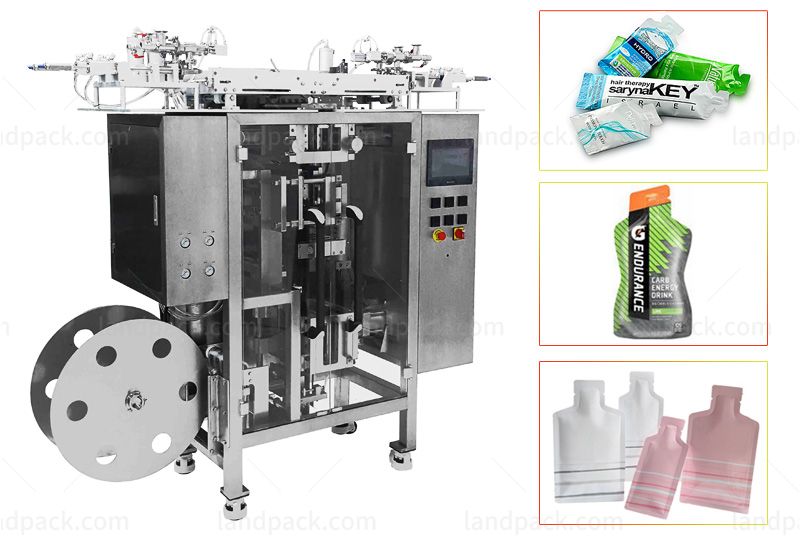

Multi Track Irregular Shape Sachet Liquid Packing Machine.

  • Application
  • Description
  • Parameter
  • Video

Application:

It widely be used to fill suitable for viscous liquid, coconut oil, gel, honey, laundry detergent,yogurt,detergent,soya milk,stuffing, sauces,beverage, shampoo,reagent, drinking water,juice,pesticide emulsion, dyes, pigments and medium viscosity of the paste objects.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Multi Track Irregular Shape Sachet Liquid Packing Machine.

English and Chinese screen display, operation is sample.

PLC computer system, function is more stable, adjustment any parameters not need stop machine.

It can stock ten groups of parameters, simple to change variety.

Servo motor drawing film, positing accurately.

Temperature independent control system, precision get to 1 degree.

Horizontal, vertical temperature control, suitable for various of mix film, PE film bag material etc.

ModelLD-500YS
Track number1~4 (Track)
Capacity20-30 cycle/min
Sachet sizeL: 50-170mm, W:40-230mm
Sealing typeIrregular shape bag
Film width&thicknessMax.500mm; 0.07--0.10mm
Filling method1.Piston pump, 2.Peristaltic pump
Power Supply220V/380V 50HZ, 5.0KW
Air consumption0.8Mpa,0.8m3/min
Dimension&weight2600*1350*2350mm, 800kg


After receiving your inquiry,We will send you the quotation as soon as possible.
