Application:

This automatic packaging machine is designed for the production and secondary packaging of coffee powder stick packs.

It can automatically produce coffee stick packs from roll film, arrange and count the finished stick packs, and load a preset quantity of 50 coffee stick packs into premade pouches.

It is especially suitable for coffee manufacturers that need high-efficiency multipack packaging, replacing manual stick pack sorting, counting and pouch loading.

Suitable Products:

• Coffee powder stick packs

• Instant coffee stick packs

• 3-in-1 coffee stick packs

• Other similar coffee powder stick products, subject to material and packaging tests

Main Packaging Format:

• Individual coffee stick packs

• 50 stick packs per premade pouch

• Secondary pouch packaging

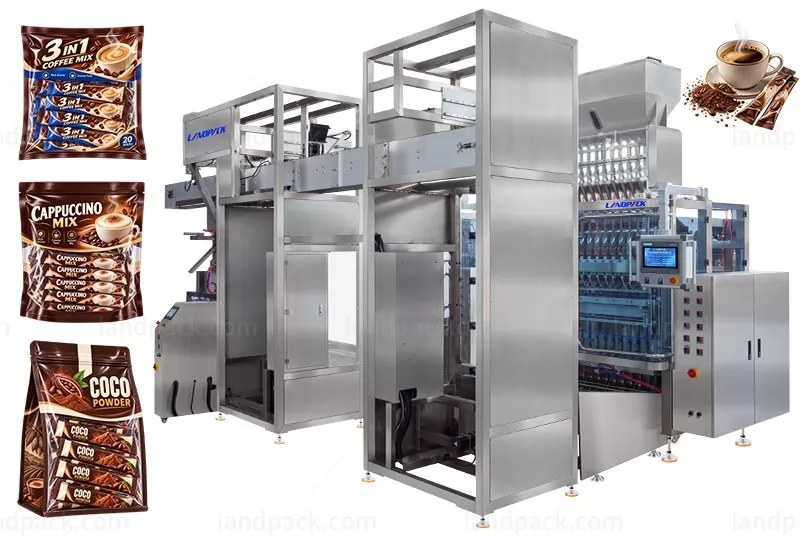

Automatic 3-in-1 Coffee Stick Pack Counting & Pouch Repacking Machine

The Automatic Coffee Stick Pack Counting & Pouch Repacking Machine integrates coffee stick pack production, automatic arranging and counting, and secondary pouch packaging into one continuous production system.

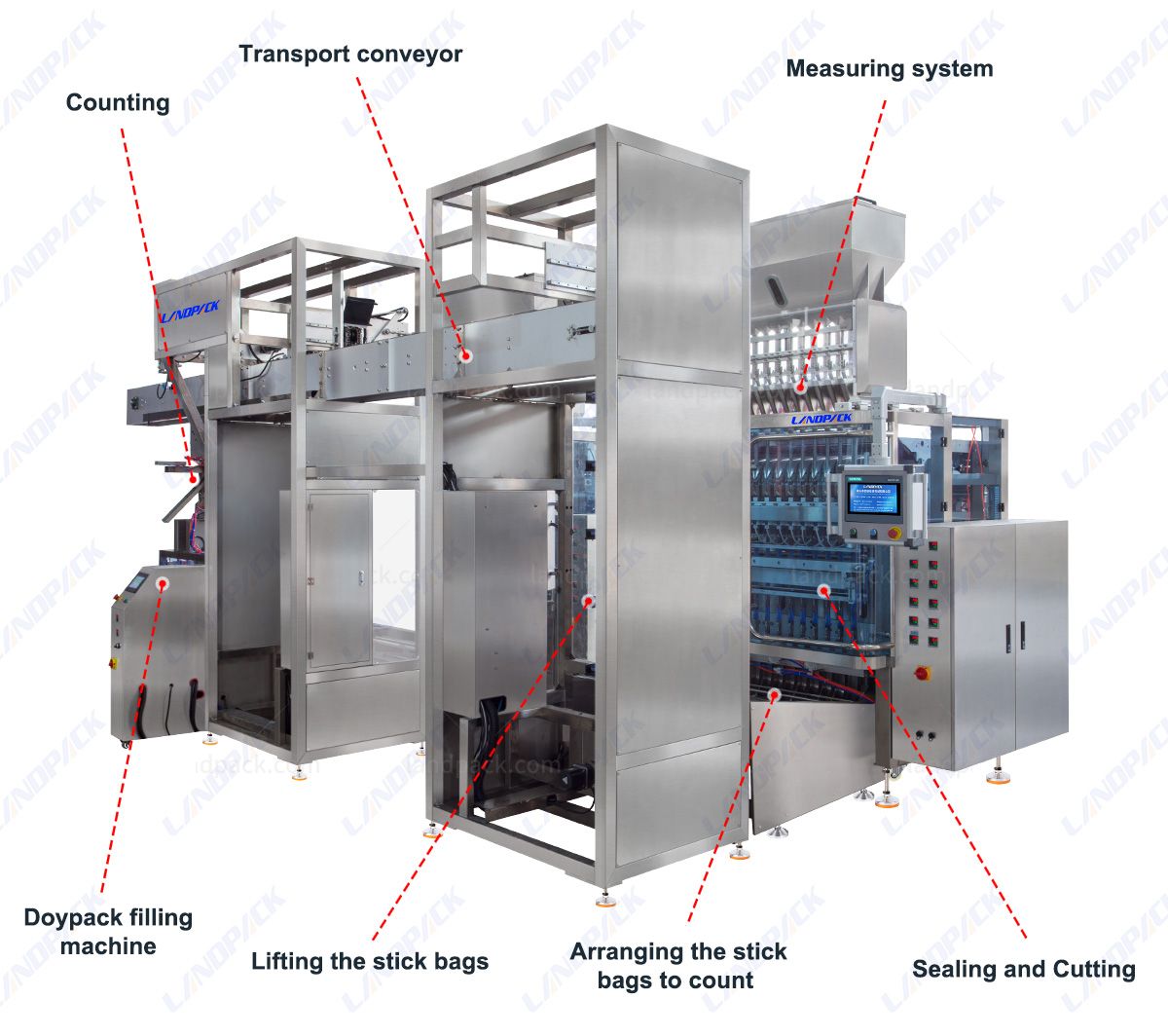

The machine first pulls roll packaging film and prints the production date. The coffee powder measuring system then doses the product and fills it into the stick bags. The stick packs are automatically sealed and cut before entering the arranging and counting section.

After production, the finished coffee stick packs are automatically arranged and counted. The system groups 50 stick packs, transfers them through the lifting and conveying system, and loads them into automatically fed and opened premade pouches.

The secondary packaging section includes material detection, emergency product discharge, automatic pouch feeding and opening, 50-piece counting, pouch loading, finished-product conveying and final weight checking. Finished pouches are finally collected on the product turntable.

Automatic Working Process

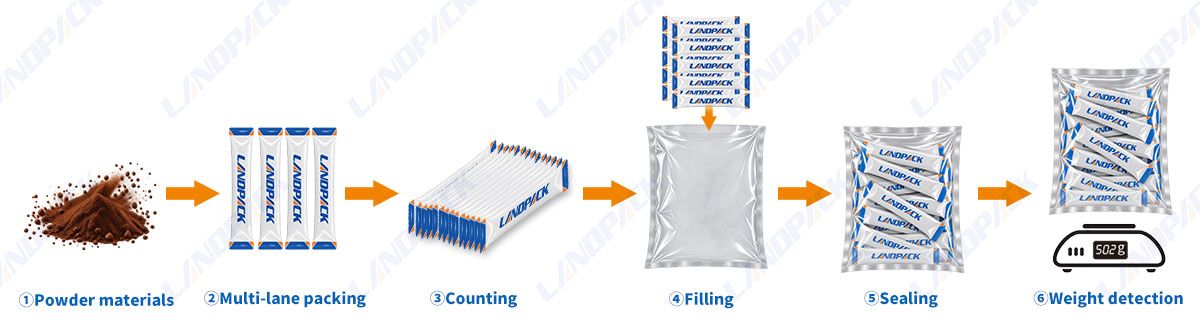

Roll Film Feeding → Date Coding → Coffee Powder Measuring → Stick Pack Filling → Sealing & Cutting → Stick Pack Arranging → Counting → 50-Piece Grouping → Stick Pack Transfer → Premade Pouch Feeding & Opening → Loading 50 Stick Packs → Finished Pouch Conveying → Weight Checking → Finished Product Collection

Compared with manual production, the complete system can reduce the required operators to 1–2 workers while automating the repetitive processes of stick pack arranging, counting and secondary pouch loading. Its compact layout of approximately 7 m × 5 m also helps reduce factory floor-space requirements.

This solution is particularly suitable for coffee manufacturers looking to automate the small stick pack to large pouch secondary packaging process and improve production efficiency.

Features

1. Automatic Stick Pack Production

Integrates roll-film pulling, coffee powder measuring, filling, sealing and cutting to produce finished coffee stick packs automatically.

2. Multi-Lane Stick Pack Production

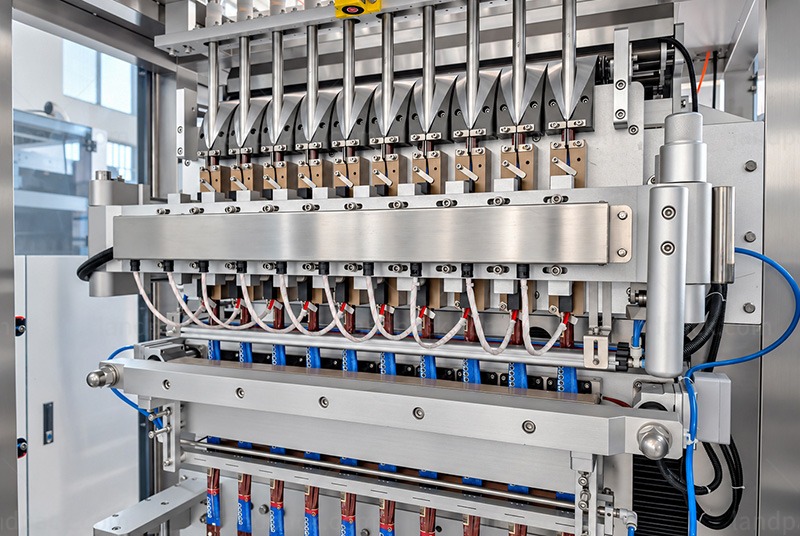

The multi-lane structure produces multiple coffee stick packs simultaneously, supporting efficient continuous production.

3. Automatic Stick Arranging & Counting

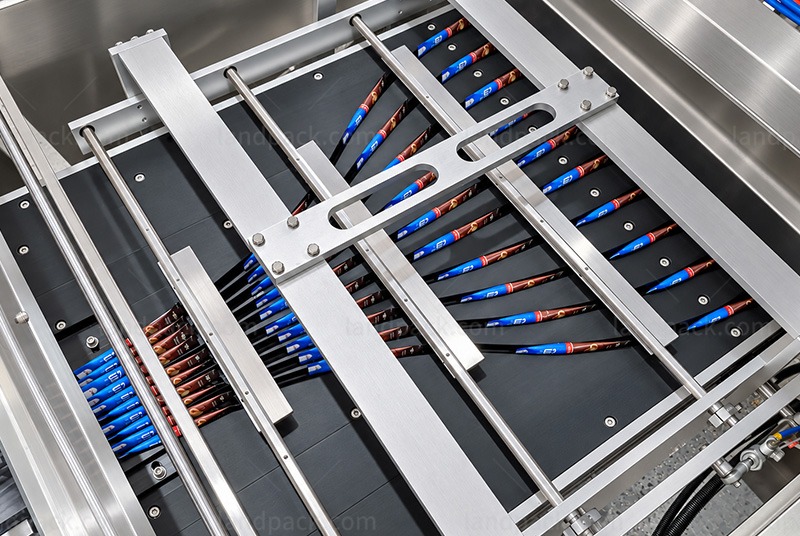

The finished coffee stick packs are automatically arranged and counted before secondary packaging, eliminating manual counting.

4. Automatic 50-Stick Grouping

The system automatically counts and groups 50 coffee stick packs according to the preset quantity before pouch loading.

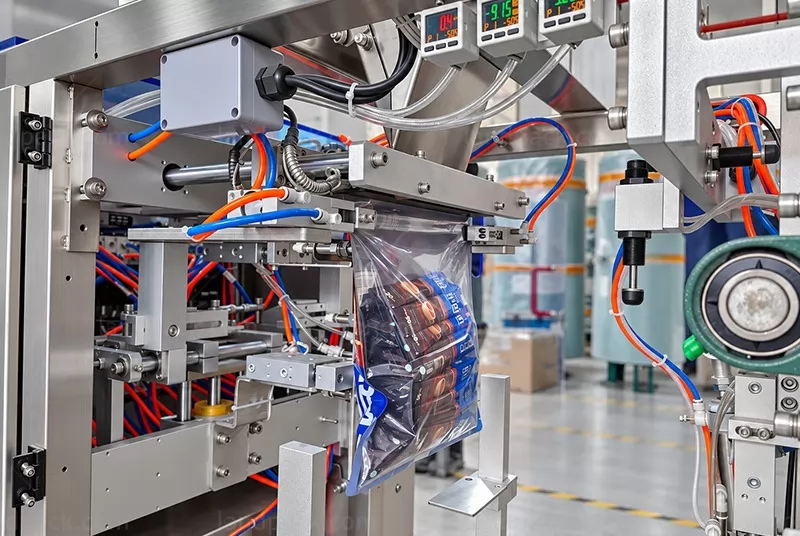

5. Automatic Premade Pouch Feeding & Opening

The secondary packaging section automatically feeds and opens premade pouches, preparing them for stick pack loading.

6. Automatic Stick Pack Loading

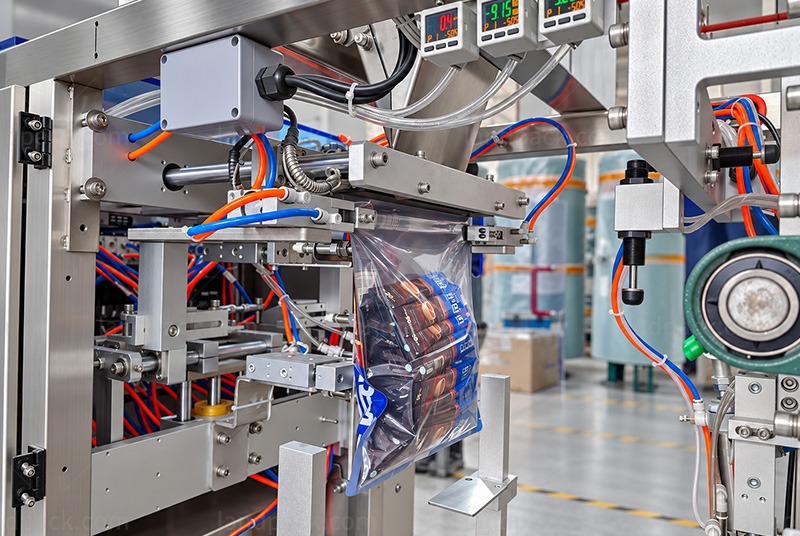

The counted 50-piece group is automatically lifted, transferred and loaded into the premade pouch.

7. Material Detection & Emergency Discharge

Material detection sensors monitor product transfer, while the emergency discharge system helps remove material when an abnormal condition occurs.

8. Final Weight Checking

The finished pouches can pass through a weight-checking section to verify the final package weight before collection.

9. Low Labor Requirement

The complete production system can be operated by only 1–2 workers, significantly reducing manual labor compared with conventional manual production.

10. Compact Production Layout

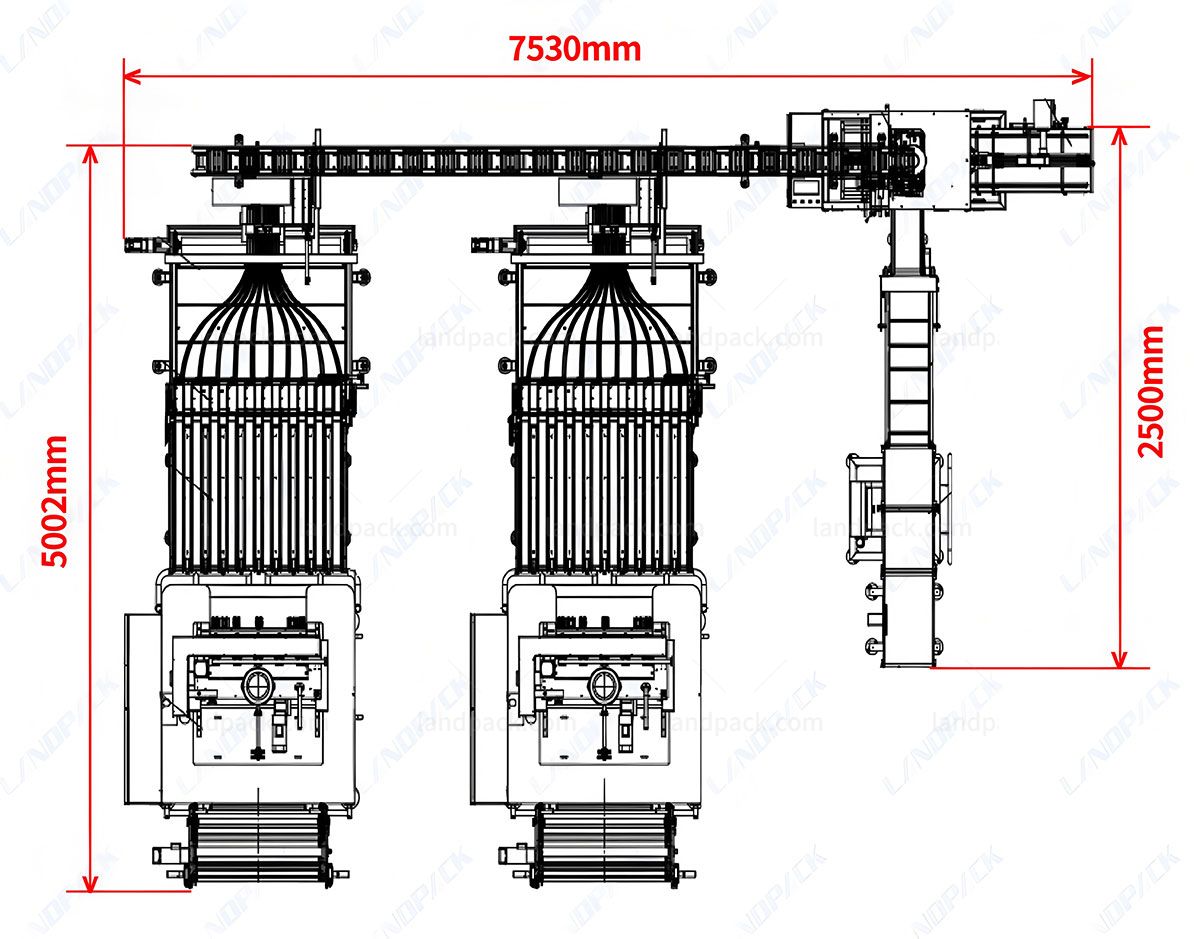

The complete machine layout is designed to occupy approximately 7 m × 5 m, helping save factory floor space.

11. Easy Operation

The system uses a mature automated process and is designed for straightforward operation and production management.
