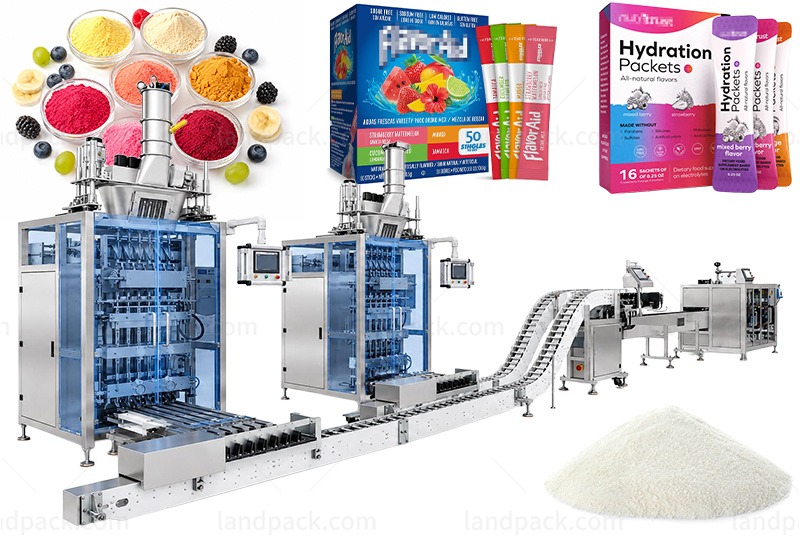

Automatic Multi-Lane Powder Stick Packing Machine Cartoning Line

Application:
This multi lane packing machine packs protein powder, collagen powder, probiotics, milk powder, coffee powder, drink mixes, pharmaceutical powder, nutrition blends, and similar dry products into single-dose sticks. After filling and sealing, the line counts and groups the sticks before loading them into retail cartons. The stick packing machine suits food, supplement, pharmaceutical, and contract-packing lines that need stick production and cartoning in one system. Landpack also uses this type of line for protein powder, instant coffee, whey powder, probiotics, vitamin mixes, and medicine powders.

Package Type:
The stick pack machine produces narrow back-seal stick sachets from roll film and then loads them into folding paper cartons. The stick section can handle different bag lengths and widths according to lane setup, while the cartoner can work with straight-tuck, reverse-tuck, snap-lock, crash-lock, auto-bottom, and small rectangular cartons after matching the carton mechanism.

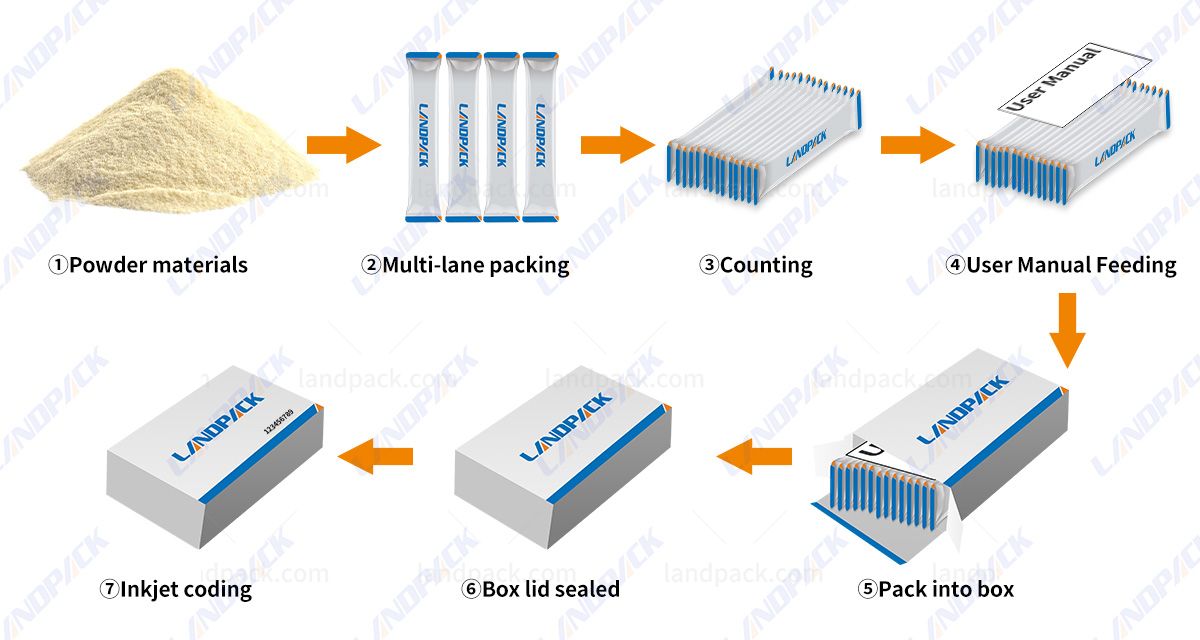

Workflow:
1. Powder Feeding, 2. Multi-Lane Measuring, 3. Stick Bag Forming, 4. Powder Filling, 5. Back Sealing, 6. End Sealing and Cutting, 7. Stick Conveying, 8. Automatic Counting, 9. Stick Grouping, 10. Carton Feeding and Erecting, 11. Leaflet Insertion, 12. Carton Loading, 13. Carton Closing, 14. Carton Coding, 15. Finished Carton Output

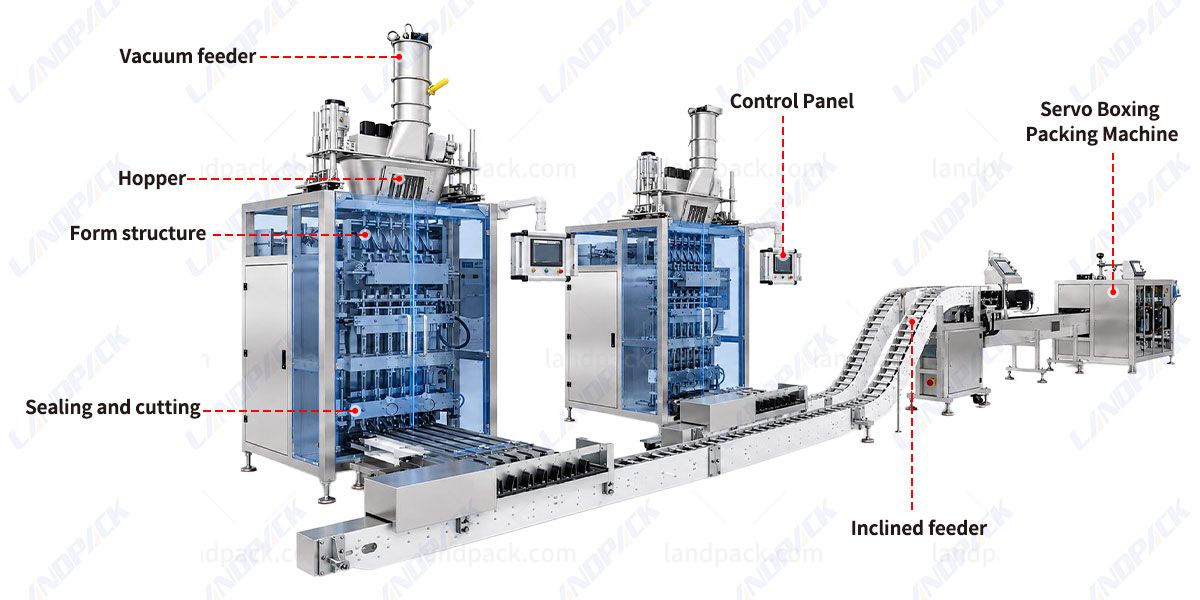

Machine Key Components:

Features:
1. Multi-lane design allows several stick packs to run during each machine cycle
2. Lane quantity can change according to production requirements; the reference architecture supports 2–16 lanes

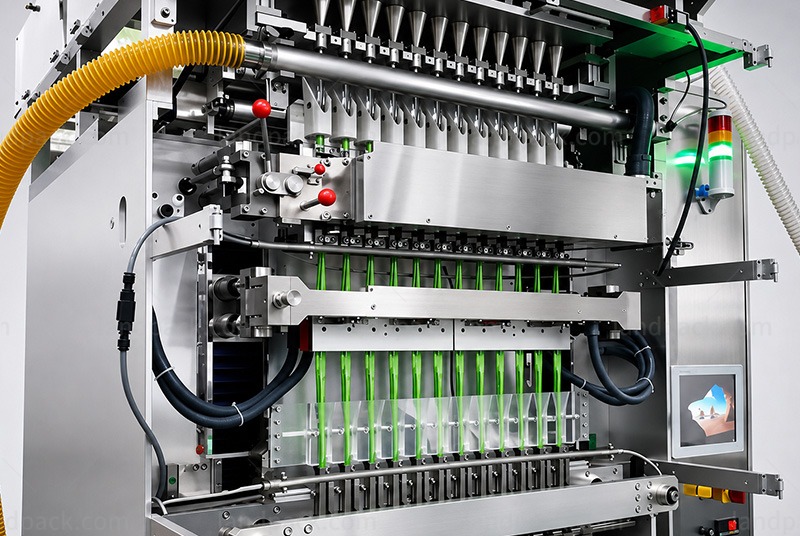

3. Full-servo stick packing section controls film movement, filling, sealing, and cutting
4. Automatic counting unit checks the required stick quantity before cartoning

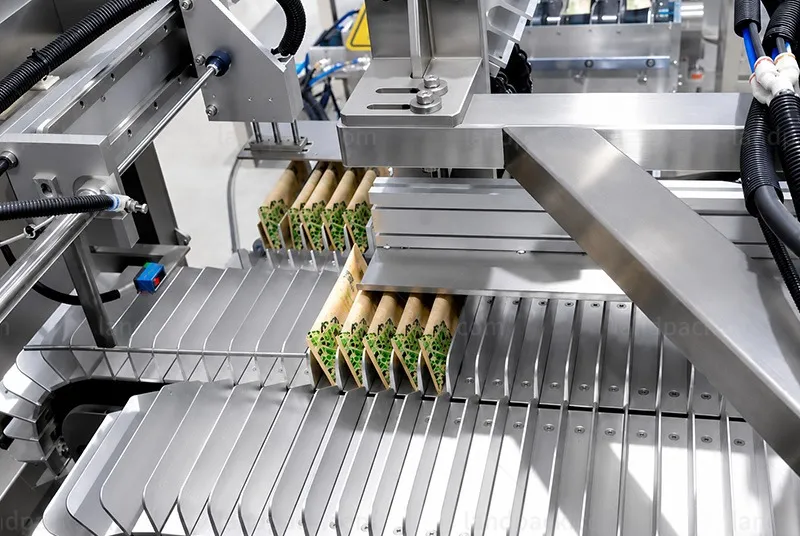

5. Sorting section keeps finished sticks aligned before grouping

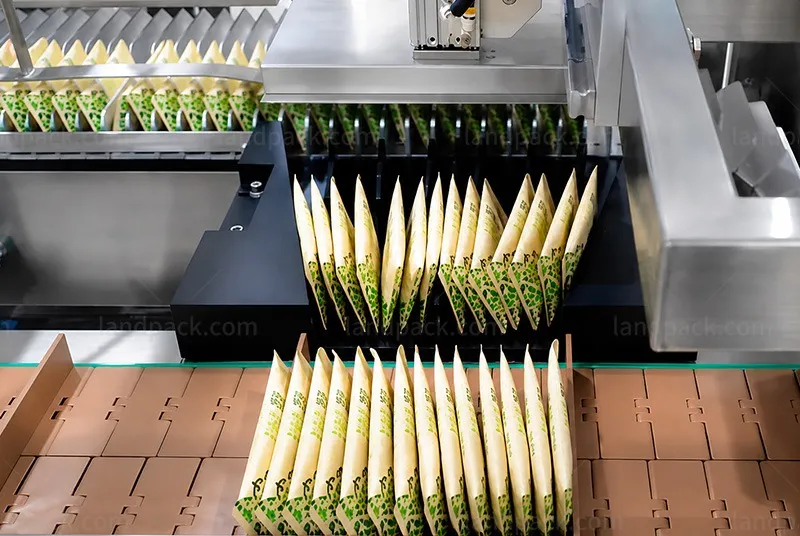

6. Grouping unit prepares a preset number of sticks for each carton
7. Vacuum powder feeder can supply the multi-lane machine continuously
8. Inclined conveyor transfers finished sticks toward the counting and cartoning section

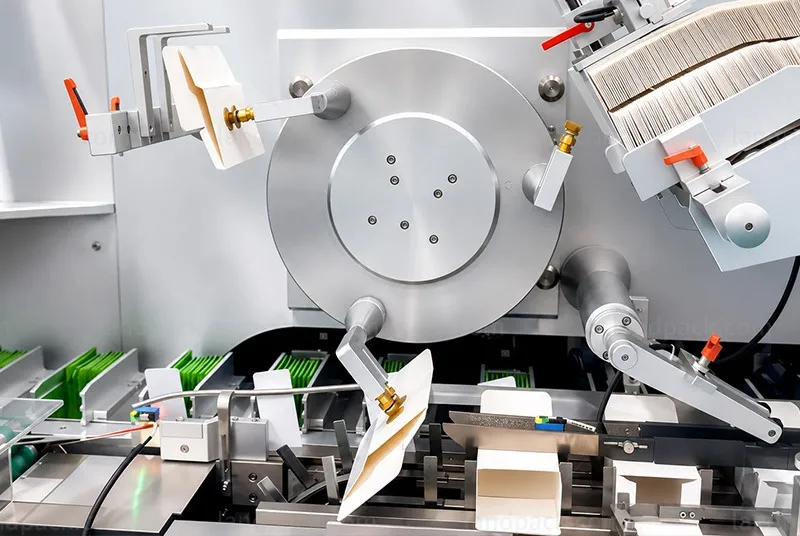

9. Automatic carton pick-up opens flat cartons before product loading
10. Dedicated station can add instruction leaflets together with the stick packs
11. Cartoner loads, folds, closes, and outputs finished retail boxes
12. Coding unit adds date, batch, or traceability information to the finished carton
13. Modular layout lets the line match different lane counts, stick sizes, and carton quantities
14. The same line concept can handle powder, granule, liquid, or gel products after changing the corresponding filling system.
