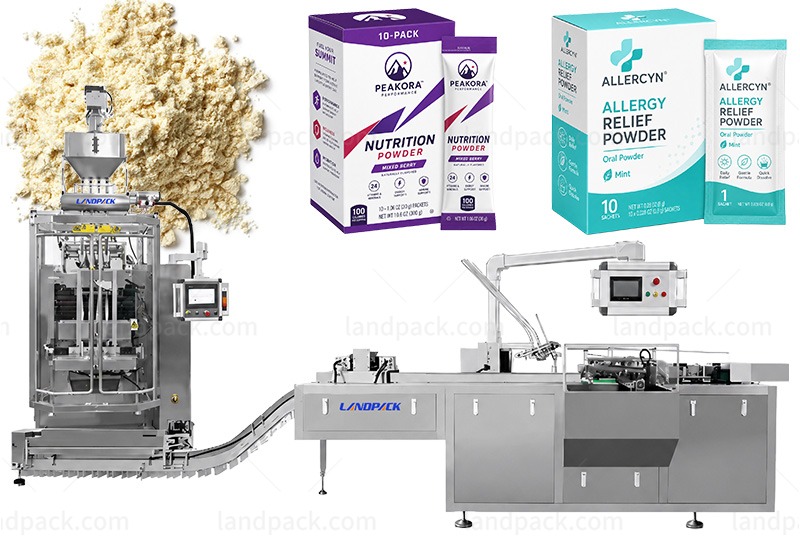

Automatic Multi-Lane Protein and Coffee Powder Stick Pack Counting and Cartoning Line

Application:
This powder stick pack machine packs protein powder, instant coffee, collagen powder, whey powder, milk powder, probiotics, vitamin blends, solid drink powder, and other single-dose powder products. Multiple lanes produce stick packs at the same time, then the downstream system counts and arranges the finished sticks before loading them into folding cartons. It suits nutrition, coffee, food, pharmaceutical, and contract-packing factories that need stick production and retail box packing on one line.

Package Type:
The stick powder packing machine makes narrow stick packs from roll film and packs a preset quantity into folding paper cartons. Operators can change stick length, filling weight, carton dimensions, and the number of sticks per box according to the product specification. The cartoning section can work with straight-tuck, reverse-tuck, auto-bottom, and other small folding cartons after matching the carton mechanism.

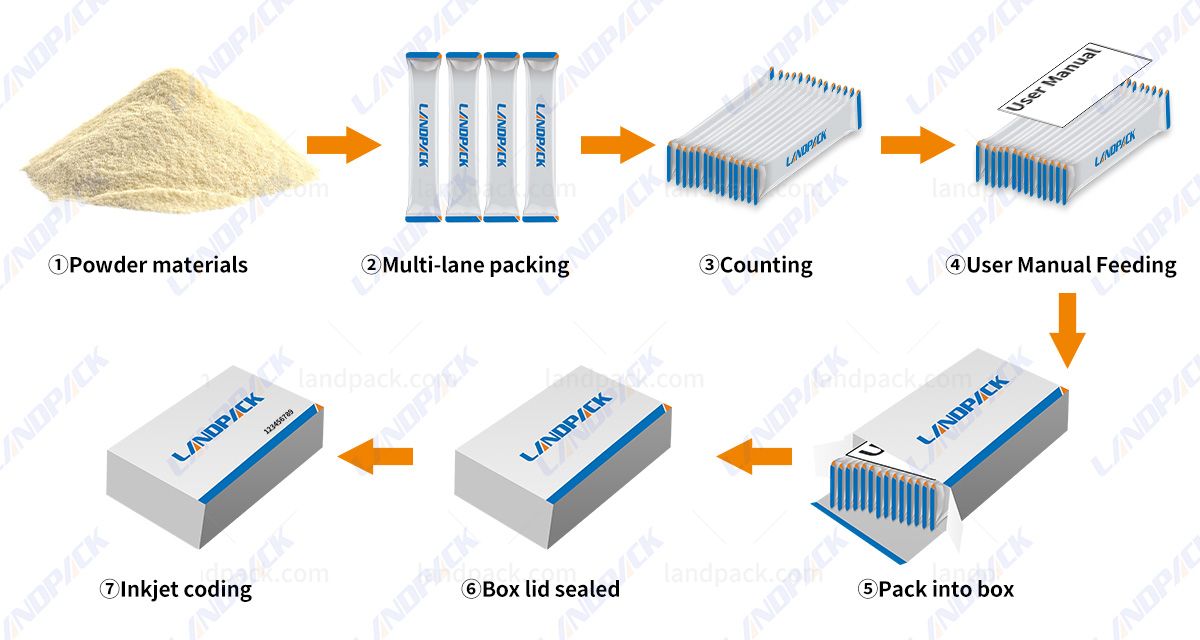

Workflow:
1. Powder Feeding, 2. Multi-Lane Dosing, 3. Stick Forming, 4. Powder Filling, 5. Longitudinal Sealing, 6. End Sealing and Cutting, 7. Stick Conveying, 8. Automatic Counting, 9. Stick Arrangement, 10. Carton Feeding, 11. Carton Opening, 12. Stick Loading, 13. Carton Closing, 14. Date Coding, 15. Finished Box Output

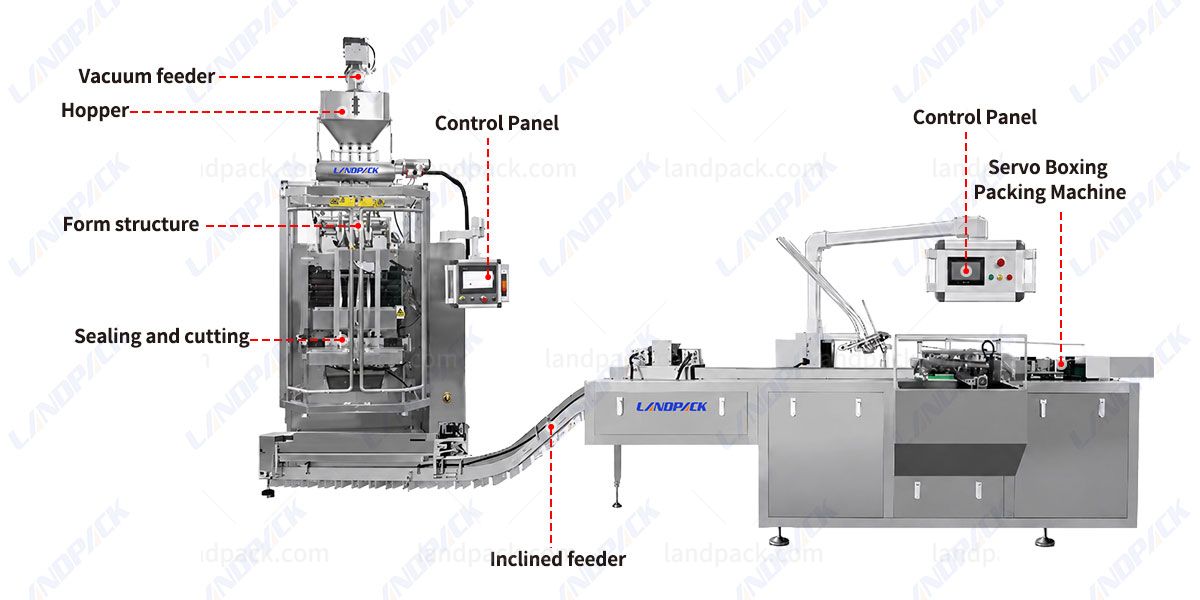

Machine Key Components:

Features:

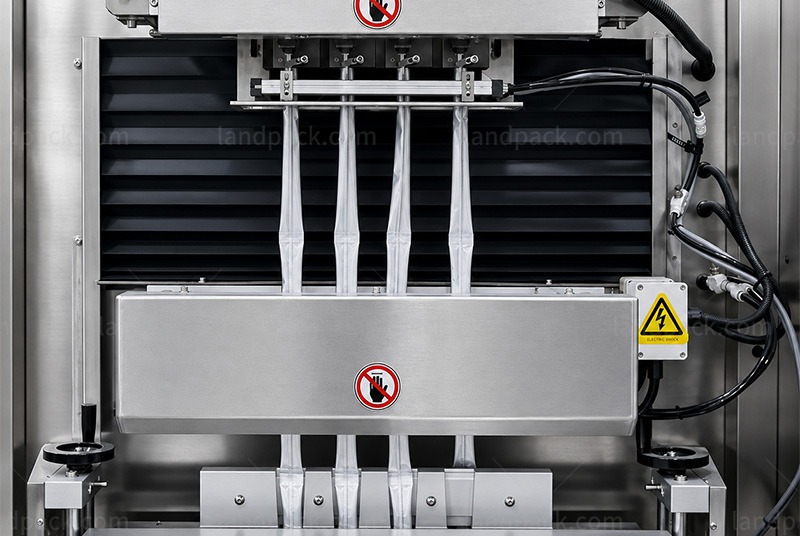

1. Multi-lane layout packs several protein or coffee powder sticks during each machine cycle

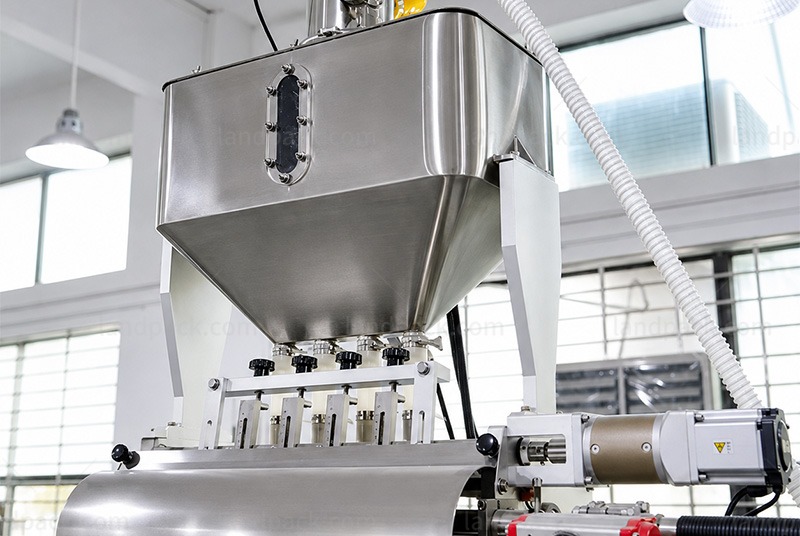

2. Independent dosing channels control the powder quantity across each lane
3. Servo film control manages stick length, film movement, and cutting position
4. Automatic counter sets the required number of sticks for every retail carton
5. Sorting section keeps loose sticks organized before box loading
6. Count detection prevents cartons from receiving an incomplete stick quantity
7. Automatic carton magazine supplies flat boxes to the loading section

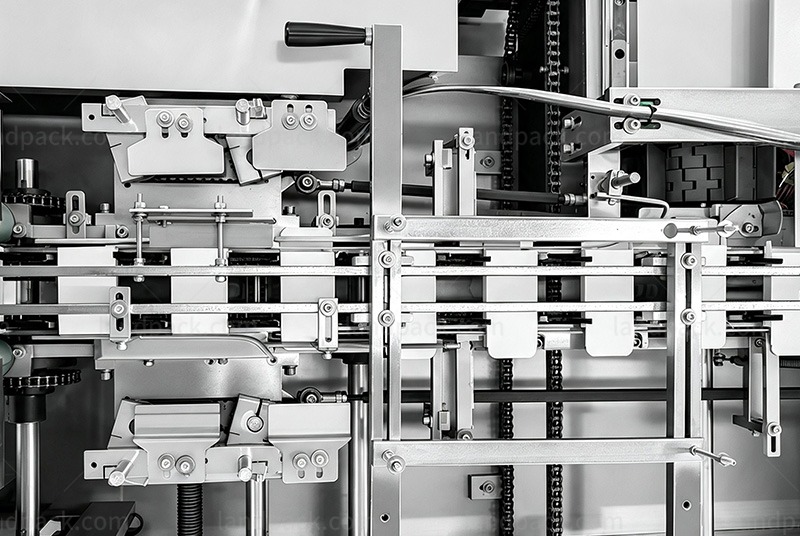

8. Cartoner handles box opening, stick loading, flap closing, and finished-box output
9. PLC and touchscreen manage dosing, stick dimensions, counting quantity, and carton settings
10. Recipe storage supports changes between protein powder, coffee powder, and other products
11. Optional leaflet insertion adds instructions or product information inside the carton
12. Coding equipment can add production date, batch number, or traceability data
13. The line can connect with checkweighing, rejection, case packing, and other downstream equipment
14. Compared with separate boxing stick pack machines, the integrated layout keeps stick production, counting, and cartoning in one connected process
