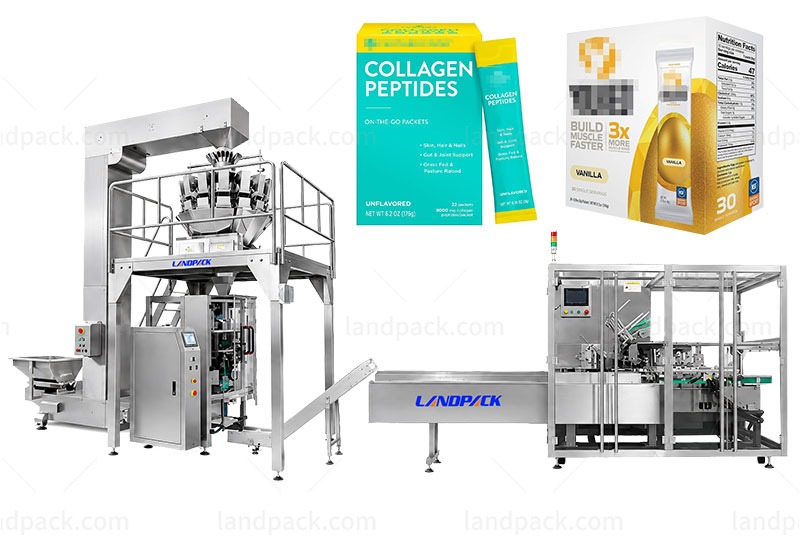

High Speed Multi-Lane Powder Stick Pack Filling Counting Cartoning Machine Line

Application:
This stick pack packaging machine packs milk powder, coffee powder, protein powder, collagen powder, probiotics, solid drink powder, seasoning powder, pharmaceutical powder, and similar products into small stick packs. After sealing, the line counts and groups the sticks, then loads the preset quantity into folding cartons. It suits food, beverage, nutrition, pharmaceutical, and contract-packing lines that need stick production and automatic cartoning in one system.

Package Type:
The stick filling machine produces narrow stick packs from roll film and then loads them into folding paper cartons. The stick section can handle different bag widths, lengths, and filling weights, while the cartoning section can match different carton dimensions and stick quantities per box.

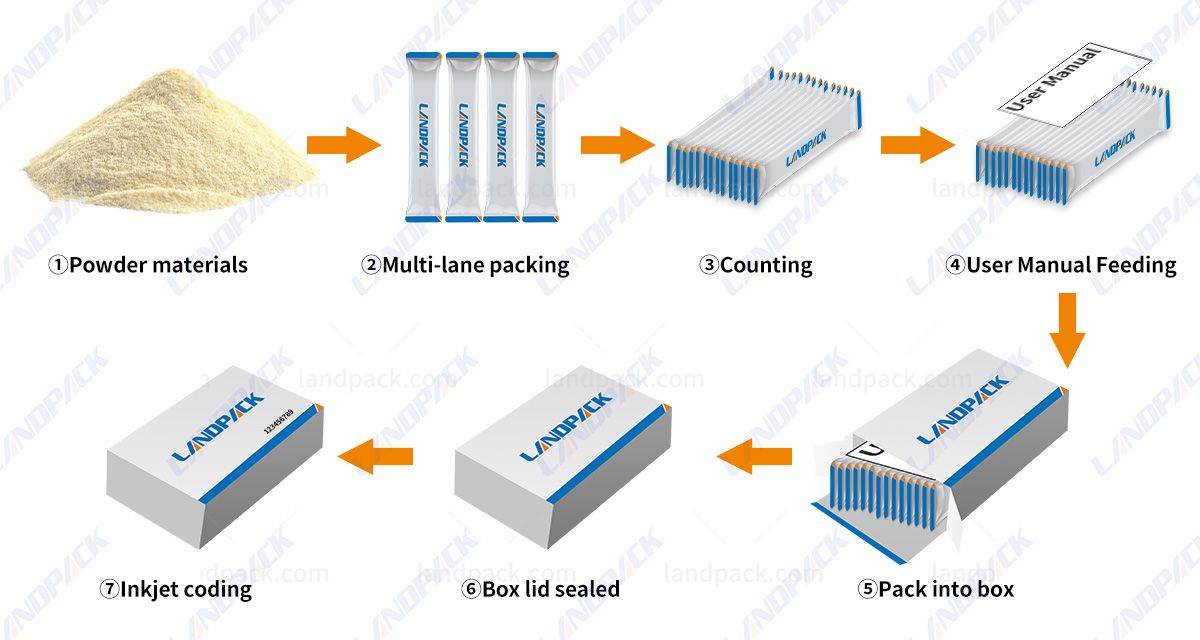

Workflow:
1. Powder Feeding, 2. Multi-Lane Measuring, 3. Stick Bag Forming, 4. Powder Filling, 5. Vertical Sealing, 6. End Sealing and Cutting, 7. Stick Conveying, 8. Automatic Counting, 9. Stick Grouping, 10. Carton Feeding, 11. Carton Erecting, 12. Stick Loading, 13. Carton Closing, 14. Finished Box Output

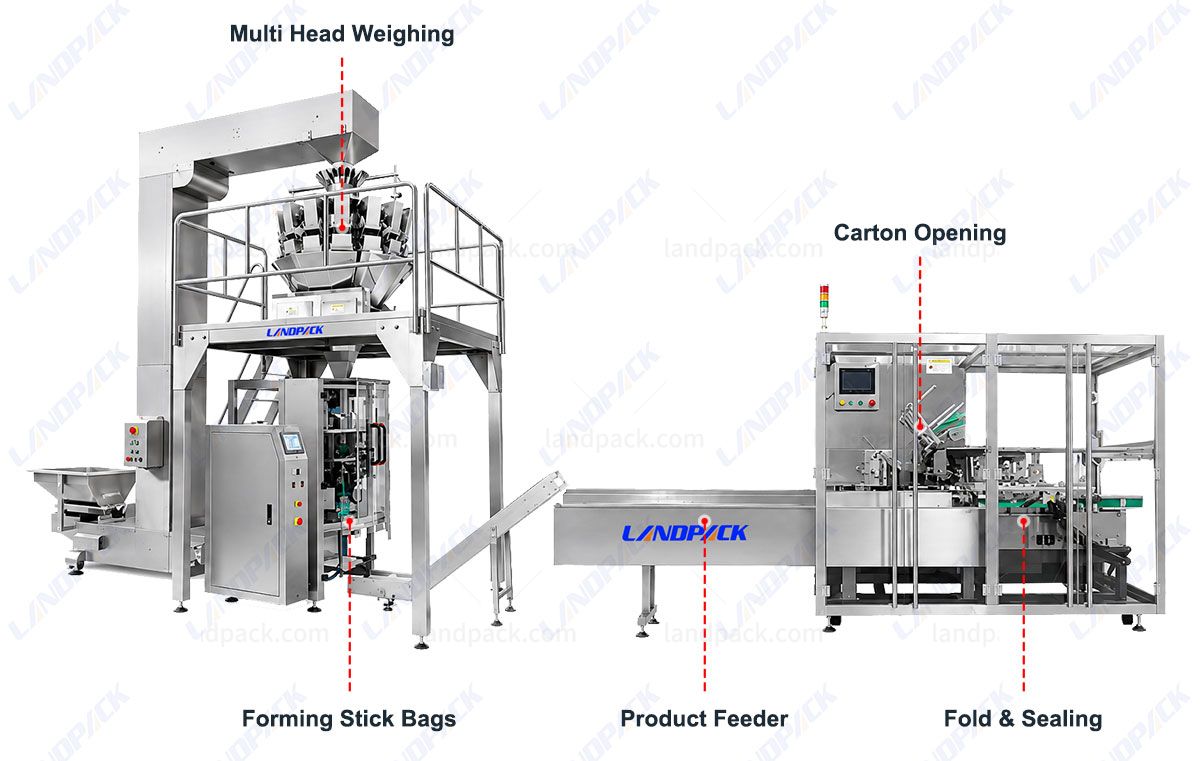

Machine Key Components:

Features:
1. Multi-lane structure produces several stick packs during each machine cycle

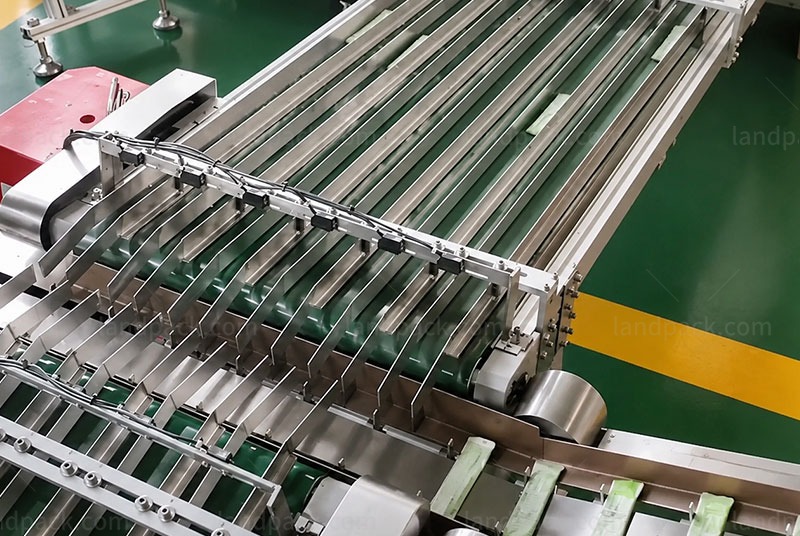

2. Automatic counting unit controls the number of sticks loaded into each carton

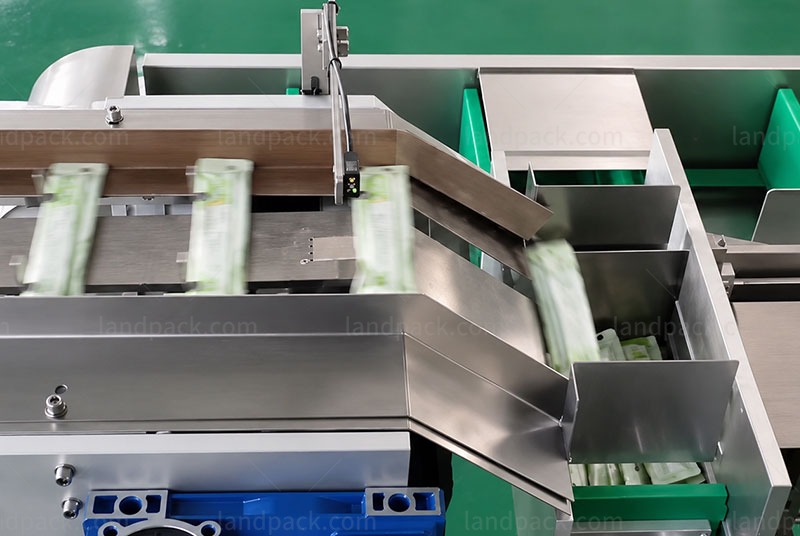

3. Grouping section arranges loose sticks before carton loading
4. PLC and touchscreen control filling, bag length, counting quantity, and cartoning settings
5. Servo film control keeps stick length and cutting positions aligned
6. Individual dosing channels support consistent filling across multiple lanes

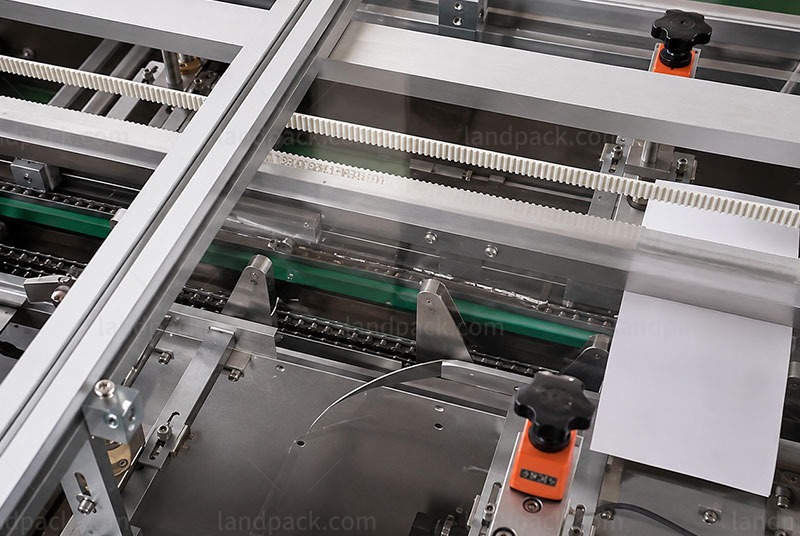

7. Automatic carton magazine feeds flat cartons continuously
8. Cartoner completes carton opening, stick loading, closing, and output
9. Product-count detection stops carton loading when the stick quantity remains incomplete
10. Recipe storage supports changes between different stick sizes and carton counts
11. Modular layout can add coding, labeling, checkweighing, rejection, and case packing
12. Reference lines support powder and granular sachet products such as coffee, milk powder, meal-replacement powder, solid drinks, and tea products.
