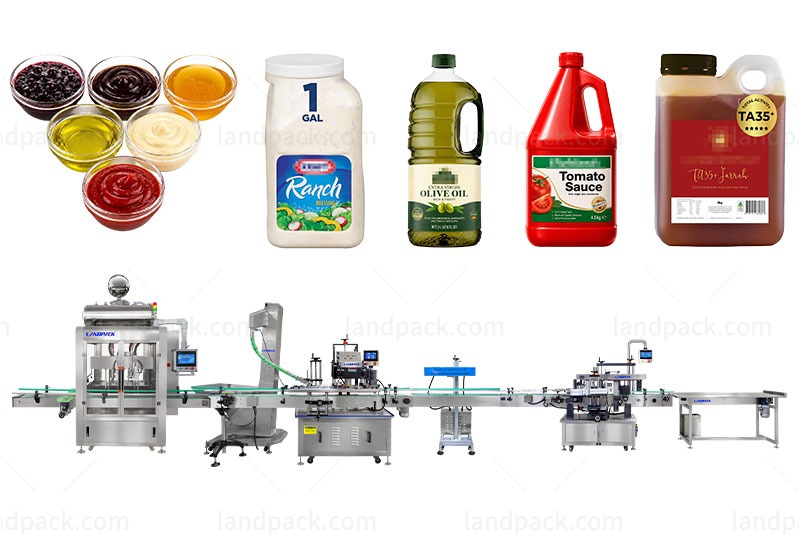

Automatic Chili Sauce Hot Sauce Liquid Filling Capping Sealing Labeling Machine With CIP System

Application:

Automatic Chili Sauce Filling machine is a complete packaging solution designed for viscous sauces containing particles, such as chili sauce, hot sauce, garlic sauce, bean paste, salsa, curry sauce, BBQ Sauce, tomato sauce, pasta sauce, bean paste, thick condiments with particles.

Package Type:

Automatic Chili Sauce Filling machine is suitable for a wide range of containers including PET bottles, glass bottles, HDPE bottles, plastic jars, wide-mouth sauce jars, round bottles, square bottles and customized sauce containers. The filling line supports packaging volumes from 100ml to 5000ml and can be customized according to different bottle shapes and production requirements.

Workflow:

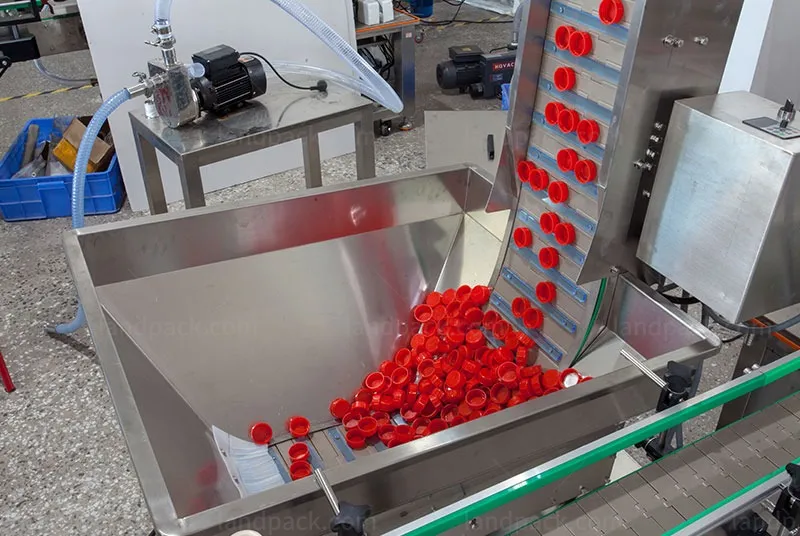

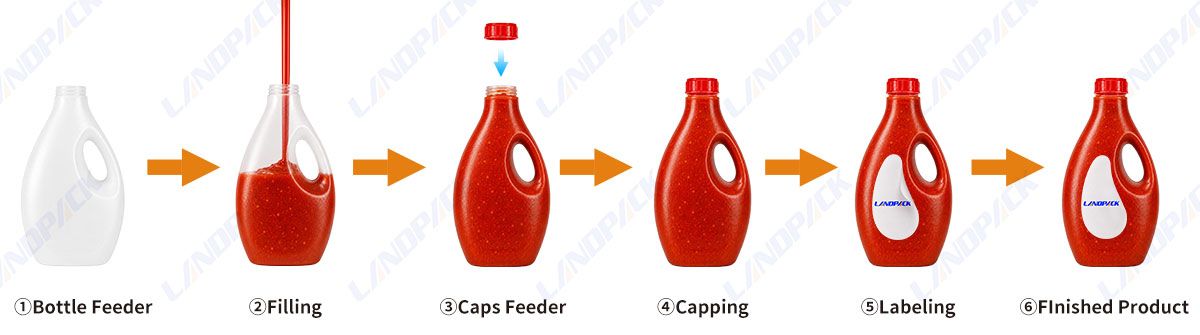

Bottle Feeding → Tracking Filling → Cap Feeding → Automatic Capping → Induction Sealing → Labeling → Product Collection

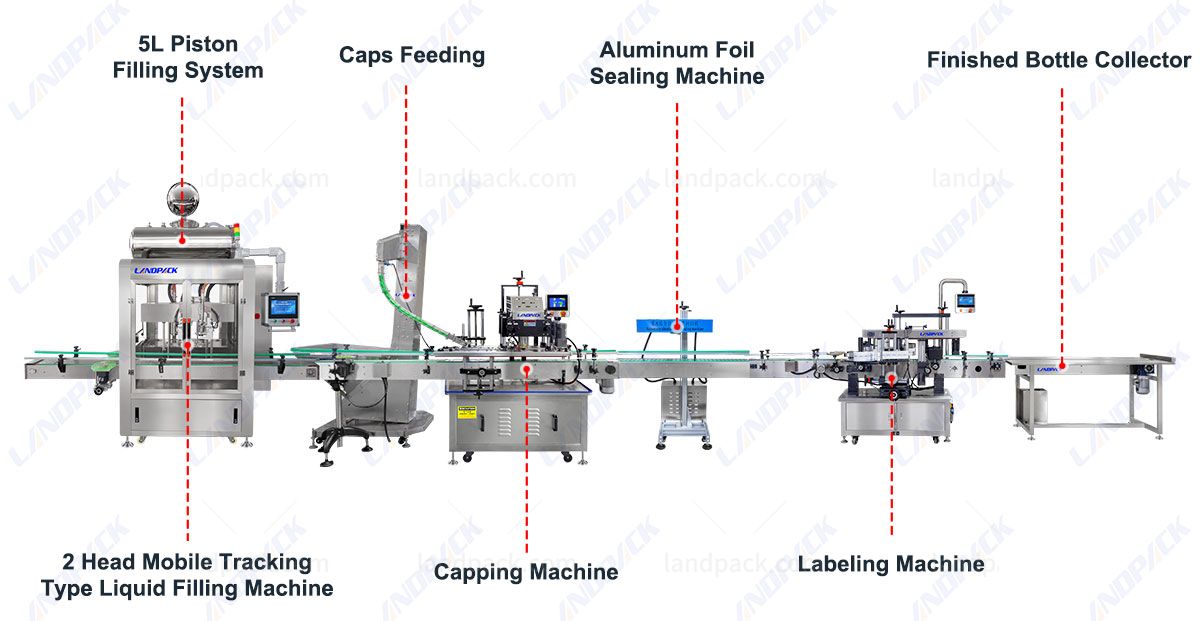

Machine Key Components:

Features:

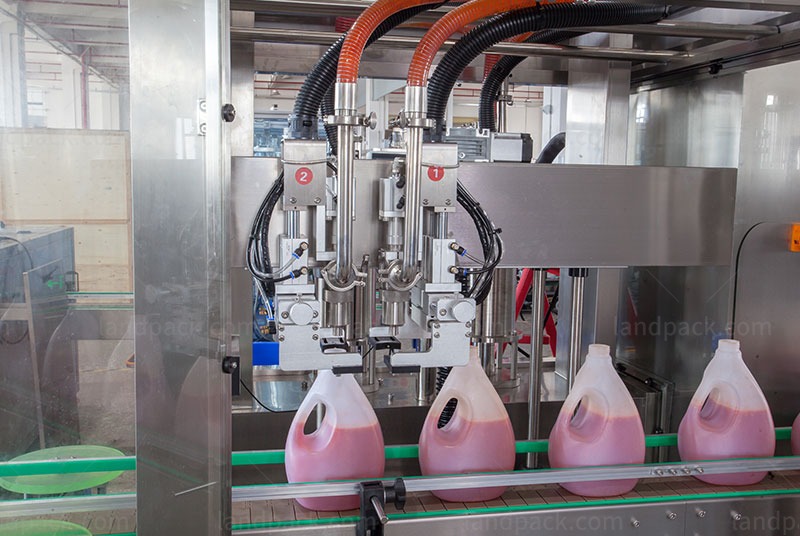

1. 5L piston filling system supports filling volumes from 500ml-5000ml, with speeds up to 15 bottles/min for 5L containers.

2. Compatible with various bottle shapes and sizes, including round bottles, square bottles and large-capacity containers.

3. Two-stage or three-stage filling control reduces foaming and prevents liquid splashing during filling.

4. Intelligent photoelectric detection system features No Bottle, No Fill protection for reduced product waste.

5. High-precision piston filling technology ensures stable filling accuracy and consistent product quality.

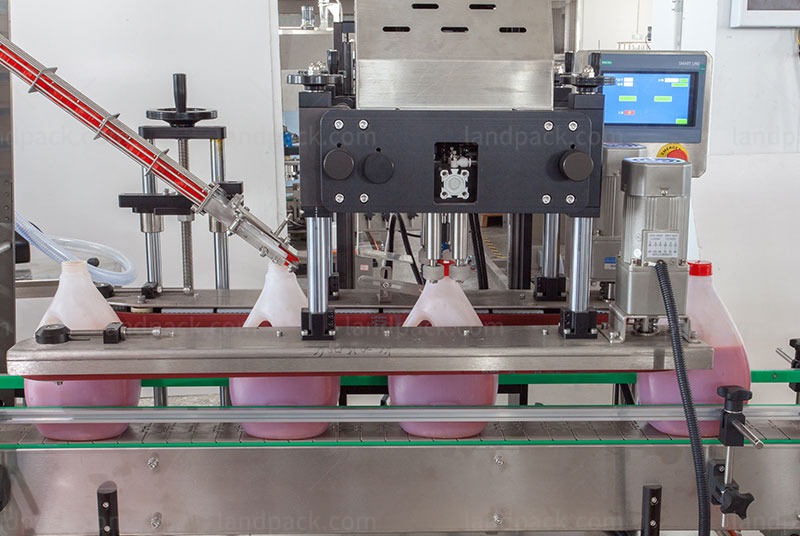

6. Four-wheel capping machine handles different screw cap sizes with simple adjustment and reliable sealing performance.

7. Double-side labeling machine supports single-label or front-and-back labeling on round and square bottles.

8. PLC control system can store up to 10 product recipes for quick changeovers and efficient production management.
