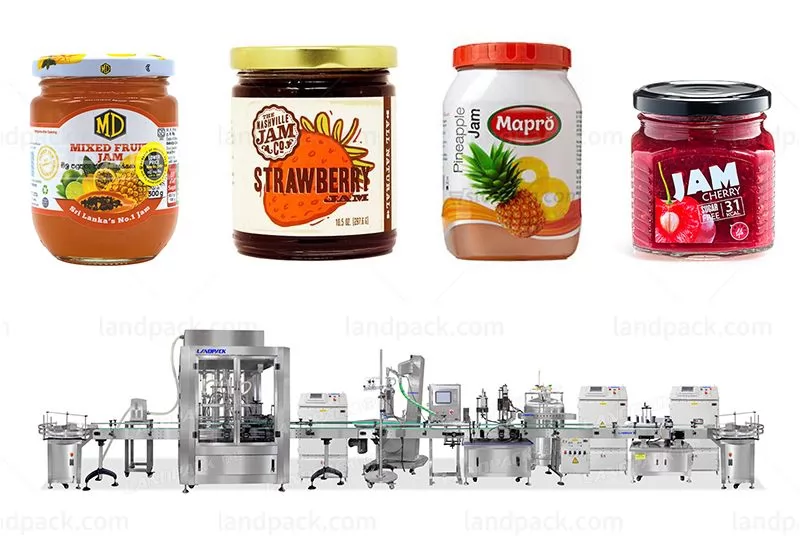

Automatic Fruit Jam Bottle Filling Production Line For Sale

  • Application
  • Description
  • Parameter
  • Video

Application:

This machine is suitable for filling and capping semi-liquid products without or with small particles: such as sweet chili sauce, beef paste, bean sauce, mushroom sauce, tomato sauce, peanut butter, jam, honey, sauce, shrimp paste, shampoo, body wash, liquid detergent, dishwashing liquid, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging sampel:应用图.jpg

1. Nice machine appearance, reasonable structure, this is the most advanced new design thick sauce filling machine at present, machine can be customized with 4/6/8/12/14/etc filling heads according to customer's production capacity. Its has advantage of high capacity, good safety performance and high degree of automation.

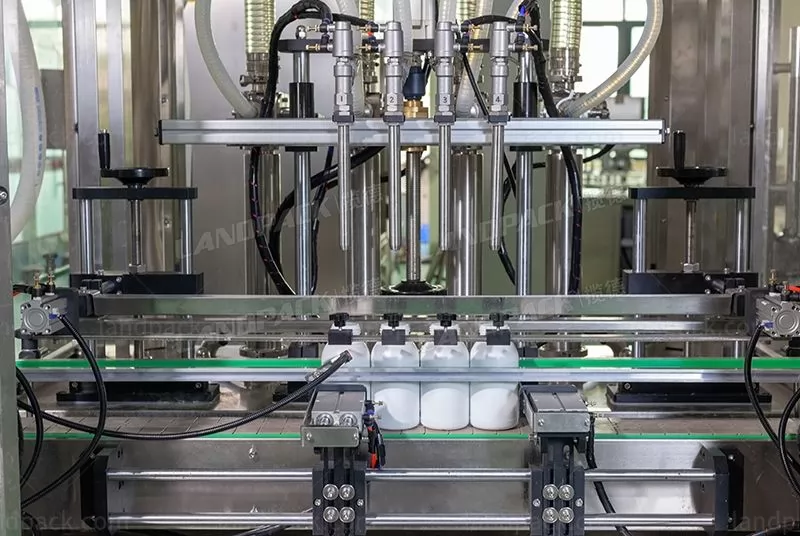

2. Plunger pump filling system has features of no adsorbing drugs, good chemical stability, high temperature resistance, corrosion resistance, abrasion resistance, long service life, has unique advantages when fill some corrosive liquid.

3. Used for various viscosity liquid filling, frequency control, automatic count.

4. Main electrical elements adopts foreign well-known brand.

5. Fillng nozzle and piston pump are made by high quality 316 stainless steel.

6. Machine body is made of 304 stainless steel, full compliance with GMP standard.

ModelLD-GX083
Filing head number4
Filling volume50-1000ml
Capacity10-40 bottles/min
Filling accuracy≤ ±1%
Pass rate≥ 99%
Label size  L: 20-350mm, H: 15-200mm
Label accuracy≤ ±1mm
Power supply1 Ph. AC220V, 50/60Hz
Total power  6.5 KW
Net weight1600kg
Overall dimension  L7000 × W1500 × H1650mm

After receiving your inquiry,We will send you the quotation as soon as possible.
