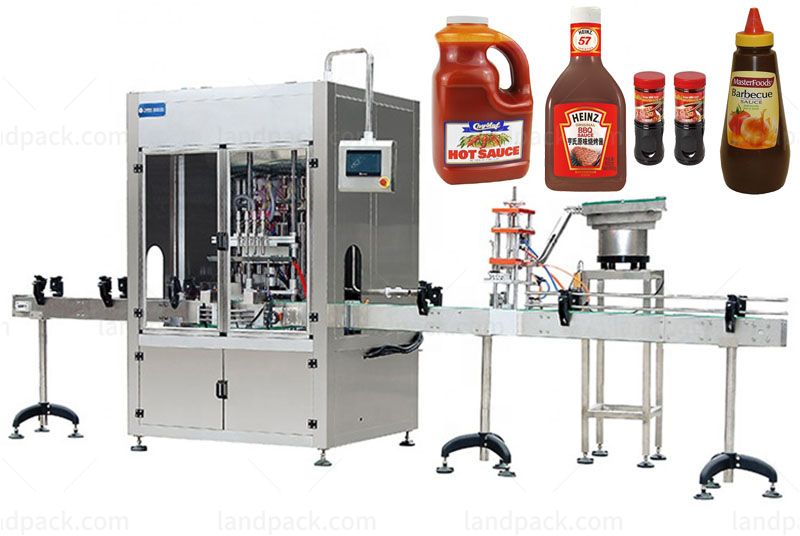

Automatic Multifunction Filling Machine Line With Self-Cleaning System.

  • Application
  • Description
  • Parameter
  • Video

Application:
Suitable for automatic bottled and canned in Automatic chemical industry, daily chemical industry, lubricant industry, condiment industry, beverage industry, edible oil industry and so on.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Automatic Multifunction Filling Machine Line With Self-Cleaning System.

ACCURATE AND RELIABLE FILLING

INDEPENDENT CYLINDER QUANTIFICATION SYSTEM

Precisely control the speed of the cylinder to realize the precise position movement of the quantitative cylinder.With the Siemens programmable controller(PLC) and Taiwan Wen view touchscreen terminal, the filling process is accurate and reliable.

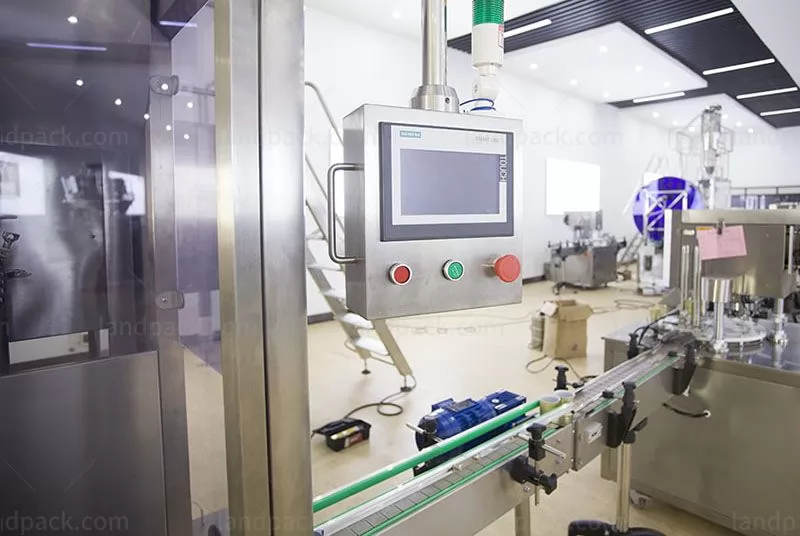

MULTI-LANGUAGE HUMAN-MACHINE COLOR OPERATION INTERFACE EASY TO SET PARAMETERS

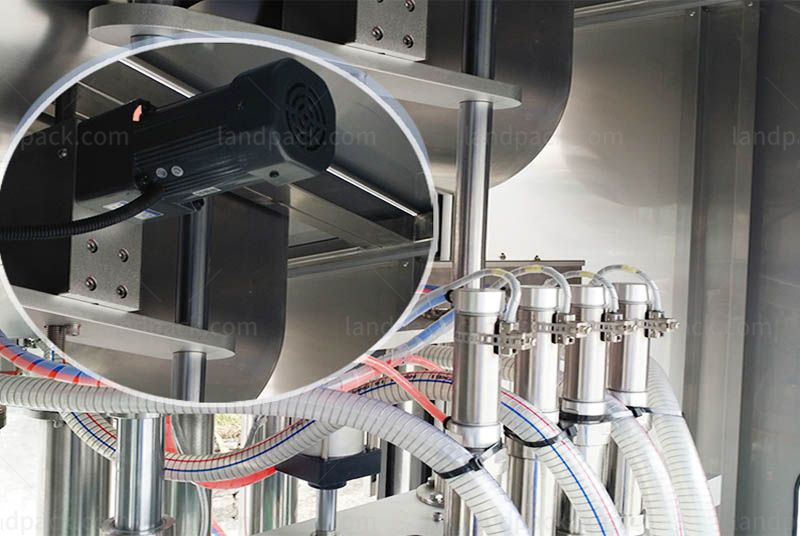

ELECTRIC ADJUSTMENT NOZZLE HEIGHT SAY GOODBYE TO THE ERA OF MANUALLY ADJUSTING THE HEIGHT OF THE BOTTLE

Through the precision gear transmission system, with the DC motor, the bottle type is switched by the high and low lifting buttons to make the use easier.

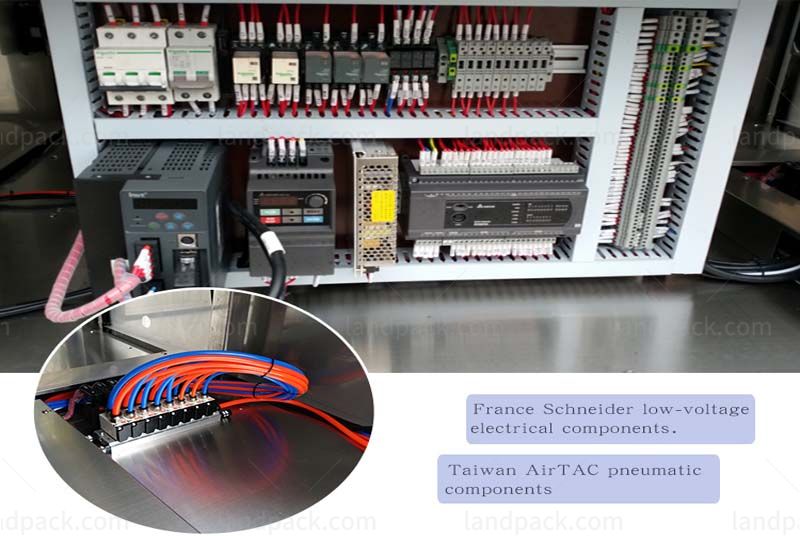

ELECTRICAL COMPONENTS USING WELL-KNOW BRANDS

STABLE AND DURABLE

Electrical components using well-known brands, we pay attention to every detail.

Model No.LF-YX 6-JS
Power3.0-3.5KW
VoltageAC380V/50Hz
Filling scope100-500ml  500ml-5L (optional)
Speed800-1270BPH (for 5L bottle)
Precision≤±0.5-1%ml(for 5L bottle)
Weight830KGS
Bottle height30-350mm
Bottle widthΦ10-Φ200mm
Dimension1700*1300*2100mm

After receiving your inquiry,We will send you the quotation as soon as possible.
