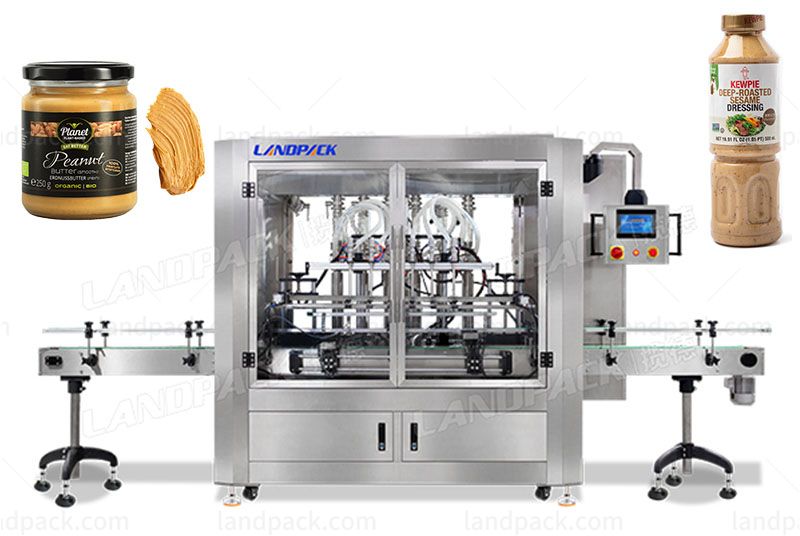

High Accuracy Piston Sauce Liquid Filling Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

This machine is suitable for filling liquid and paste like sauce,ketchup,juice,beverage,drinks,milk,makeup remover etc.It is widely used in drinks,cosmetics,daily chemical and pharmaceutical industries.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:应用图2.jpg

1.The touch screen make it easier to control and watch the working data in real time.The filling volume and filling speed can be controlled according to production needs.

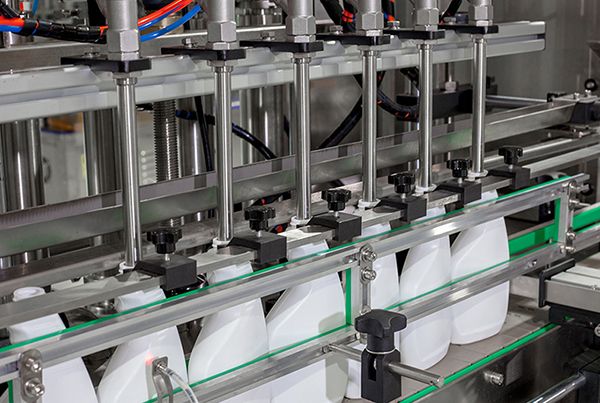

2.The pneumatic filling nozzle can ensure filling paste faster,it is with anti-dripping design which ensure the machine and production cleanliness.

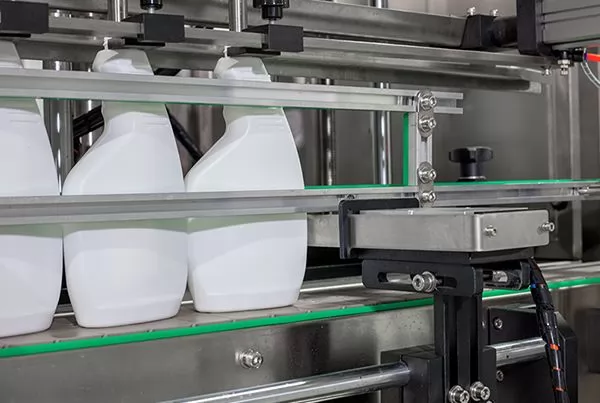

3.High quality conveyor belt can transfer bottles automatically , it is designed with protective guard which can make products will be transferred stably.

4.The machine is equipped with high quality electric eye,can detect passing by container accurately and realize the automated work,reduce the production error and improve working efficiency.

5.This machine is equipped with pneumatic diaphragm pump,it is with great power,can pump paste and liquid,make the machine work faster.

Model LD-LFZ-06
Voltage (V/Hz)
220V 380V
Filling heads
6 heads(Customizable)
Filling range
100-1000ml(Customizable)
Filling speed
About 16-24 bpm(Mainly depend on filling material)
Measurement accuracy
±1%
Drip trap
Available
Metering system
Piston pump
Application bottle
Circular, round, flat, square, etc
Dimention(L*W*H)
2m*1m*2.2m
Net weight
650kg

After receiving your inquiry,We will send you the quotation as soon as possible.
