Application:

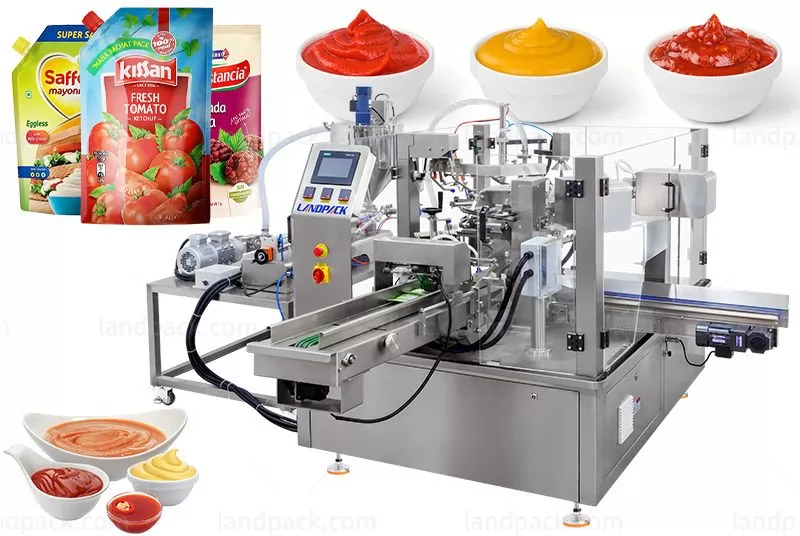

Ideal for packing liquids into various pre-made pouches, this machine is suitable for products such as sauces, rice vinegar, fruit juice, beverages, tomato sauce, peanut butter, jam, and pastes. Provides efficient, reliable filling for a wide range of liquid and semi-liquid products.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. 304 Stainless Steel Construction: Ensures food-grade quality, durability, and easy cleaning, ideal for filling food products.

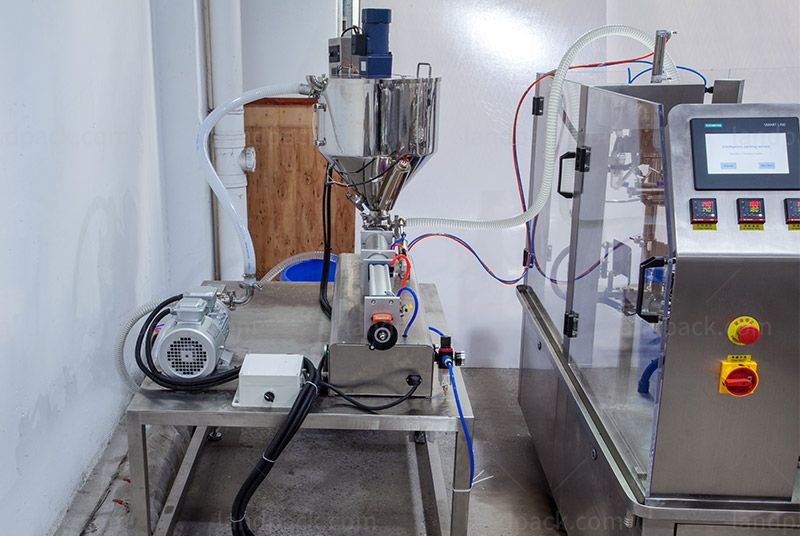

2. High-Precision Piston Pump: Provides accurate measurements, making it easy to achieve the desired target weight consistently.
3. High-Speed Packaging: Capable of fast processing to meet large daily production demands.
4. Reliable Electrical Components: Equipped with top-brand electrical appliances, extending the machine's service life.
5. Adjustable Bag Size: Easily adjustable via the screen, reducing setup time and enhancing production efficiency.
Workflow:
1. Horizontal bags feeding
2. Printing date & open the bag
3. Automatic filling
4. Blow
5. Tidy up the bag
6. Sealing the bag
7. Second sealing
8. Output for finished products
| Model | LD-8200/LD-8230/8300 |
| Packing material | spout bags, 3-side, four edge-sealing bags, self-reliance bags, handbags, zipper bags, compound bags, etc |
| Size | W: 100-300mm, L: 100-450mm |
| Filling range | 10-2500g (Depending on type of products) |
| Packing speed | 25-60 bags/min (speed is determined by the product filling quantity) |
| Average precision | ≤ ±1% |
| Total power | 2.5KW |
| Dimensions | 1900*1570*1700mm (L*W*H) |
| Workflow | giving bag→coding →opening →filling 1 →filling 2→auxiliary→exhaust→heat sealing→forming and output product |
| Main standard parts | 1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system |
After receiving your inquiry,We will send you the quotation as soon as possible.
