Application:

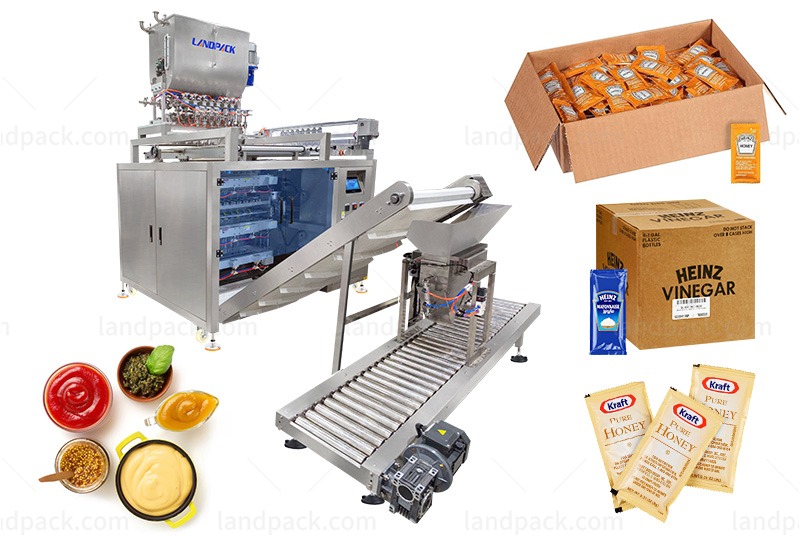

This sachet cartoning packing machine is ideal for automatically boxing various paste and viscous liquid sachets, such as ketchup, jam, chili sauce, honey, pizza sauce, peanut butter, tartar sauce, chocolate sauce, cream, liquid butter, juice, shower gel, shampoo, and more. It ensures fast, clean, and reliable packaging for food, cosmetic, and personal care products.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Air-Shaft Roll Film Device – Ensures quick and stable film loading.
2. Multi-Heads Ribbon Date Printer – Prints date info on each lane with clarity.

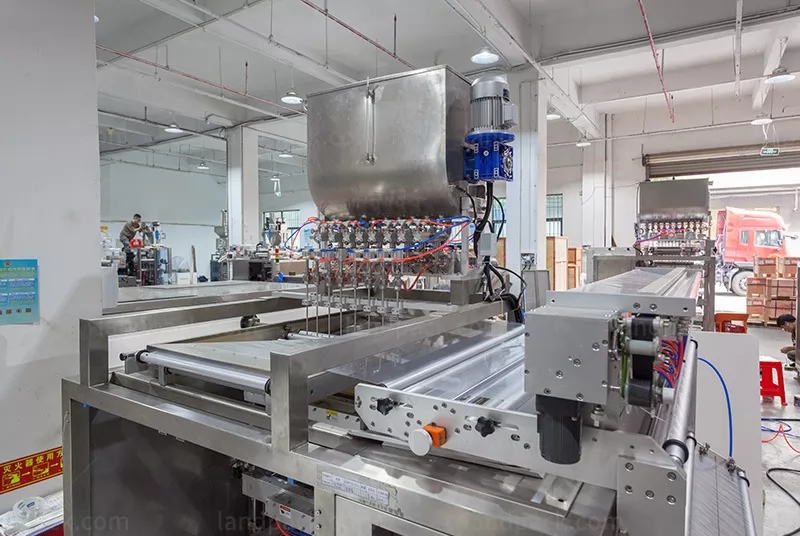

3. Material Tank with Level Sensor – Automatically detects material levels.
4. Integrated Stirring & Heating – Keeps materials warm and evenly mixed.
5. Anti-Leak Filling Nozzle – Prevents dripping during the filling process.
6. Adjustable Piston Metering Pump – Delivers precise volume control for various product types.
Workflow:

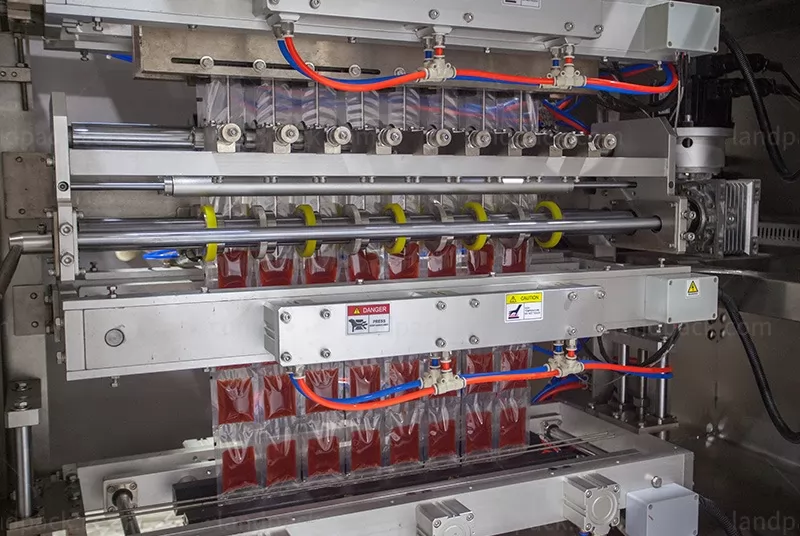

1. Pulling Film
2. Filling
3. Vertical Sealing
4. Horizontal Sealing
5. Cutting
6. Outlet with Counting Sensor
7. Detecting Empty Box
Model | LDSF-480L | LDSF-720L | LDSF-1200L |
| Track Number | 4-6 Track | 4-10 Track | 4-12 Track |
| Filling Method | 1. Piston pump; 2. Peristaltic Pump | ||
| Capacity | Max.40 cycles/min | ||
| Sachet Size | L: 45-120mm; W: 38-60mm | L: 45-120mm; W: 38-90mm | L: 45-120mm; W: 38-120mm |
| Film Width & Thickness | Max.480mm; 0.07-0.1mm | Max.720mm; 0.07-0.1mm | Max.960mm; 0.07-0.1mm |
| Sealing Type | 4 sides sealing | ||
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa, 0.8m³/min, 2.8kw | 0.8 mpa, 0.8m³/min, 4.1kw | 0.8 mpa, 0.8m³/min, 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
