Application:
This automatic sauce filling machine line is designed to handle a wide range of liquid and viscous products, offering a reliable and efficient solution for bottle and jar packaging. It is suitable for: sauces, jams, honey, and condiments, paste and thick liquid products, ready-to-eat and food processing applications, cosmetic creams and daily chemical products. Various liquid products requiring precise filling and sealing.
Package Type:
Suitable for a wide range of bottles and jars, including glass bottles, plastic bottles (PET, PE, PP), and containers in round, square, or custom shapes. Compatible with screw caps, press caps, and lug caps, with adjustable settings for different bottle sizes and filling volumes.

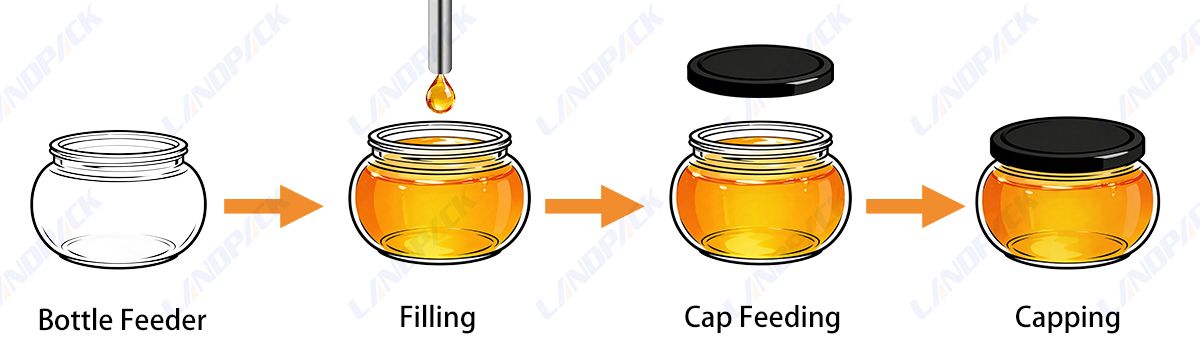

Workflow:
1. Bottle Feeding → 2. Filling → 3. Cap Feeding → 4. Capping

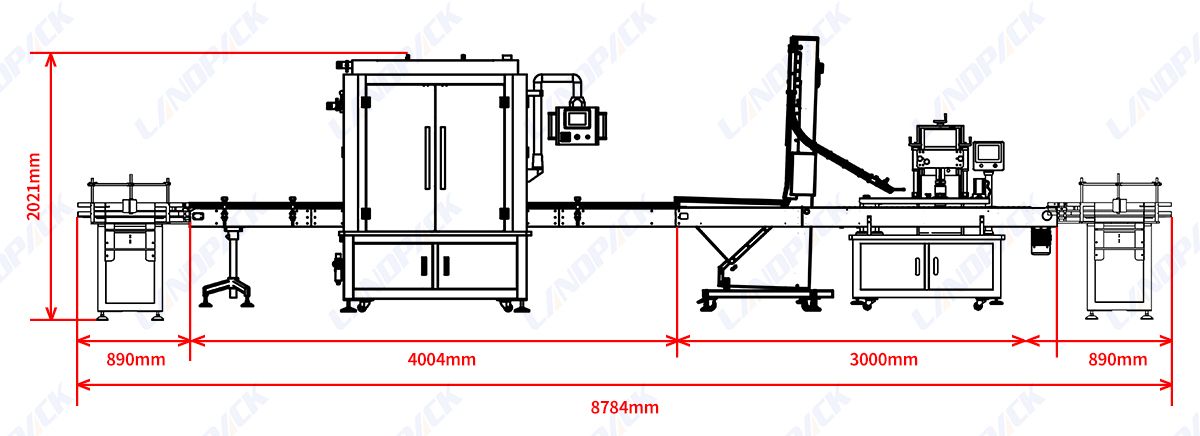

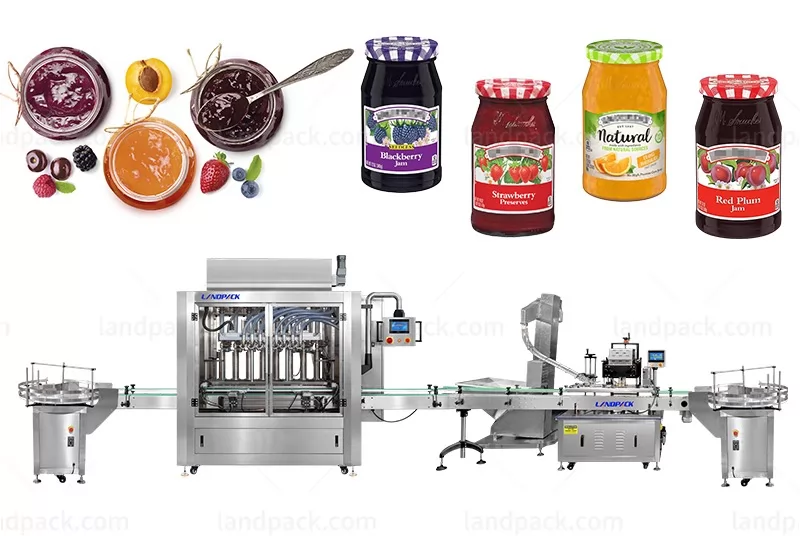

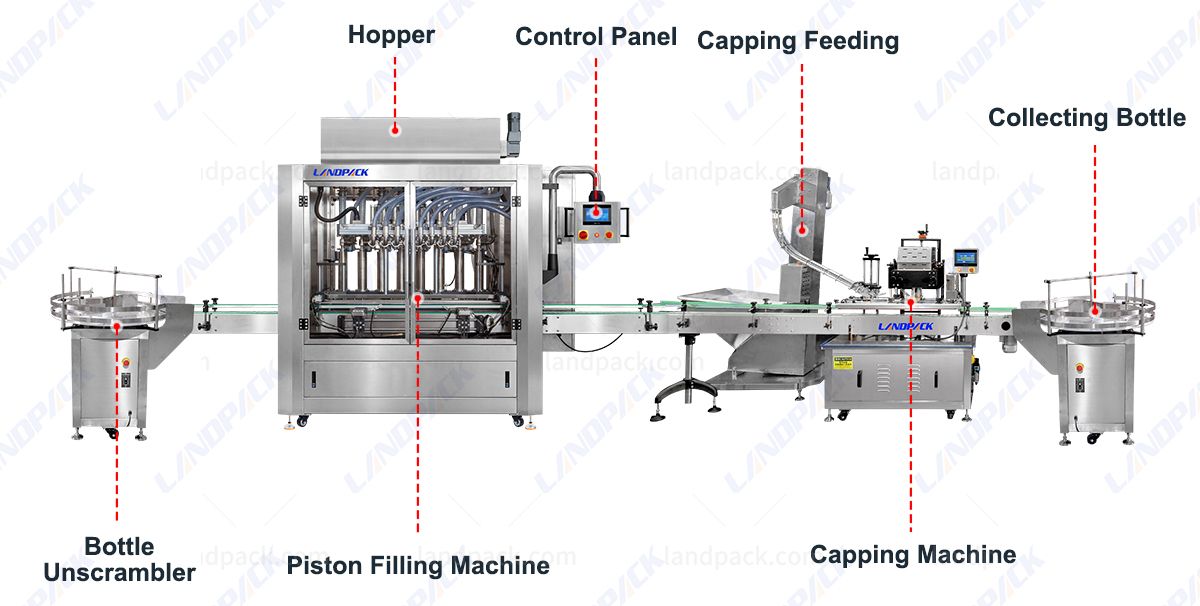

Machine Structure Overview:
1. Bottle Unscrambler, 2. Hopper, 3. Piston Filling Machine, 4. Control Panel, 5. Capping Feeding, 6. Capping Machine, 7. Collecting Bottle
Feature:
1. Integrated filling and capping system for streamlined production.

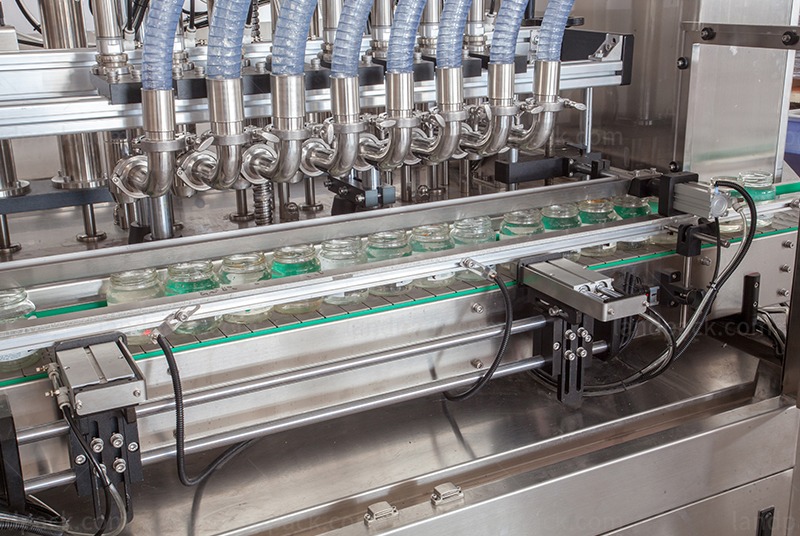

2. Piston filling ensures stable performance and accurate dosing.
3. Handles both liquid and high-viscosity products smoothly.
4. Adjustable settings for different container sizes.

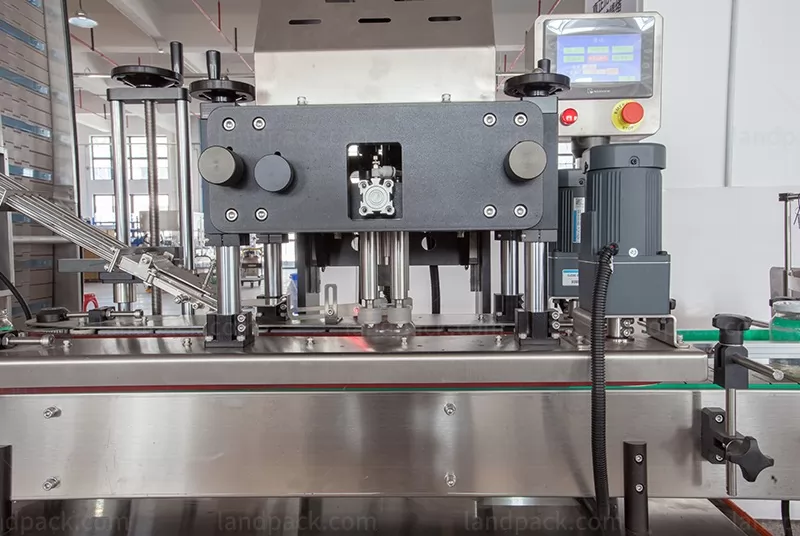

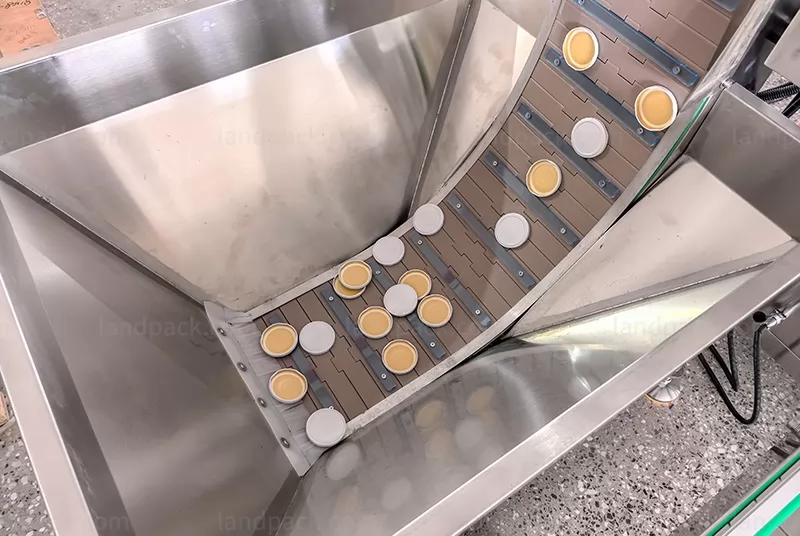

5. Reliable cap feeding and consistent sealing quality.
6. User-friendly control system for quick operation.
7. Hygienic stainless steel structure for food-grade applications.
8. Flexible layout to fit different production lines.
9. Easy maintenance and convenient cleaning design.
10. Expandable with labeling, coding, and packing units.
| Bottle Liquid Filling Machine | ||||
| Model | LFZ-04 | LFZ-06 | LFZ-08 | LFZ-10 |
| Filling Range | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) | 50-1000ml (customizable) |
| Production Speed | <15-25 bottles/min | <20-35 bottles/min | <30-40 bottles/min | <40-50 bottles/min |
| Measurement Accuracy | ±1% | ±1% | ±1% | ±1% |
| Power | 2KW | 2.5KW | 3.5KW | 5KW |
| Voltage | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz | 220V, 50Hz |
| Air consumption | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa | 0.6-8Mpa |
| Weight | 600kg | 650kg | 800kg | 800kg |
| Dimension | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) | L4000*W1320*H2090(mm) |
| Automatic capping machine | |||
| Model | LFX-JX-01(Four wheel capping) | LFX-GS-150(Eight wheel capping) | LFX-GS-250(Six wheel capping) |
| Capacity | 20-50Bottles/min | 40-100Bottles/min | 30-80Bottles/min |
| Bottle cap diameter | Φ22mm-Φ80mm（Could be customized） | Φ18mm-Φ80mm（Could be customized） | Φ18mm-Φ80mm（Could be customized） |
| Bottle diameter | Φ35mm-Φ140mm（Could be customized） | Φ35mm-Φ140mm（Could be customized） | Φ35mm-Φ140mm（Could be customized） |
| Bottle sealing height | 38mm-300mm（Could be customized） | 38mm-300mm（Could be customized） | 38mm-300mm（Could be customized） |
| Power | 1.5KW | 2KW | 1.5KW |
| Voltage | 220V、50HZ | 220V、50HZ | 220V、50HZ |
| Air pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.5-0.7Mpa |
| weight | 250kg | 350kg | 300kg |
| Dimensions | H3000*W800*L1600mm | H3120*W1544*L2122 | H3100*W1244*L2122 |
After receiving your inquiry,We will send you the quotation as soon as possible.
