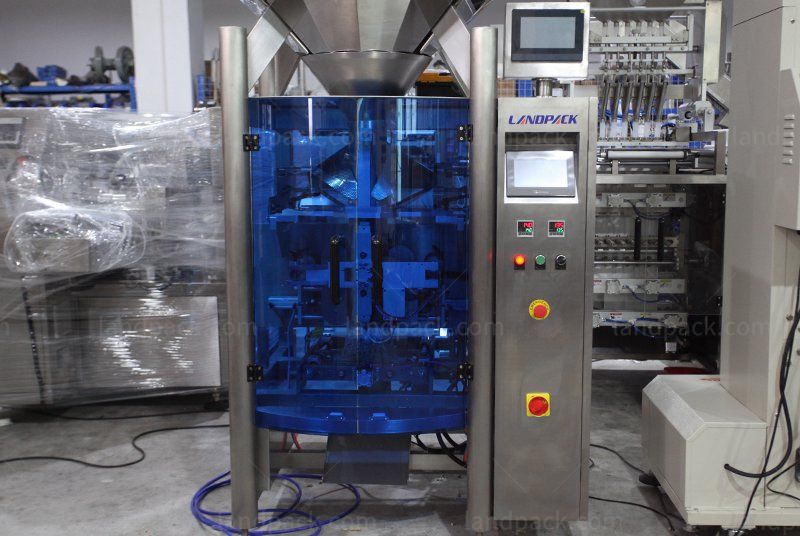

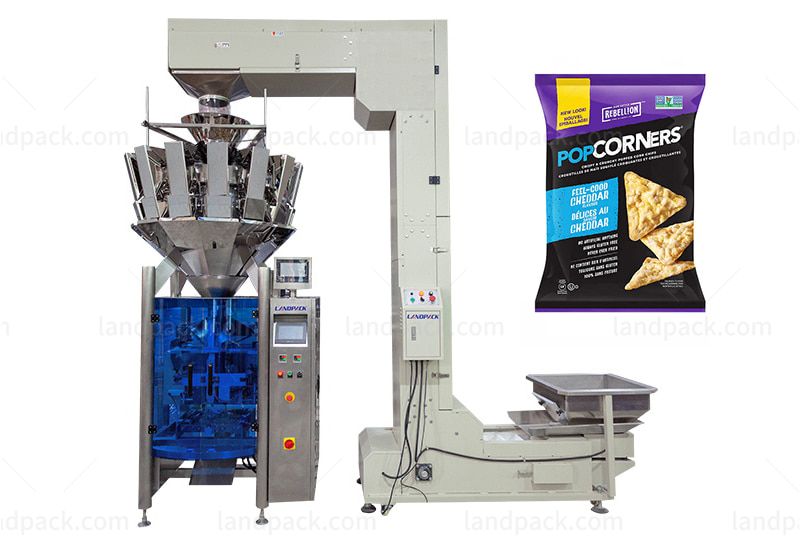

Low Cost All-In-One Snacks Weighing And Packing Machine LD-420Y

  • Application
  • Description
  • Parameter
  • Video

Application:
Suitable for packing and weighing many kinds of products such as: snacks, puffy food, shrimp roll,peanut, shrimp chips, popcorn, cornmeal, seed and sugar,etc. which shape is roll, slice and granule.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Low Cost All-In-One Snacks Weighing And Packing Machine LD-420Y

PLC computer control system.PLC from Janpan or Germany;

Big touch From Tai wan . Easy to operate and control the machine;

High precise positioning with servo film transporting systerm;

Servo motor from Germany Seimens to ensure stable;

Warn protection function;

The machine will automatically complete all packaging processes from measuring, feeding, filling, Printing, finished bag;

The way of bag making: the machine can make pillow-type bag and standing bag according to customer's requirements.

Main main parameter
Packing speed
10-80 bag/min
Bag size
(Width)80-200mm (Length)50-300mm
Bag making mode
Pillow-type bag, standing bag, punch hold and connect
ange of measuring
2000ml
The maximum width of packing film420mm
Thickness of film0.04-0.10 mm
Air consumption400L/min 0.6×105Pa
Main power/voltage4.0 KW/220V 50-60Hz
Dimension
1720×1030×2254mm
The weight of switchboard
450Kg

After receiving your inquiry,We will send you the quotation as soon as possible.
