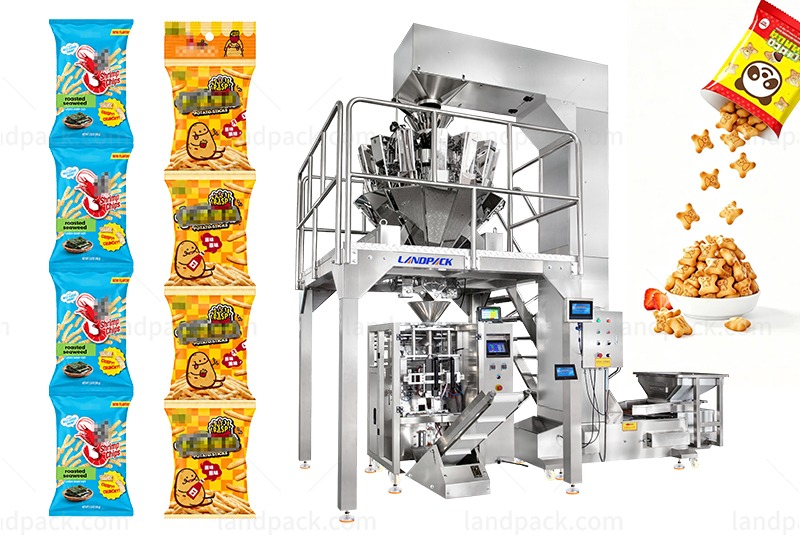

Automatic Snack Packing Machine Vertical Weighing Packing Machine with Coding Machine

Application:
It can be used in confectionery, snack food, nut processing and dried fruit production lines where automatic feeding, weighing, bag forming, coding, filling and sealing are required. Such as gummy candy, hard candy, jelly candy, chocolate beans, mint candy, mixed nuts, peanuts, almonds, cashews, pistachios, raisins, dried blueberries, dried cranberries, mini biscuits, crackers, puffed snacks, cereal balls and snack mixes.

Package Type:
Suitable for laminated roll film formed into back-seal or pillow-style pouches, with optional continuous linked-bag and hanging-hole configurations.

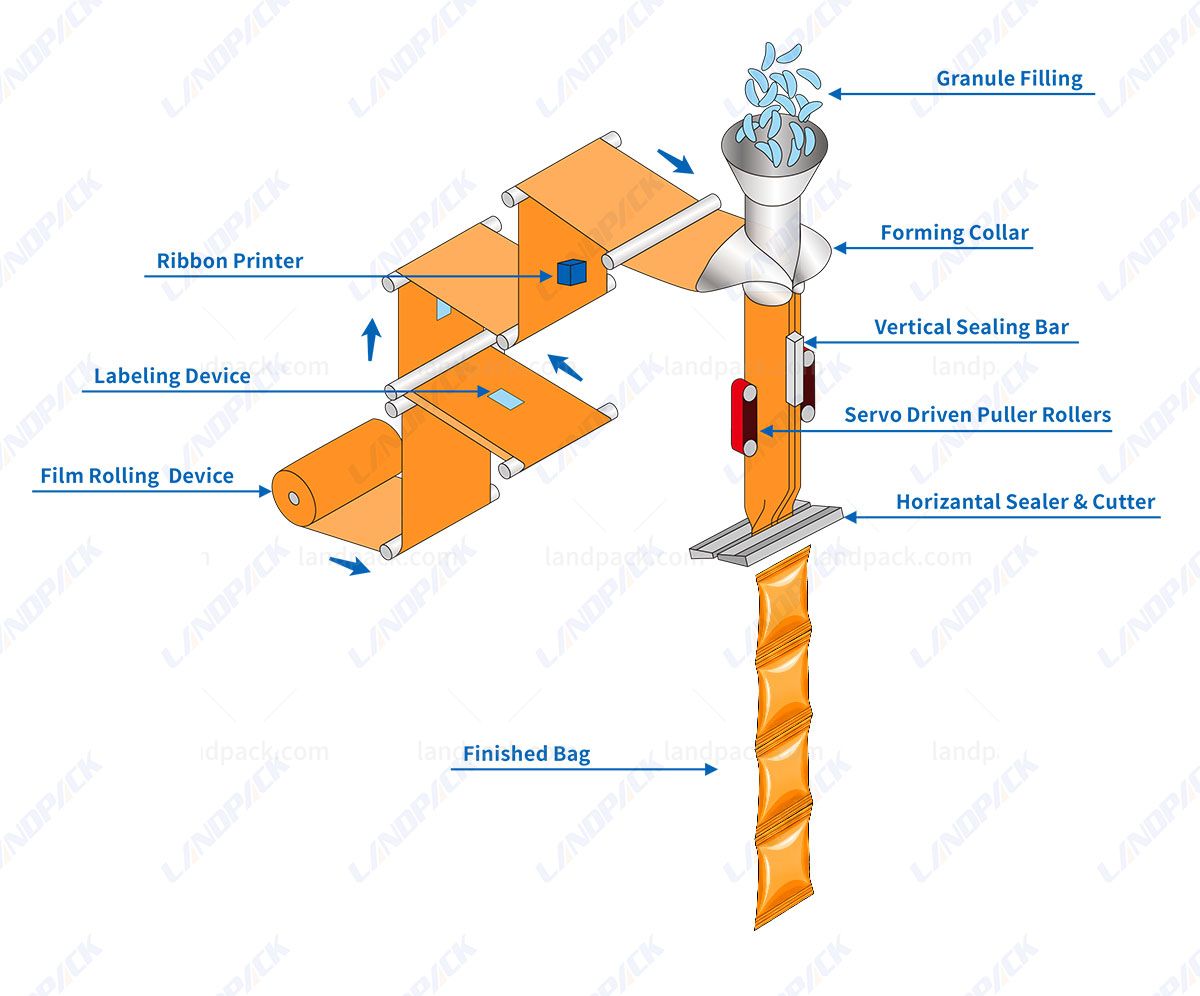

Workflow:
1. Material Feeding by Z-Type Elevator. → 2. Automatic Weighing by 14-Head Multihead Weigher. → 3. Film Unwinding and Bag Forming. → 4. Thermal Transfer Coding. → 5. Product Filling. → 6. Vertical Sealing. → 7. Servo-Controlled Horizontal Sealing and Cutting. → 8. 5-Linked Pouch Forming and Hanging-Hole Punching. → 9. Finished Product Output.

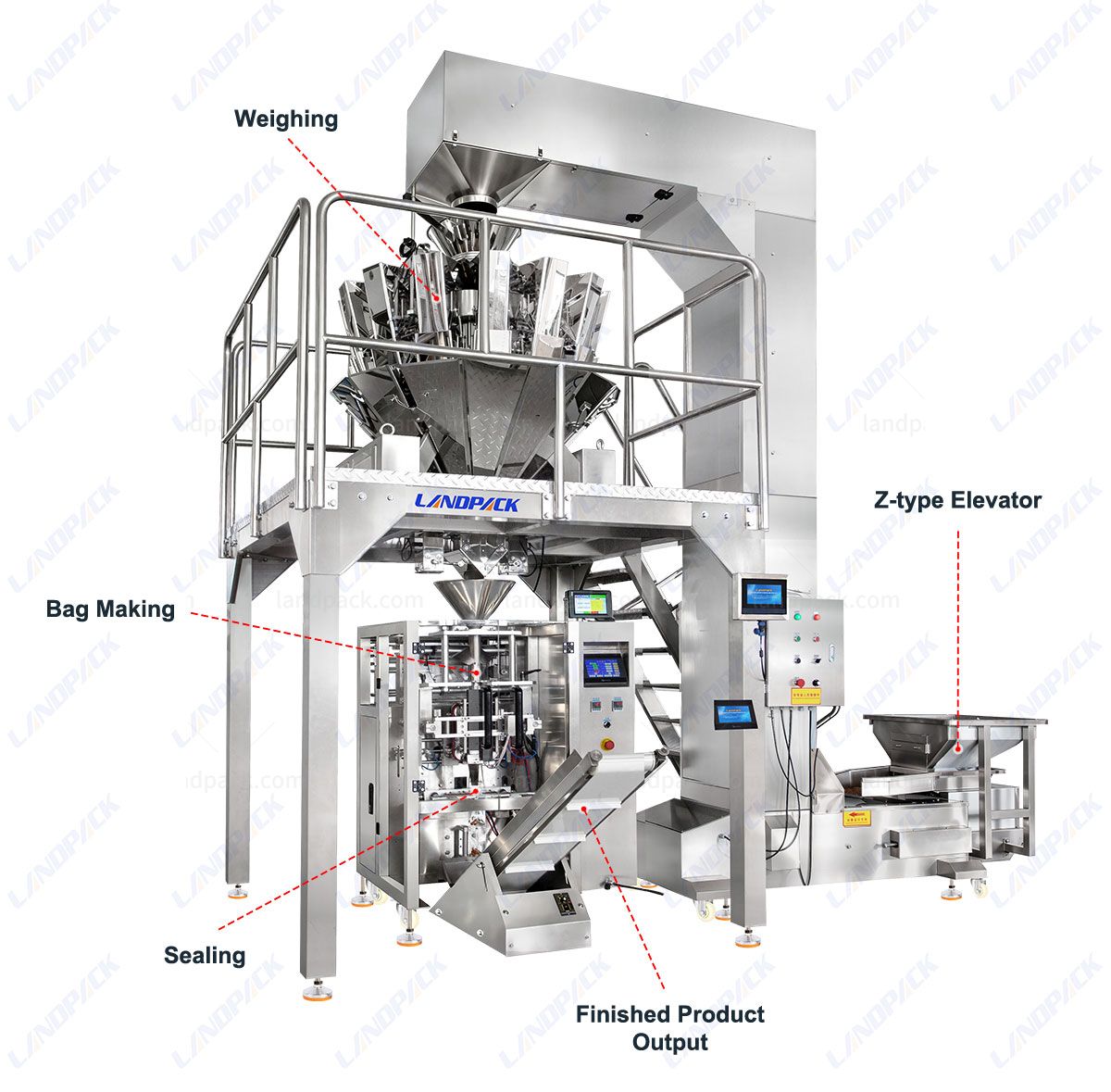

Machine Key Components:

Features:
1. The 14-head 1.6L multihead combination weigher measures candy, nuts, dried fruit and other granular products automatically for continuous packaging.

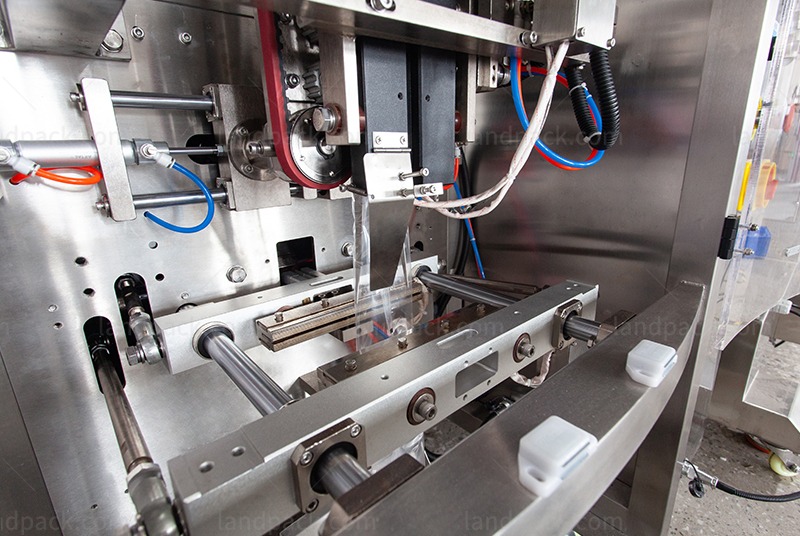

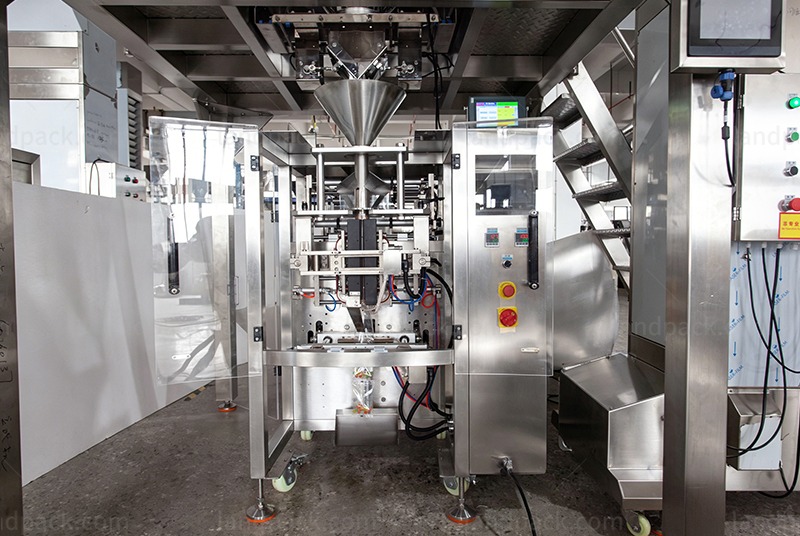

2. The LD-420A vertical packing machine completes film forming, filling, vertical sealing, horizontal sealing and cutting in one integrated process.
3. Dual-servo control works with the PLC and HMI to coordinate film pulling and horizontal sealing during production.
4. Automatic film deviation correction helps keep the roll film aligned during continuous bag forming.

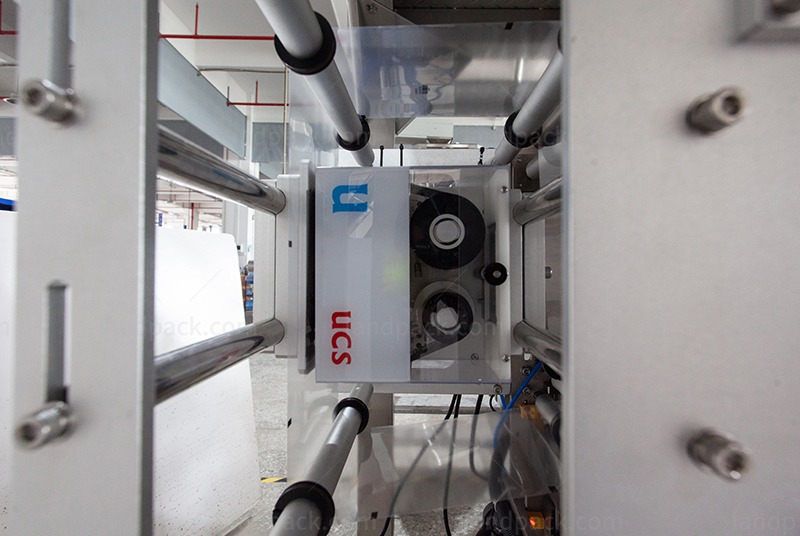

5. The thermal transfer printer can print production dates, batch information, barcodes, QR codes and other variable information on the packaging film.
6. The machine can be customized for continuous linked-pouch production, including 5-linked pack formats and hanging-hole punching.
7. The main machine frame uses 304 stainless steel construction for easier cleaning around the product handling and packaging area.
