Application:

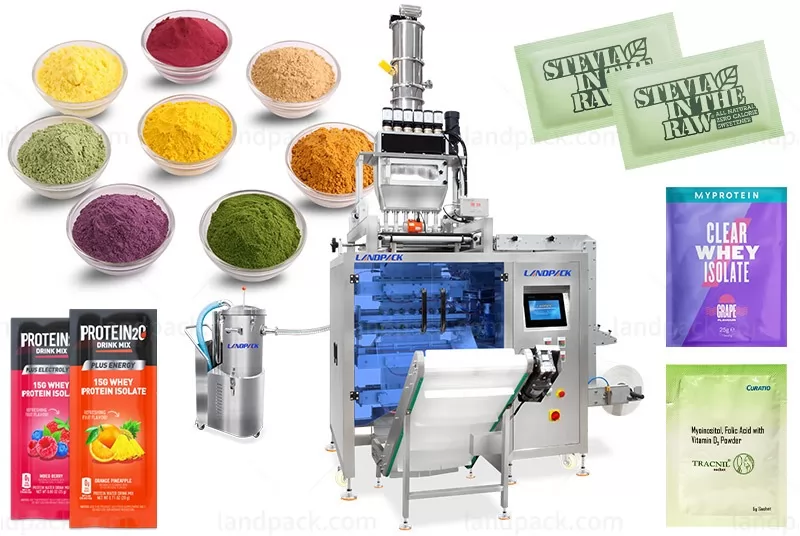

This multi-lane powder sachet packing machine integrates bag forming, measuring, filling, sealing, and easy-tear notch creation in one efficient system. It is ideal for packaging in the food, cosmetics, and pharmaceutical industries, handling products such as milk powder, washing powder, protein powder, flour, tea powder, bakery powder, spice powder, coffee powder, and medical powder with precision and consistency.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Fully automatic measuring and filling system for efficient packaging.
2. Ultra high-speed operation: 150–180 bags per minute.
3. Precision filling with accuracy within ±1g.
4. Ideal for small granules, powders, or pharmaceutical products.
5. PLC touch screen control ensures easy and stable operation.
6. Designed for mass production with consistent performance.
7. Reduces labor costs while maximizing output.
8. Built with stainless steel for hygiene and durability.
Workflow:

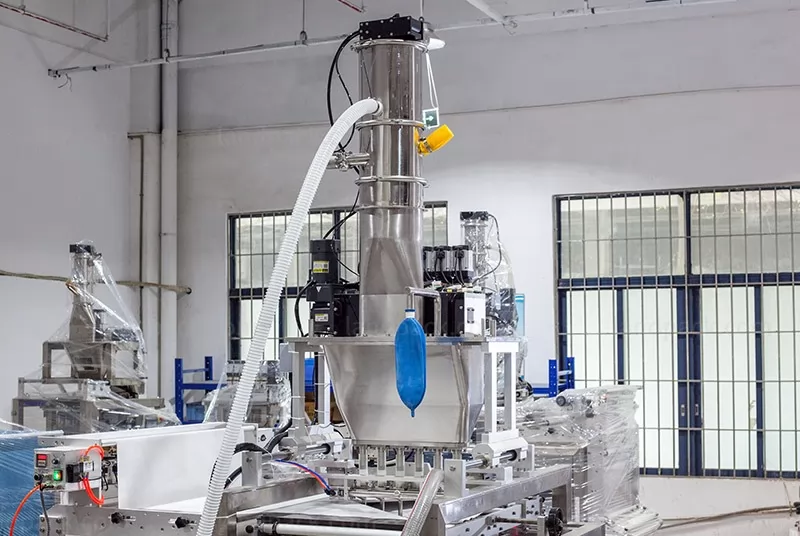

1. Vacuum feeder is more hygienic conveying of materials
2. Air sharft roll film device
3. Date coding

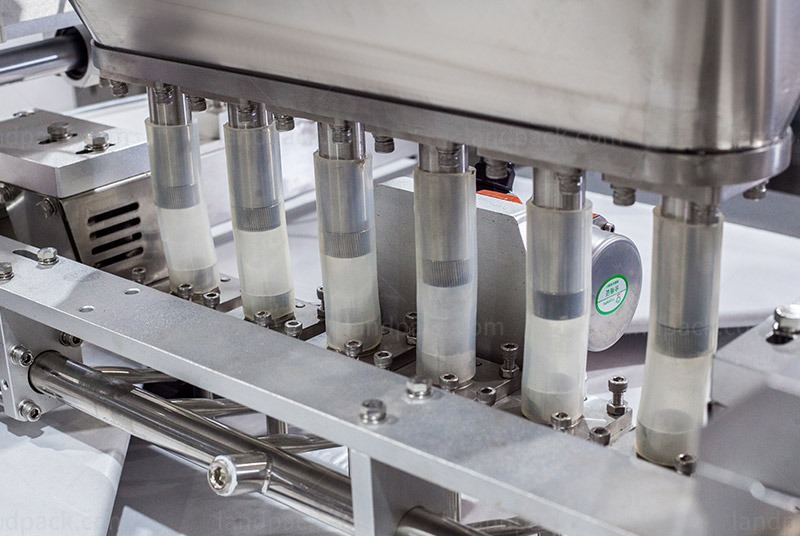

4. Auger screws measuring system
5. Pull packing film and sealing
6. Dust remove → Filling
7. Cutting and output the finished product
Model | LDFS-480D | LDFS-720D | LDFS-960D | LDFS-1200D |
Track Number | 4-6 Track | 4-8 Track | 4-10 Track | 4-12 Track |
Filling Method | Auger filling by servo motor | |||
Capacity | 20-40 bags/cut | |||
Sachet Size | L: 45-120mm; W: 50-60mm | L: 45-120mm; W: 50-90mm | L: 45-120mm; W: 50-120mm | L: 45-120mm; W: 50-150mm |
Film Width & Thickness | Max.480mm; 0.07-0.1mm | Max.720mm; 0.07-0.1mm | Max.960mm; 0.07-0.1mm | Max.1200mm; 0.07-0.1mm |
Sealing Type | 4side sealing | |||
Cutting Type | 1. Straight cutting, 2. Zig-zag cutting, 3. Continous cutting | |||
Air&Power | 0.8MPA, 0.8m³/min; 2.8kw | 0.8MPA, 0.8m³/min, 4.1kw | 0.8MPA, 0.8m³/min, 5.5kw | 0.8MPA, 0.8m³/min, 6.5kw |
DIM&WT | 950*1470*1750mm, 300kg | 1153*1654*1750mm, 400kg | 1415*1686*2130mm, 500kg | 2220*2210*2600mm, 800kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
