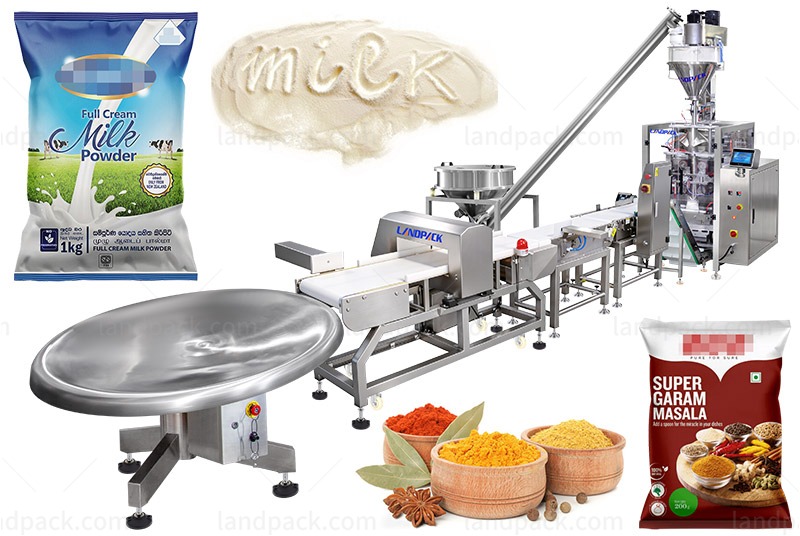

Automatic Spice Packing Machine with Metal Detection and Weight Inspection

Application:
It can be used in food, dairy, seasoning, baking powder and grain powder production lines where automatic powder feeding, auger dosing, vertical bag forming, sealing, metal detection and weight checking are required. Such as wheat flour, corn flour, rice flour, cake flour, bread flour, full cream milk powder, skim milk powder, infant milk powder, whey powder, curry powder, chili powder, masala powder, pepper powder, soup powder, starch powder, cereal powder and instant drink powder.

Package Type:
Suitable for roll film formed into pillow bags, back seal bags or gusset bags for fine powder products.

Workflow:
Auger Measuring → Bag Forming → Powder Filling → Vertical Sealing → Metal Detection → Weight Checking → Output Collecting Turntable

Machine Structure Overview:

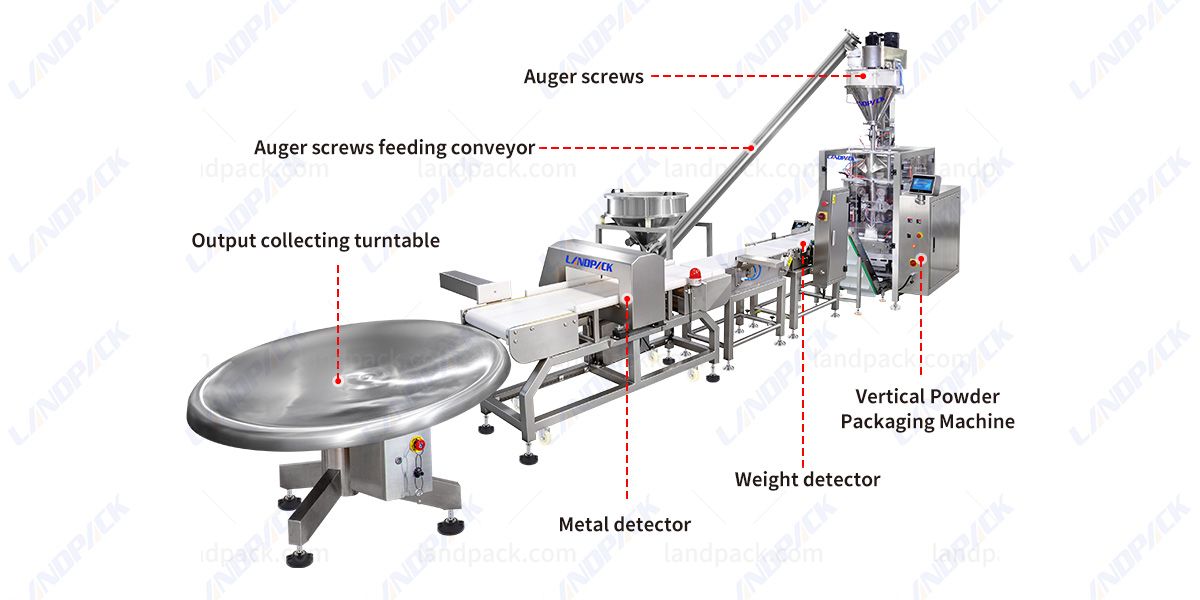

1. Auger screws  2. Auger screws feeding conveyor  3. Vertical powder packaging machine  4. Weight detector  5. Metal detector  6. Output collecting turntable

Feature:
1. Auger screw feeding conveyor transfers powder automatically to the dosing hopper for continuous packaging operation.
2. Auger filling system supports measured filling for flour, milk powder, spice powder and other fine powder materials.
3. Anti-static device helps reduce powder adhesion on the film or sealing area during bag forming and filling.

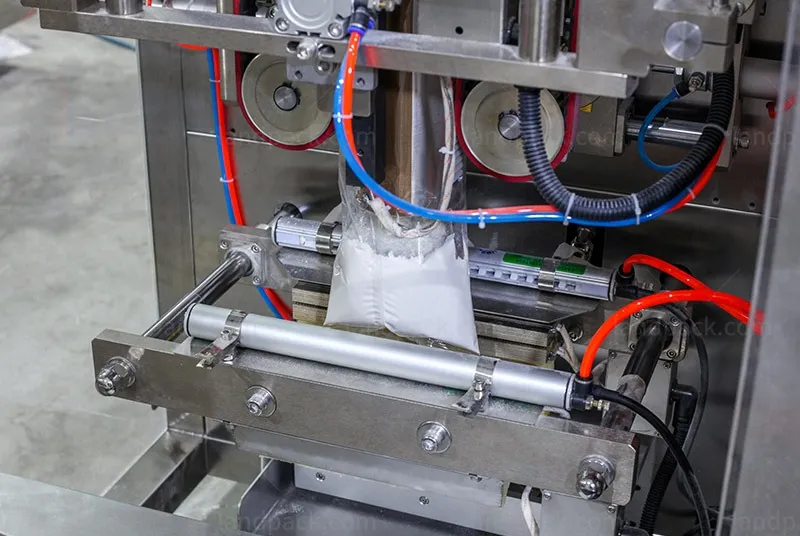

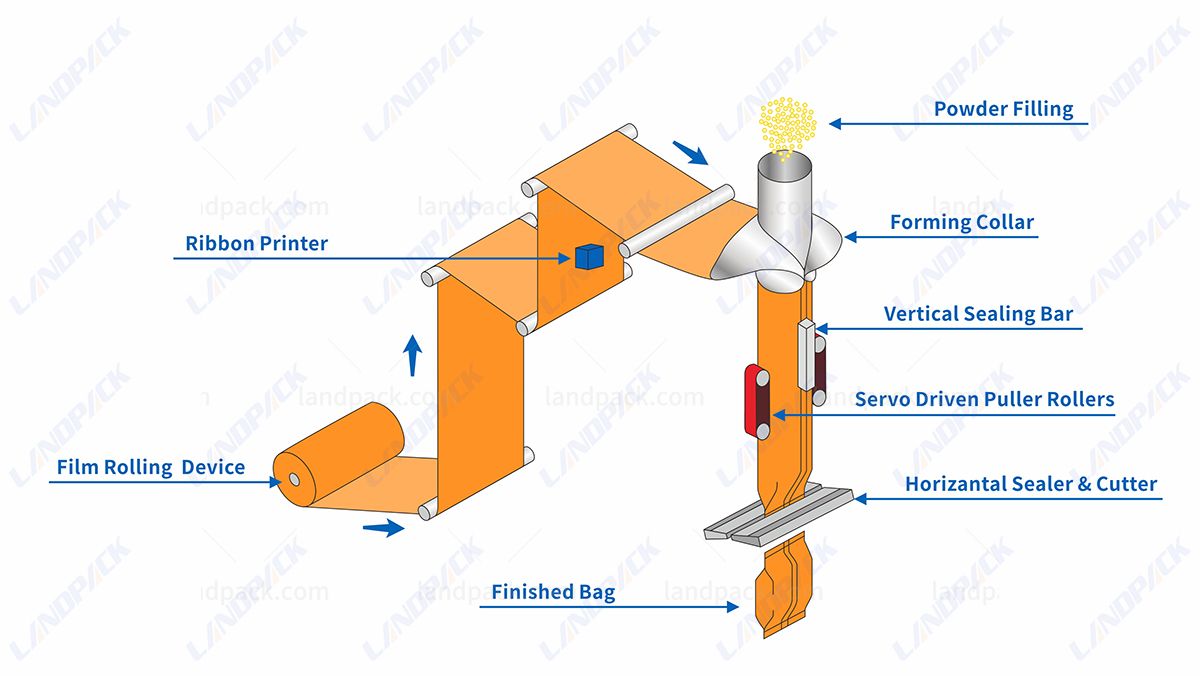

4. Vertical form fill seal structure completes film unwinding, bag forming, filling, sealing and cutting in one process.
5. Metal detector checks finished bags for possible metal contamination before final collection.

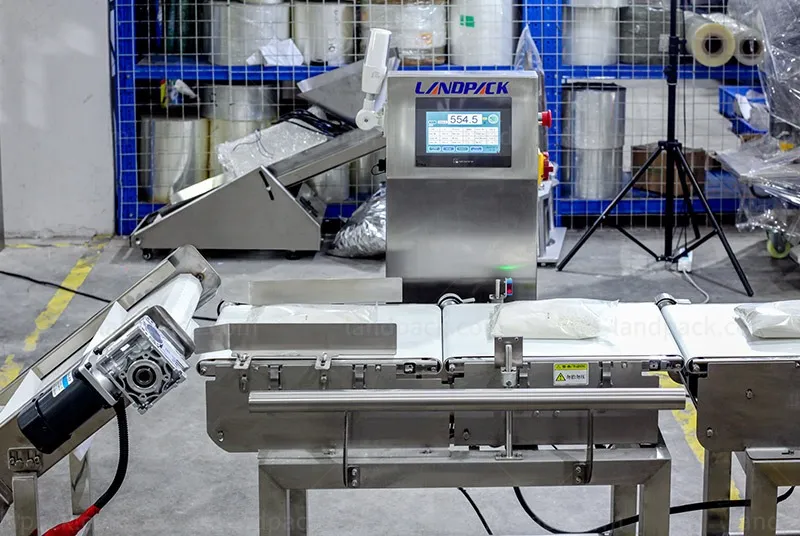

6. Checkweigher verifies the finished bag weight and helps remove underweight or overweight packs from the line.
7. Output collecting turntable gathers finished bags for easier manual picking, sorting or connection with downstream equipment.
