Automatic Vertical Spice Seasoning Packing Machine

Application:
This machine is widely used for granular seasoning packaging, making it ideal for vegetable seasoning bits, mixed spice blends, bouillon granules, chili flakes, soup-base granules, and dried vegetable flakes. It is also suitable for instant noodle condiment packs, ready-meal garnish sachets.

Package Type:
The LD-420A vertical packaging machine forms back sealing pouches, pillow pouches, and sachets with high consistency and stability, making it ideal for lightweight seasoning package like 3g vegetable seasoning.

Suitable Products:
With automated lifting, continuous metering, and efficient sealing, the machine significantly improves throughput, reduces manual handling, and ensures uniform package quality for large-scale seasoning production.
- Seasonings & Condiments: vegetable seasoning, spice blends, bouillon granules, chili flakes, soup base granules
- Dehydrated Ingredients: dried vegetable flakes, mixed dried greens, dehydrated onion/garlic flakes
- Foodservice Portion Packs: sugar, salt, msg

Workflow:
This is automatic vertical packing machine for seasoning products. Here's how it works step-by-step:

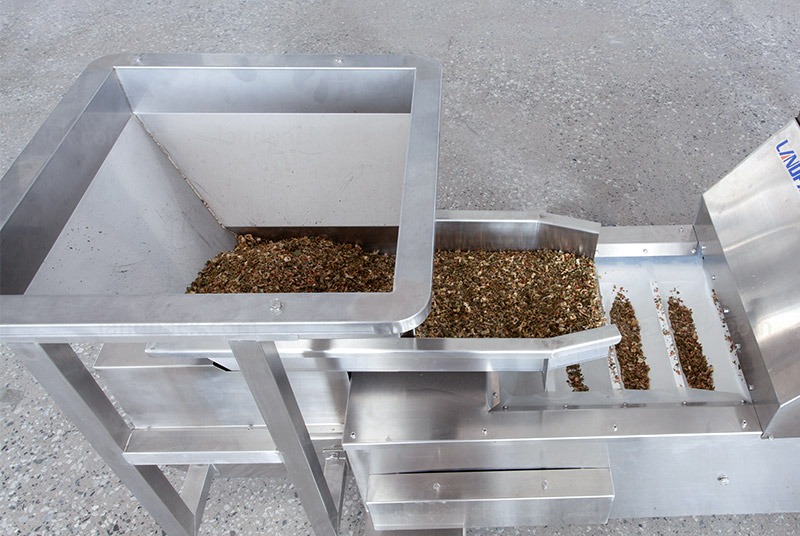

1. Material Feeding – The Z-type conveyor lifts the granular seasoning materials from the hopper to the multihead weigher automatically.

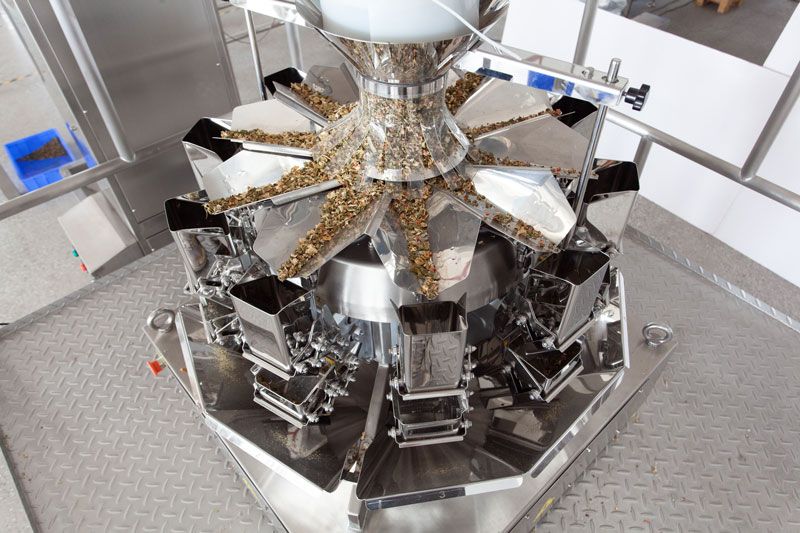

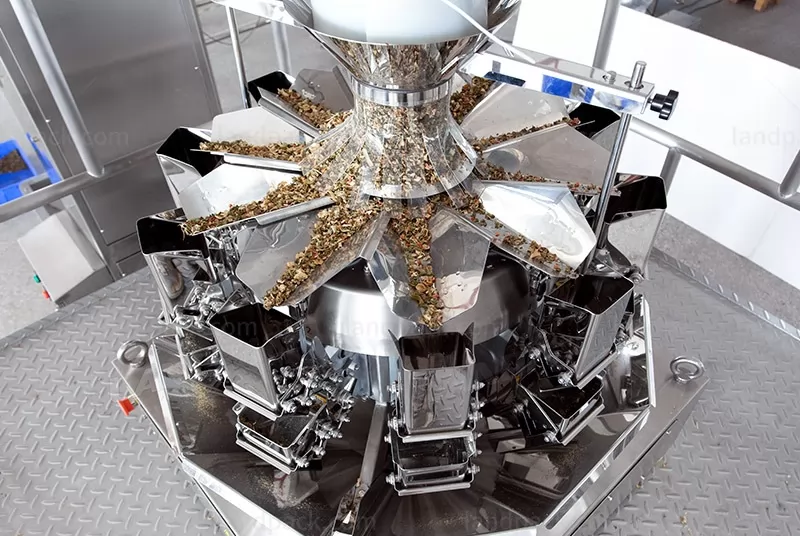

2. Precision Weighing – The 10-head 0.5L combination weigher calculates the optimal weight combination for each 3g portion.

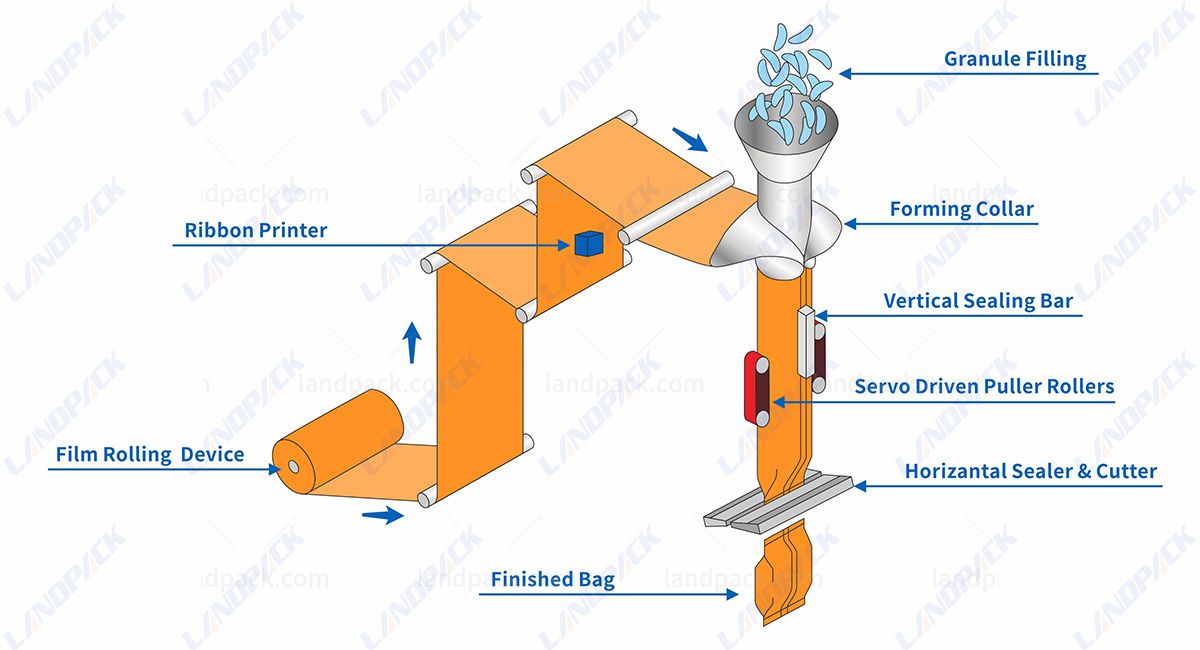

3. Film Unwinding & Bag Forming – The machine pulls the film, shapes it into a back-sealing pouch, and prepares it for filling.
4. Bag Sealing Bottom & Vertical Edge – The machine seals the vertical back seam and bottom seam to create a fully formed pouch ready for dosing.
5. Filling – The weigher discharges the measured 3g vegetable seasoning into the pouch smoothly.
6. Final Sealing & Cutting– The top of the bag is sealed tightly, then cut off as a finished sachet.
7. Finished Product Discharge – Completed seasoning pouches are discharged onto the conveyor for easier collection, counting, or downstream packing.

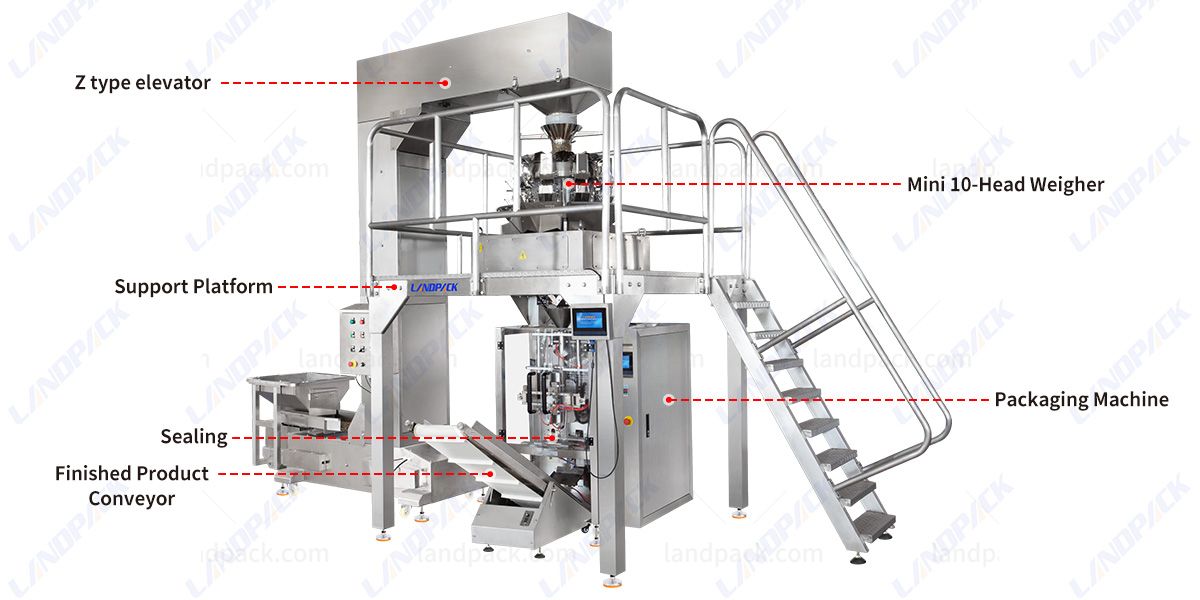

Machine Key Components:
1. Z-type elevator
2. Support Platform

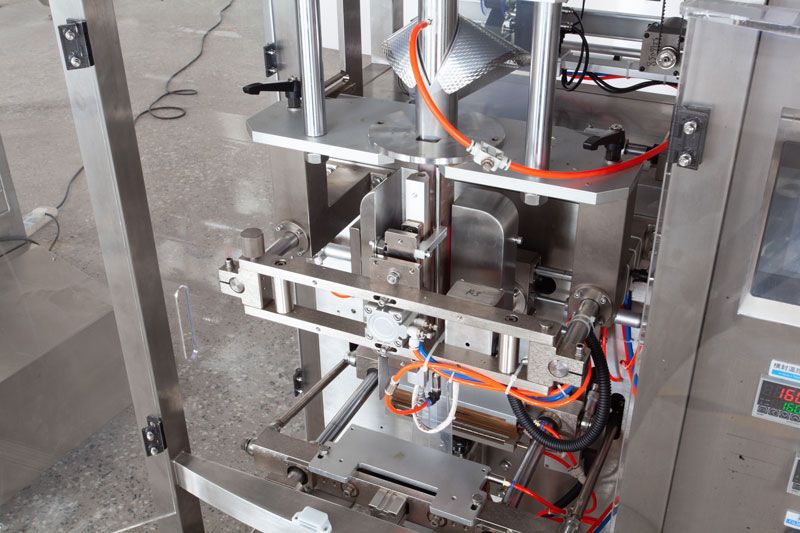

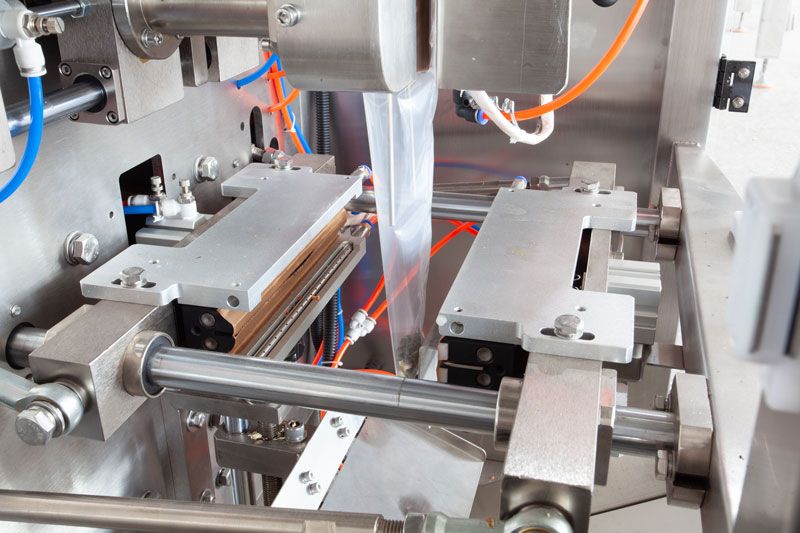

3. Sealing Device

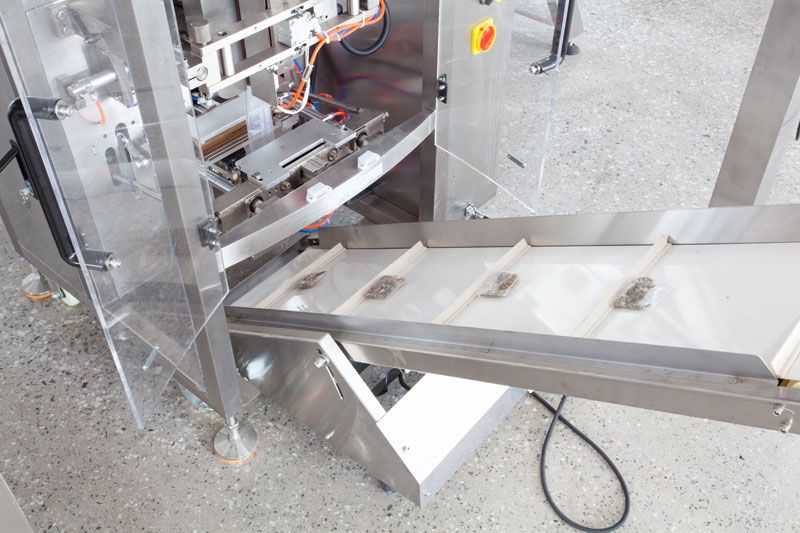

4. Finished Product Conveyor
5. Mini 10-Head Weigher

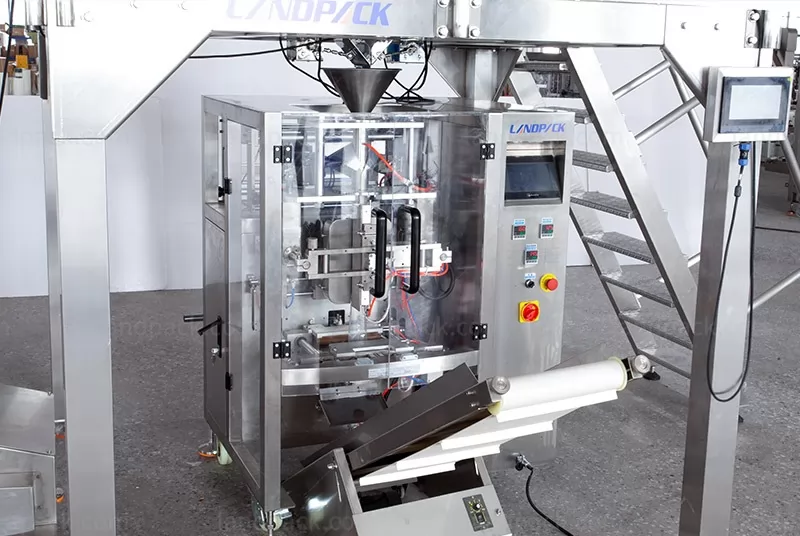

6. Packaging Machine

Features:

High-Precision Weighing System Equipped with a 10-head 0.5L combination weigher, the machine ensures ultra-accurate dosing for small packets like 3g seasoning, reducing material giveaway and improving cost efficiency.
	Stable Back-Seal Vertical Packaging The LD-420A forms consistent pillow pTouches with strong back seals, providing excellent protection and a clean, uniform appearance suitable for high-volume seasoning production.
Automated Z-Type Feeding The Z-type conveyor automatically lifts materials to the weigher, ensuring continuous feeding while minimizing manual labor and preventing material interruption during operation.

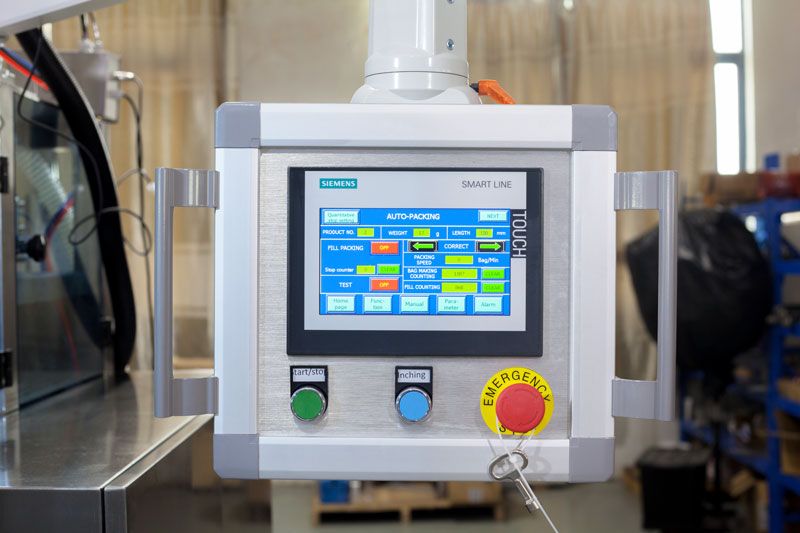

	User-Friendly PLC & Touchscreen Control A smart PLC control system with a touchscreen interface allows quick adjustments, easy status monitoring, and simplified operation, even for new or untrained workers.
Compact Design with High Efficiency The integrated vertical packing structure saves floor space while delivering fast production speeds, making it ideal for small-sachet seasoning lines requiring stable output.
	Reliable Sealing & Hygienic Construction High-quality sealing components ensure firm, leak-free seals, while the stainless-steel contact parts meet food-grade standards, ensuring safe and hygienic packaging for seasoning products.
