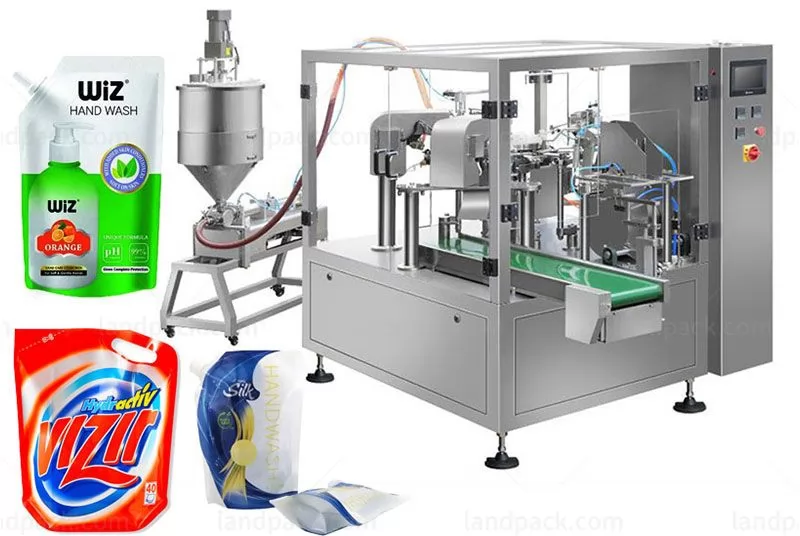

Automatic Rotary Liquid Spout Pouch Premade Pouch Filling Machine

  • Application
  • Description
  • Parameter
  • Video


Automatic Rotary Liquid Spout Pouch Premade Pouch Filling Machine(LD-8200L/ LD-8250L), it is suitable for liquid and thick liquid premade pouch spout pouch packing, such as detergent, fruit juice, miller wine, soy sauce, vinegar, drinks, chilli sauce, tomato sauce, peanut butter, jam, bean sauce etc.

Applicable Pouches: spout pouch, 3-side, 4 side sealing bag, stand-up bag, handbag, zipper bag, compound bag, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Automatic Rotary Liquid Spout Pouch Premade Pouch Filling Machine

1. Rapid change of the specifications of the bag, bag width can be automatically adjusted by one button.

2. Single shaft and the CAM design: packaging speed faster; more stable operation ; maintenance easier and reduce defective rate.

3. Modular heating, temperature control more accurate, heating fault have alarm prompt.

4. Advanced design idea, reduce the material loss, ensure the stability of equipment operation, extend the operating life of the equipment.

5. Simple and convenient operation, adopts the advanced PLC+POD (touch screen) electric control system and man-machine interface.

6. Machine have wide packaging range , it can packaging : liquid, paste, granule, powder, solid various bagging materials only. According to the different material with different metering device.

7. Machine use preformed bags & packaging design is perfect & good sealing quality to improve the quality and grade of the product.

ModelLD-8200L/ LD-8250L
Packing material3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
Pouch SizeW:70-200/100-250
Filling range10-1000g/20-2500g
Packing speed40-60bag/min(speed is determined by the product filling quantity)
Average precision≤ ±1%
Total power2.5KW
Dimensions1900mm X 1570mm X 1700mm(L*W*H)

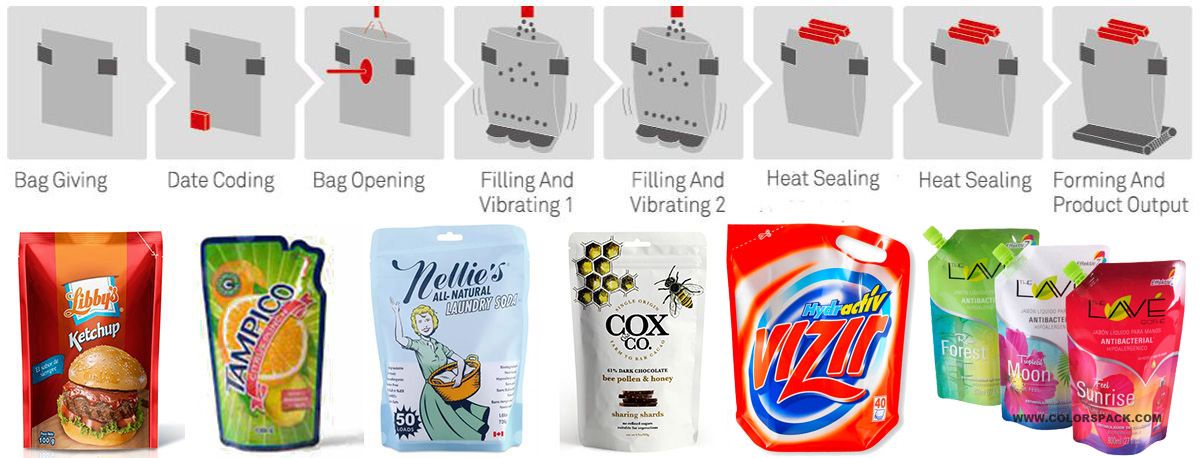

Work flowgiving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
Main standard parts1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system

After receiving your inquiry,We will send you the quotation as soon as possible.
