Full Automatic Spout Pouch Filling and Sealing Machine (8 Working Stations)

  • Application
  • Description
  • Parameter
  • Video

Application:

Automatic Liquid Rotary Spout Pouch Filling And Sealing Machine(LD-8200L/ LD-8250L), it is suitable for All Kinds of Spout Pouch Pre-Made Pouche liquid packing , such as sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, etc.

Applicable Pouches: spout pouch, 3-side, 4 side sealing bag, stand-up bag, handbag, zipper bag, compound bag, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Full Automatic Spout Pouch Filling and Sealing Machine (8 Working Stations)

Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.

The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch..

Automatic checking system can check bag situation, filling and sealing situation.

The system shows:

1.no bag feeding, no filling and no sealing.

2.no bag opening/opening error, no filling and no sealing

3.no filling, no sealing.

We can customize the suitable one for you according to your requiredment.

Just Tell us: Weight or Bag Size required.

ModelLD-8200L/ LD-8250L
Packing material3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
Pouch SizeW:70-200/100-250
Filling range10-1000g/20-2500g
Packing speed40-60bag/min(speed is determined by the product filling quantity)
Average precision≤ ±1%
Total power2.5KW
Dimensions1900mm X 1570mm X 1700mm(L*W*H)

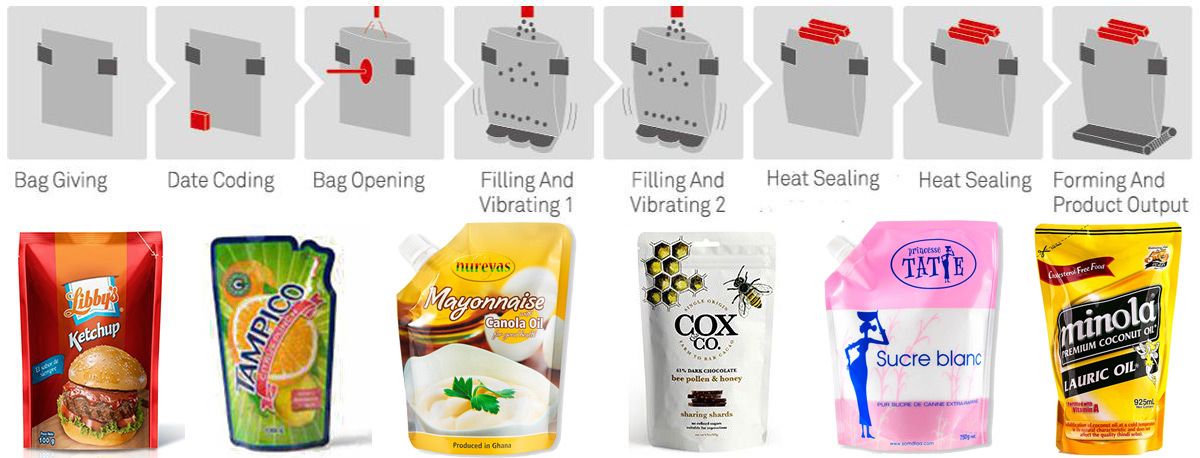

Work flowgiving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
Main standard parts1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system
