Application:
Applied for packing various kinds of granular by stand up pouch, such as groundnuts, peanuts, snacks, chocolate, nuts, seeds, potato chips, pet food, dried fruit, frozen dumplings, biscuits, corn, hardware, plastic, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
1. Compact Design for Efficient Space Utilization: The mini doypack machine is specifically engineered to package products while occupying minimal space.

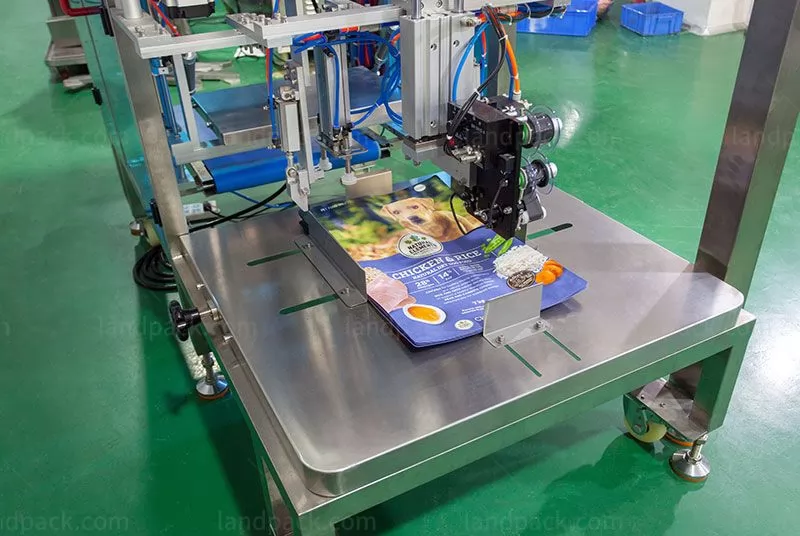

2. Precise Labeling with Date Printing: The machine ensures accurate labeling by directly printing essential information—such as production dates and batch numbers—onto the bag.
3. Zipper Opener for Consumer Convenience: Including a zipper opener simplifies the bag-opening process for consumers.

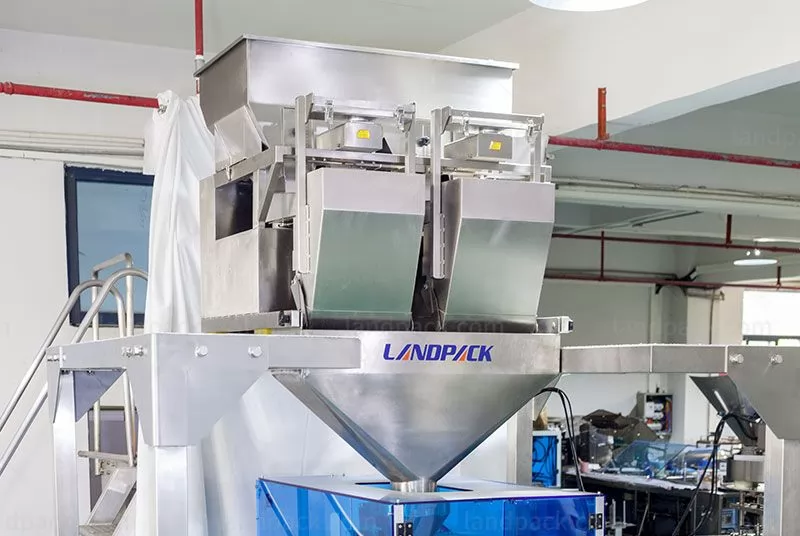

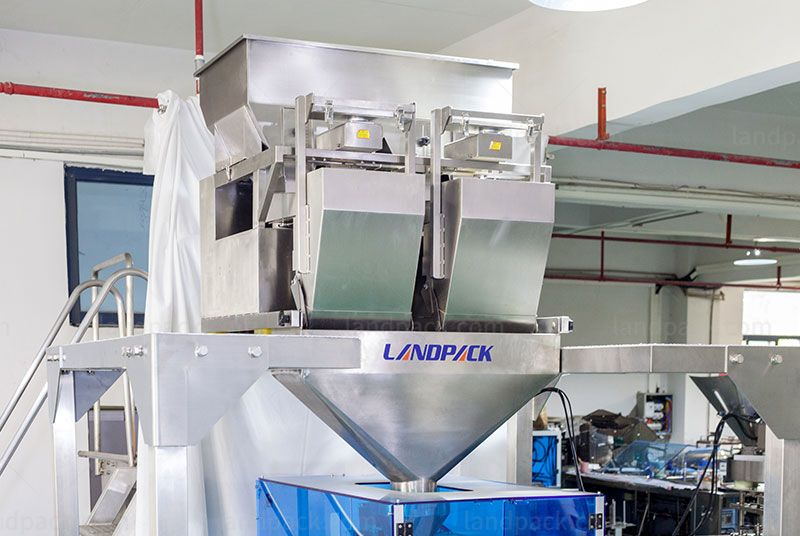

4. Accurate Dual-Head Weigher: The dual-head weigher precisely measures the product weight.
5. Efficient Packing Speed: The mini doypack machine achieves a packing speed of 5-6 bags per minute for bags weighing 7 kg each.
Workflow:
1. Bag-giving station with date printer
2. Open the bag
3. Fill the products
4. Seal the bag
5. Output
| Model | LDG-300 | LDG-600 |
| Bag Material | Multi-layer Composite Premade Bag (e.g.: PET/PE) | |
| Premade bag type | zipper pouch, 3-side sealing bag, stand-up bag, gusset bag, etc | |
| Bag size | 80mm≤W≤300mm, 100mm≤L≤300mm | 250mm≤W≤500mm, 380mm≤L≤600mm |
| Speed | 0-15 bags/min | 0-10 bags/min |
| Sealing Type | Straight grain, the pitch is 1mm (Optional reticulate) | |
| Sealing Width | 10mm（5-20mm) can be customized | |
| Voltage | 220V, Single-phase, 50/60HZ, 1.2KW | |
| Air Pressure | 0.65Mpa | |
| Air Consumption | 0.3 m³/min | |
| Body Dimension | 1300*800*1230mm | 2800*1200*1450mm |
| Weight | 300 kg | 450 kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
