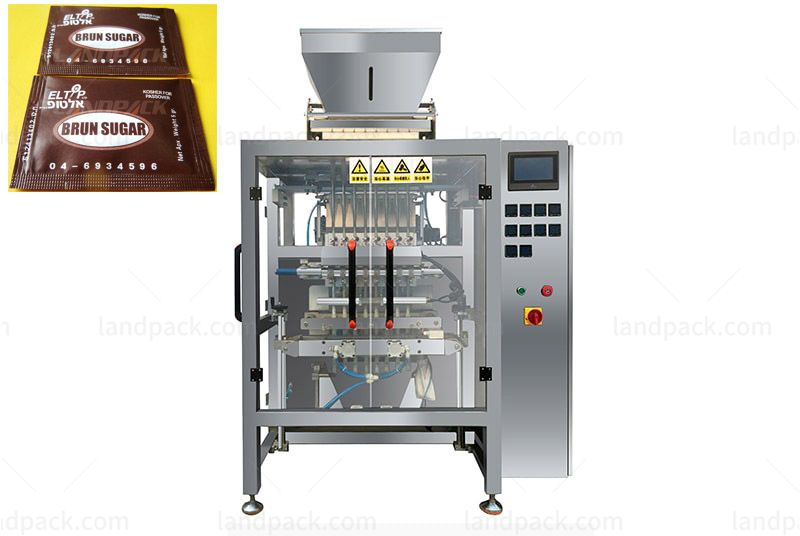

Multi Lane Sugar/ Salt Stick Packing Machine LD-G8L

  • Application
  • Description
  • Parameter
  • Video

Application:

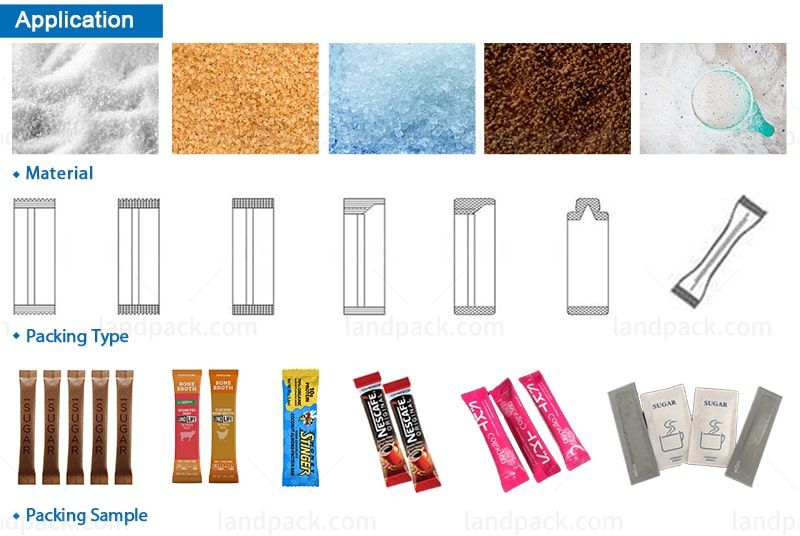

Multi Lane Grain Stick Packing Machine Suitable for Many Kinds of Loose Granule Products, Such as Sugar, Salt, Small Grains, Seeds, Spice, etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Multi Lane Grain Stick Packing Machine LD-G8L

Multi lanes machine can produce multi lanes bags at same time.

Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

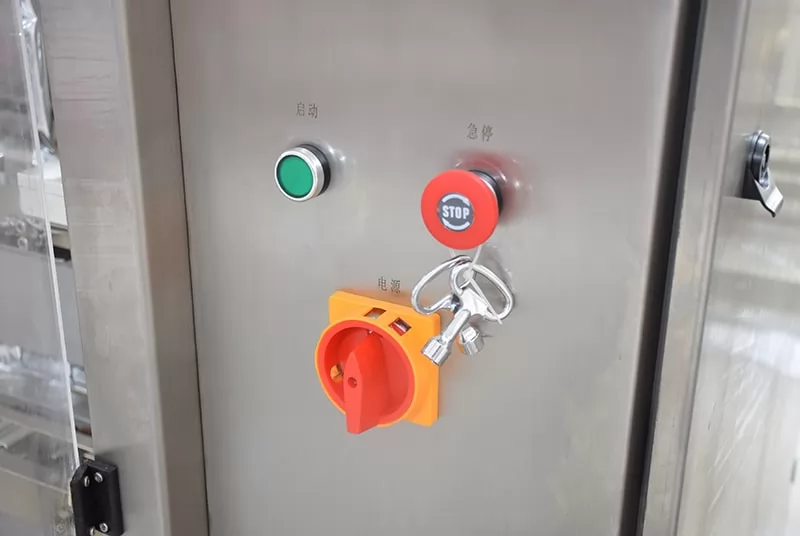

Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.

Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.

PLC controller, high function and control the whole machine’s work steps.

ModelLD-G4LLD-G6LLD-G8LLD-G10LLD-G12L
Lane Number4 lanes6 lanes8 lanes10 lanes12 lanes
Bag Width12-90mm12-60mm12-45mm16-35mm12-26mm
Bag Length40-165mm
Packing Speed30-50 Bags/Min/Lane
Control SystemPLC + Servo +  Touch Screen
Cutting Type1.Flat Cutting, 2.Zigzag Cutting, 3.Continuous Cutting,  4.Customized Special Shap Cutting
Optional deviceDate Coder, Air-filling Device, Tear Notch Device

After receiving your inquiry,We will send you the quotation as soon as possible.
