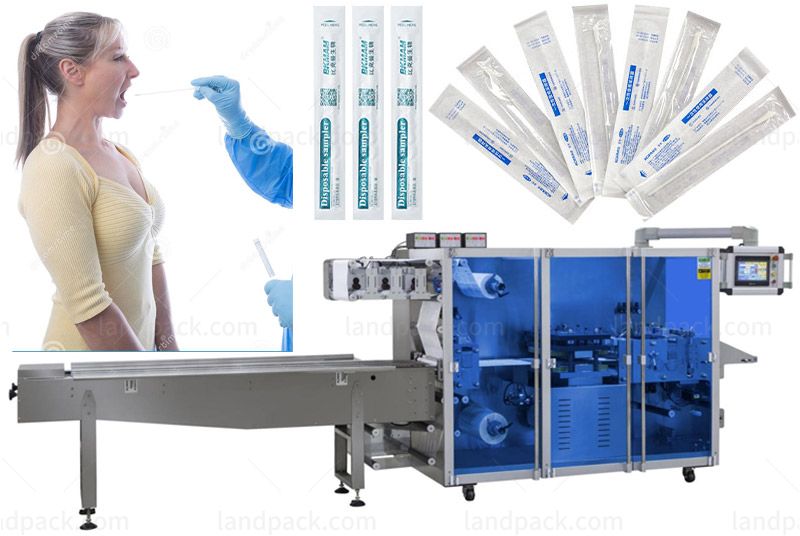

Automatic Sampling Throat Swab Packing Machine/ Swab Packaging Machine

  • Application
  • Description
  • Parameter
  • Video

Automatic sampling throat swab packing machine/ swab packaging machine, it is used for paper-plastic or paper-paper packing of medical dressings, swab, gauze sheets, surgical masks, KN95 masks, throat swabs, anal swab, nose swabs, and other similar products.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Automatic Nasal Swab Packing Machine Fast Packaging And Running Stable (Swab Packing Machine)

1) Servo motors and control system drive mode:
  A. Air defense, positioning stop function, save packaging materials;
  B. Prevent cutting, protect the cutter, improve efficiency;
  C. Accurate positioning and automatic error correction;
  D. Fast packaging speed, less noise, and less power consumption;
2) The same type of machinery on the market mostly adopts manual adjustment of product position. It is large error and high reject rate; However, medicine plate packing machine adopts motor positioning and "differential" feeding mode. In the process of operation, it can easily realize the adjustment of feeding position, accurate and fast;
3) Adopt adjustable bag making device to meet the packaging requirements of multiple varieties, specifications and plates;

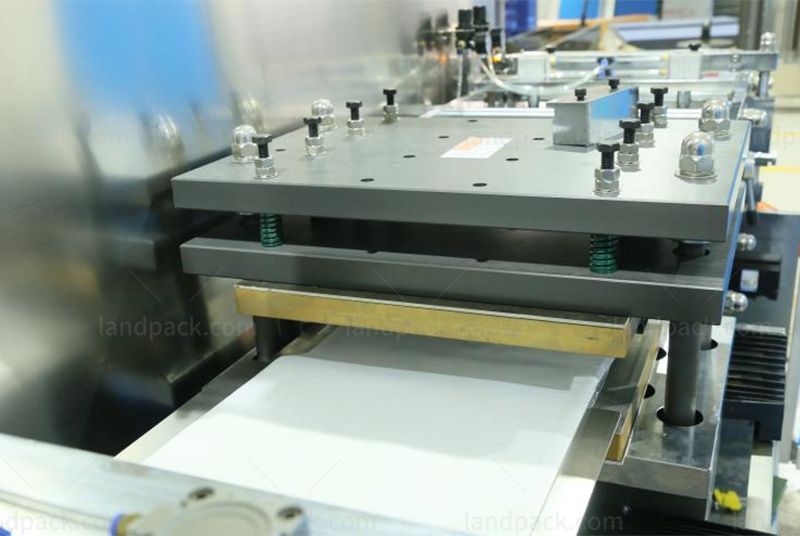

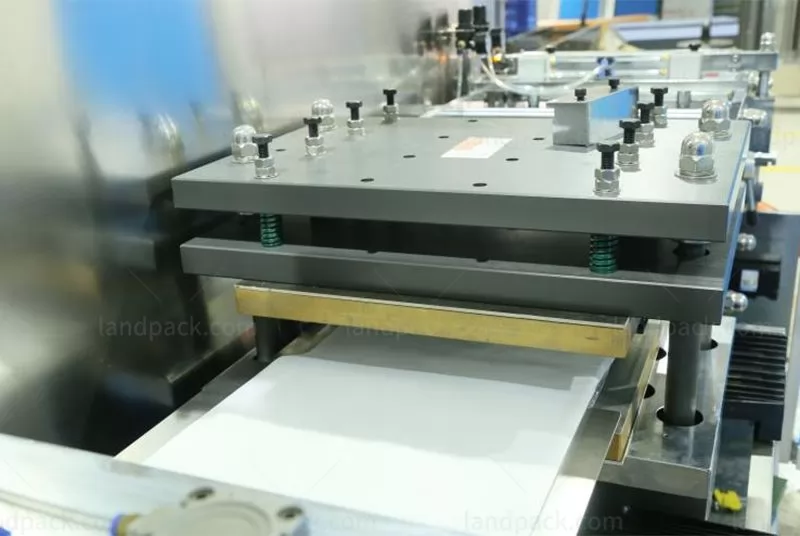

4) Sliding horizontal sealing mechanism, can arbitrarily adjust the center height of horizontal sealing;
5) Adopt high quality pressure brush. Compared with the ordinary pressure brush on the market, it is not easy to deformation and more durable; 6) Large color touch screen and microcomputer packaging controller can do free setting for the feeding position, plate number, speed, bag length, cutting point position detection and other parameters and it is convenient for later technical upgrade and function adjustment;
7) Independent temperature PID control, better suitable for all kinds of packing material;
8) Compact structure design, simple rotation system, stable performance, more convenient maintenance;
9) With fault self-diagnosis function, reduce maintenance time, to ensure stable production;
10) Manual/feeder/online, three working ways selection according to requirements, more suitable for customers' existing equipment

MachineAutomatic Four Side Sealing Packing Machine
Packing MaterialSuitable for kinds of PE/OPP PE/PET paper film aluminum plating film pure aluminum film and other composite film
Packing Speed90-150 bags/min (taking swabs as an example: 300-400 pcs/min)
Packing Film Width400-800mm
Inner Roller Diameterφ70-75mm
Outer Roller Diameterφ350mm
Packing Bag SizeLength: 100-300mm; Width: 80-180mm; Customize size according to demand
Working Pressure0.6-1.0Mpa
Power supplyAC380V, 50/60Hz, 11 kW
Machine size5500*1850*1800mm
Machine weight1500kgs
