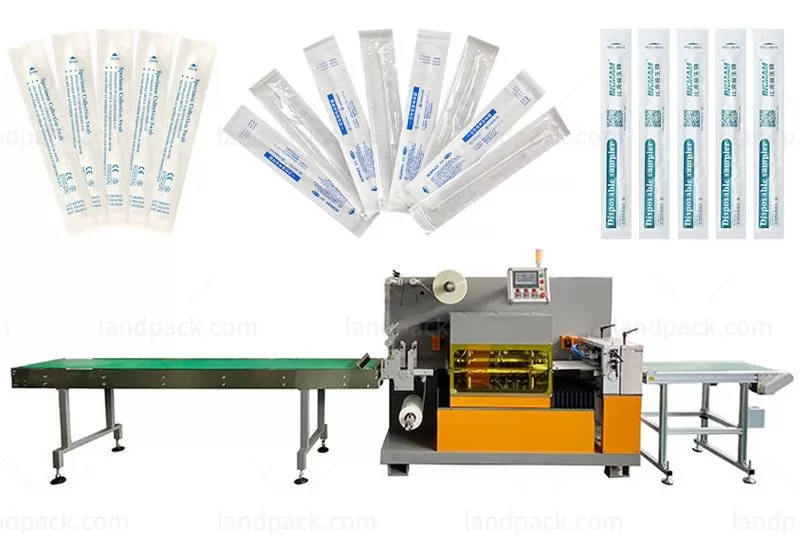

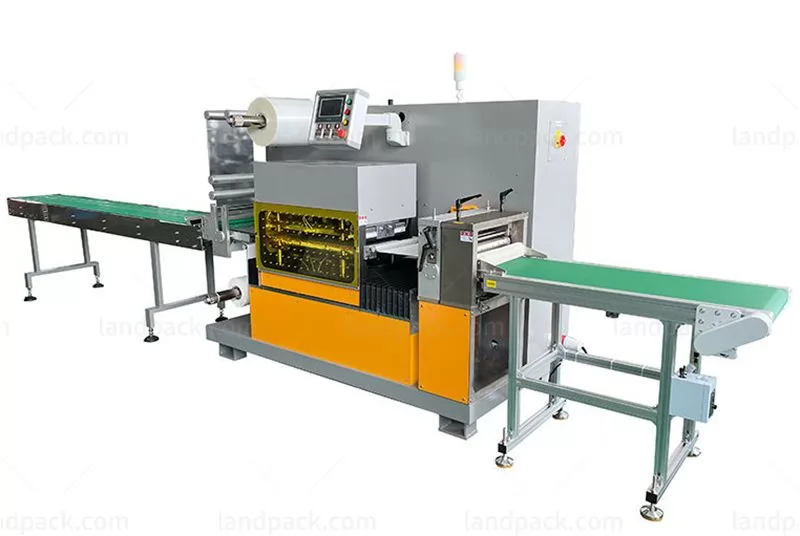

High Speed Throat Swab Servo Packing Machine For Packing Nasal Swab Hroat Swab Etc

  • Application
  • Description
  • Parameter
  • Video

Application:

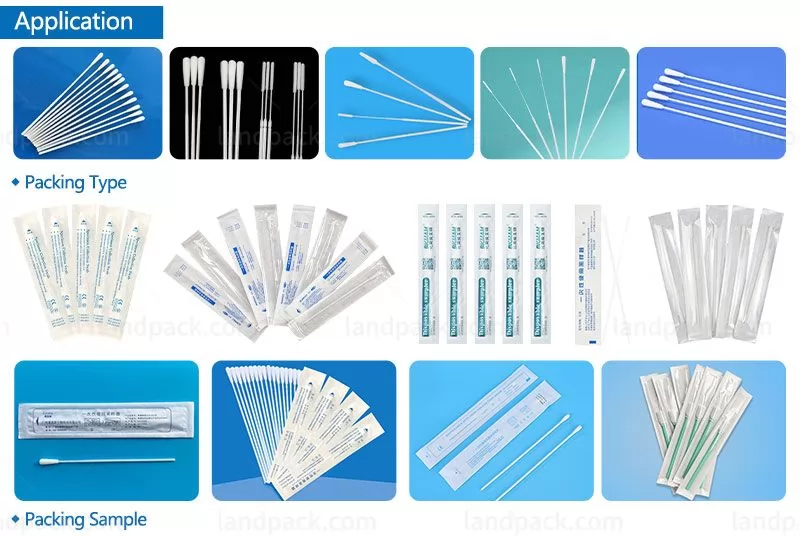

It is suitable for the packaging of sheet materials such as medical dressings, gauze sheets, throat swabs, and nasal swabs. It is driven by servo motor and adopts PLC programmable controller to make the operation of the whole machine programmed. It is composed of servo traction, multi-row feeding, reciprocating heat sealing, vertical and horizontal cutting and finished product conveying mechanism. The machine runs stably and is easy to operate!

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Automatic Nasal Swab Packing Machine Fast Packaging And Running Stable (Swab Packing Machine)

△ Programmable control, PLC programmable control, driven by servo motor, make the whole machine run programmatically.

△ Touch screen display, host speed, set bag length, cutter, heat sealing and feeding time, output will be displayed on the screen, at a glance.

△ Graphic matching: Imported photoelectric eye tracking color scale, accurate graphic matching.

△ Automatic temperature control, two sets of temperature controllers are used for automatic temperature control in the heat sealing part to improve the sealing quality.

Model
LDF-350
Film width
350mm
Bag length
70-450mm
Bag width
80-175mm
Product height
1-5mm
Film roll diameter
Max 400mm
Packaging speed
300-600bag/min
Packaging materials
paper/plastic
Power
380V,50/60Hz,20KW
Machine size
(L)5600 (W)1730 (H)1500 mm
Machine weight
2750Kg

After receiving your inquiry,We will send you the quotation as soon as possible.
