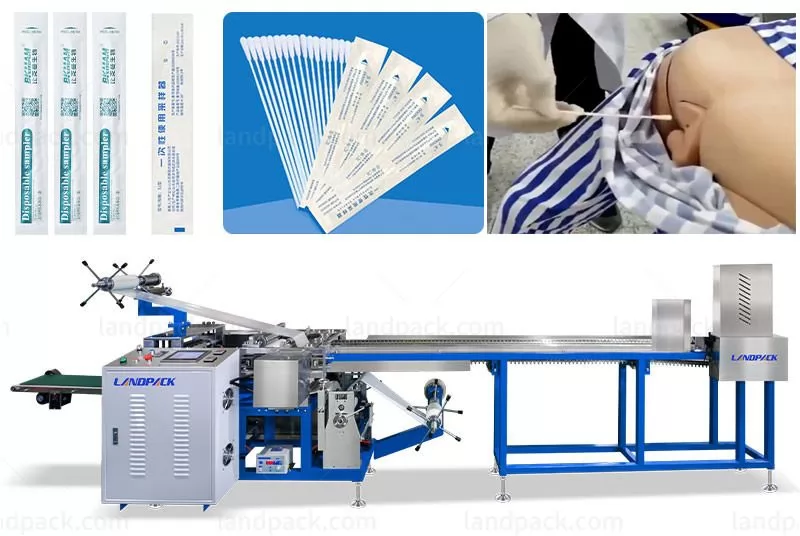

This packing machine is fabricated to automatically and individually packaging of sterile cotton swabs, throat swabs, anal swab, medical nasal swabs, oral swabs, specimen collection swab, etc.
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
1) Servo motors and control system drive mode:
A. Air defense, positioning stop function, save packaging materials;
B. Prevent cutting, protect the cutter, improve efficiency;
C. Accurate positioning and automatic error correction;
D. Fast packaging speed, less noise, and less power consumption;
2) The same type of machinery on the market mostly adopts manual adjustment of product position. It is large error and high reject rate; However, medicine plate packing machine adopts motor positioning and "differential" feeding mode. In the process of operation, it can easily realize the adjustment of feeding position, accurate and fast;
3) Adopt adjustable bag making device to meet the packaging requirements of multiple varieties, specifications and plates;
4) Sliding horizontal sealing mechanism, can arbitrarily adjust the center height of horizontal sealing;
5) Adopt high quality pressure brush. Compared with the ordinary pressure brush on the market, it is not easy to deformation and more durable; 6) Large color touch screen and microcomputer packaging controller can do free setting for the feeding position, plate number, speed, bag length, cutting point position detection and other parameters and it is convenient for later technical upgrade and function adjustment;
7) Independent temperature PID control, better suitable for all kinds of packing material;
8) Compact structure design, simple rotation system, stable performance, more convenient maintenance;
9) With fault self-diagnosis function, reduce maintenance time, to ensure stable production;
10) Manual/feeder/online, three working ways selection according to requirements, more suitable for customers' existing equipment
|Packaging Film Size||Width: 190mm||Spacing: 35.56 (Roll film)|
|Bag Size||L*W: 190*35.56mm||L*W: 190*40mm|
|Equipment Size ||4300*900*1150mm(L*W*H)|
|Equipment Weight||700kg |
|Power Supply||AC:220V, 50/60HZ, 3KW|
After receiving your inquiry,We will send you the quotation as soon as possible.
