Application:

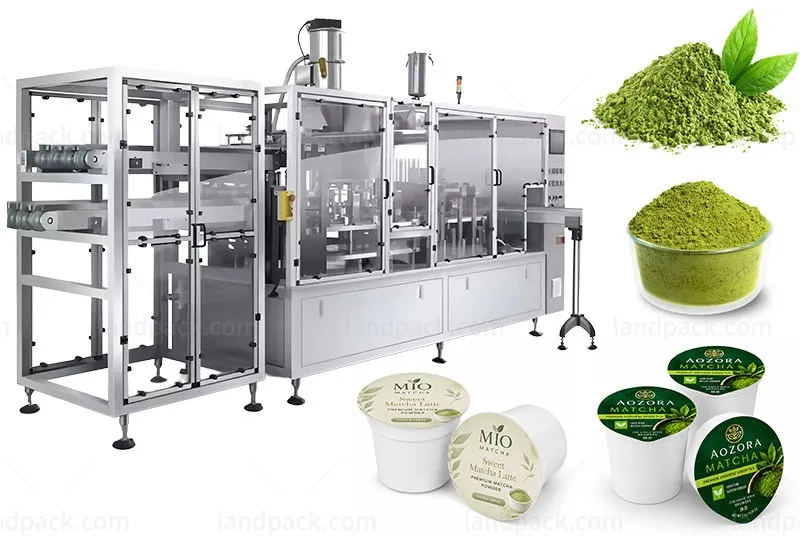

The Automatic Cup Filling Machine is specially designed for packaging Matcha powder, green tea powder, instant tea powder, herbal tea powder, milk tea powder, coffee powder, cocoa powder, solid beverage mixes and nutritional drink powders and other fine powder products into preformed plastic cups.
Package Type:
This automatic matcha powdercup filling machine is suitable for plastic cups, PP cups, PET cups, paper cups, single-serve cups, snack cups, beverage powder cups and customized preformed containers.
Process Workflow:

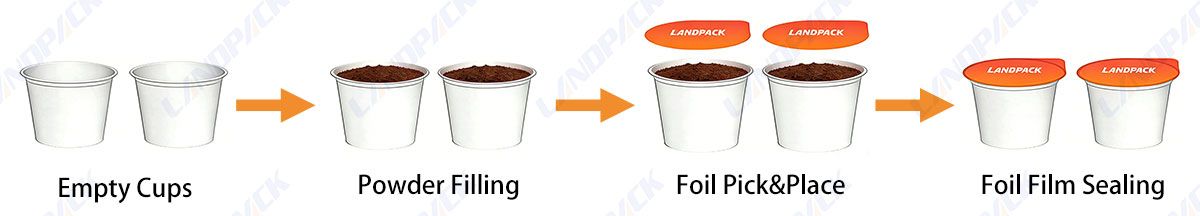

Cup Feeding → Cup Positioning → Powder Filling → Film Placement → Heat Sealing → Date Coding → Cup Discharge

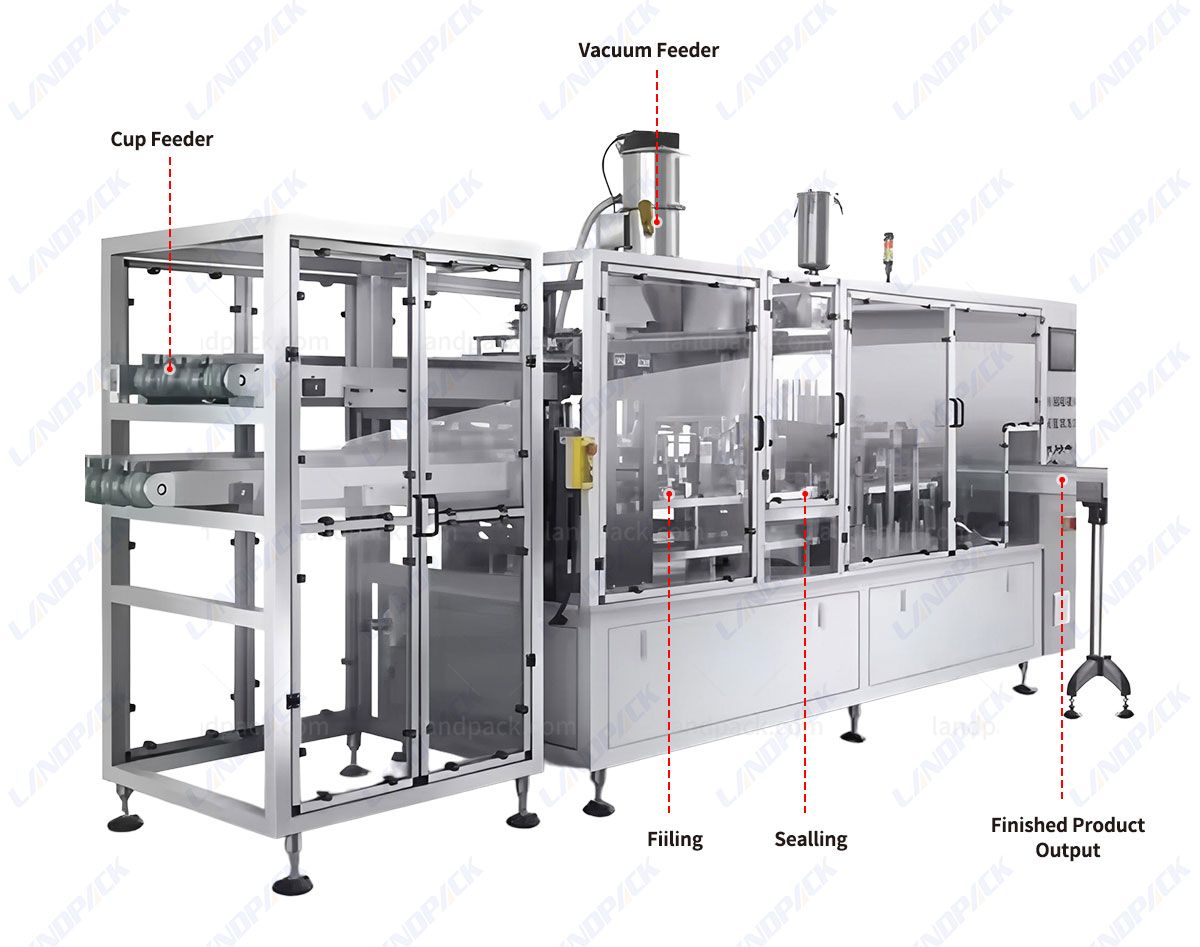

Machine Structure Description:
Feature:

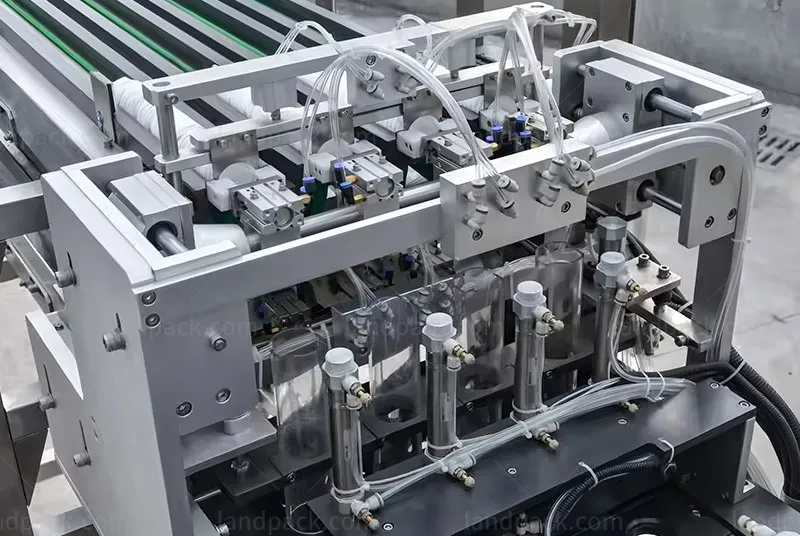

1. Automatic cup feeding and positioning for continuous production.

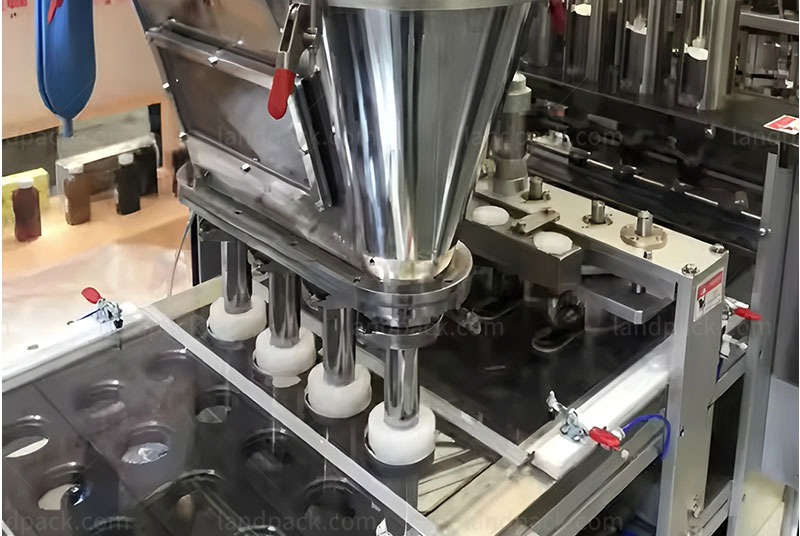

2. Servo auger filler provides high-precision powder filling with minimal product waste.
3. Designed for matcha powder, green tea powder, instant tea powder and beverage powders.
4. Custom cup molds support various cup diameters and filling volumes.
5. Optional UV sterilization system enhances packaging hygiene.
6. Automatic date coding improves product traceability and quality control.

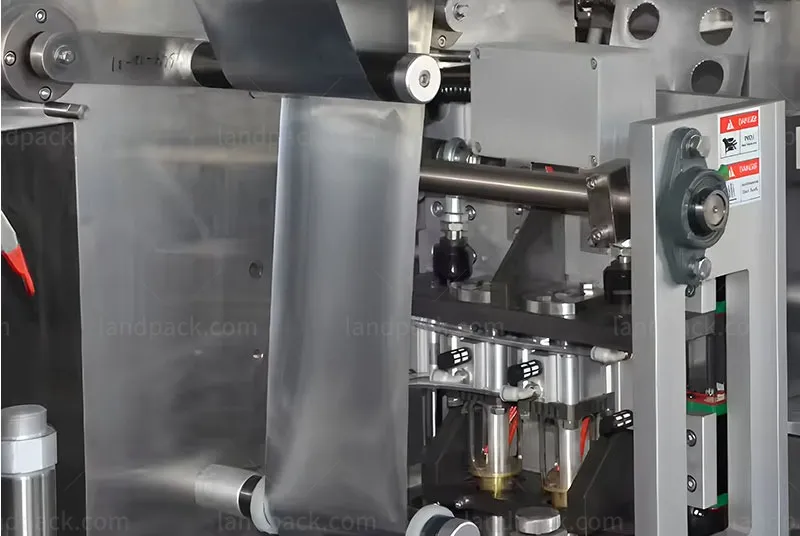

7. Stable heat sealing technology helps maintain product freshness and shelf life.
8. PLC touch screen interface allows quick setup and simple operation.
| Specification | |||||
Production Capacity | 800-1500 capsules/hour | ||||
Measurement | Screw head filling (1 or 2 heads) | ||||
Filling Range | 5-10g ( Can be customized ) | ||||
Size (L) | 1500*(W)1200*(H) 1700mm | ||||
Voltage | 220V,50/60HZ,2.2kw | ||||
Weight | 500kg | ||||
Air Supply | 1m/points, 0.6-0.75Mpa | ||||
Structure | 304 stainless steel body | ||||
After receiving your inquiry,We will send you the quotation as soon as possible.
