Application:
Suitable for packing regular objects such as Fruit Vegetable biscuits, pies, bread, fresh fruits & vegetable, instant noodles, drugs, daily appliances, industrial parts, paper boxes, plates, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
Features:
1. 7inch Rotary Movable Touch Screen Easy to Operating
2. Adopted PLC Controller 3 Servo Driver More Intellgent
3. Ajustable Bag Former Suitable for Different Product
4. Reciprocating Cutting System High Speed,Sealing More Compact and Beautiful
5. Speed 15-80bags per min
6. Full Stainless Steel Easy To Clean
Workflow:
1. Smart HIMD
2. Feed The Raw material Manual

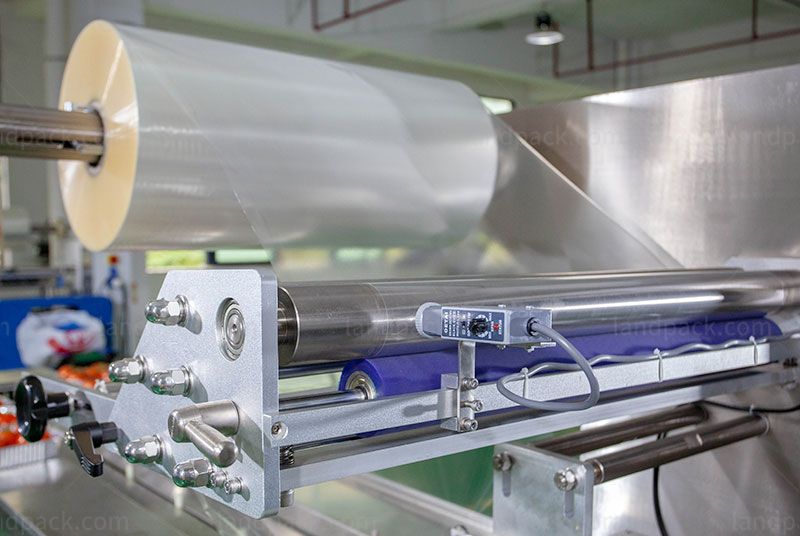

3. Pulling the Film and Bag Forming
4. Reciprocating Cutting
5. Sealling the Bag
| Type | LP-450W | LP-600W | LP-700w |
| Film width | Max.450mm | Max.600mm | Max.700mm |
| Bag length | 120-450mm | 120-450mm | 120-450mm |
| Bag width | 50-160mm | 50-200mm | 50-350mm |
| Product height | 10-80mm | 10-80mm | 10-80mm |
| Film roll diameter | Max.320mm | Max.320mm | Max.320mm |
| Packaging rate | 20-80 bag/min | 20-80 bag/min | 20-80 bag/min |
| Power | 220V 50/60Hz,3.2kw | 220V 50/60Hz 3.6kw | 220V 50/60Hz 4.2kw |
| Machine size | (L)4380*(W)870*(H)1500mm | (L)3990*(W)970*(H)1500mm | total length 4030mm* total width 980mm* total height 1500mm |
| Machine quality | 960kg | 1160kg | 14500KG |
| Remarks | Reciprocation end sealing system, with angle folding device | ||
| Film material | OPP、PE、PVC、OPP/CPP、PT/PE、KOP/ CPP/ Aluminum Coating Film/ Aluminum Film | ||
After receiving your inquiry,We will send you the quotation as soon as possible.
