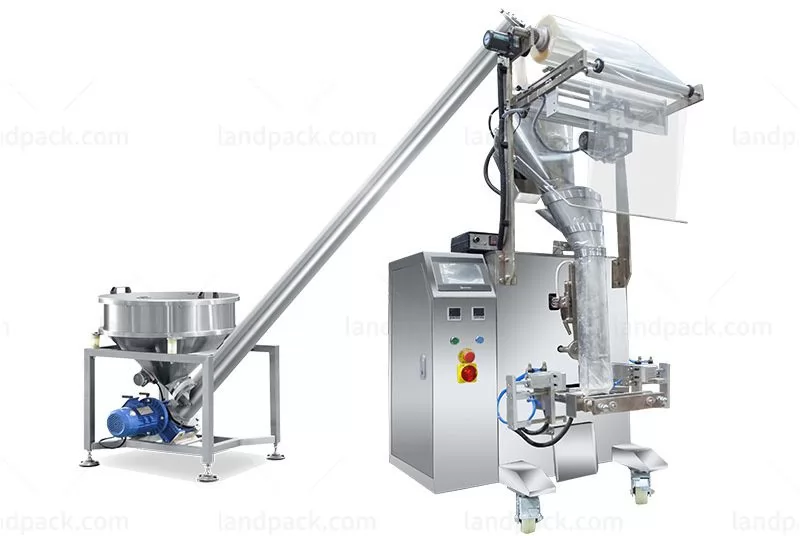

Automatic Powder Form Fill Seal Machine LD-320D

  • Application
  • Description
  • Parameter
  • Video

Automatic powder form fill seal machine, Suitable for packing the fine powder material. Such as coffee powder, spice powder, milk powder, flour, fruits powder, seasoning, chemical medical powder, etc. It integrates metering, bagging, packing, sealing, date printing.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Automatic Powder Form Fill Seal Machine LD-320D

High precision structure for simple and easy operating and repairing.

Single-chip CPU,step-motor,easy and accurate to set the bag length.

Own simple circuitry and outstanding function.

Be able to complete the whole procedure of filling,bagging,date printing,charging(exhausting) automatically.

Film width120-320mm180-380mm
Bag length50-200mm60-280mm
Bag width50-150mm60-180mm
Diameter of film rollMax.300mmMax.320mm
Packing speed35-70bag/min
Measuring range50-500ml50-750ml
Film thickness
Power220V 50/60Hz 2.2KW220V 50/60Hz 2.5KW
Machine size(L*W*H)
Machine weightAbout 300kgAbout 450kg

After receiving your inquiry,We will send you the quotation as soon as possible.
