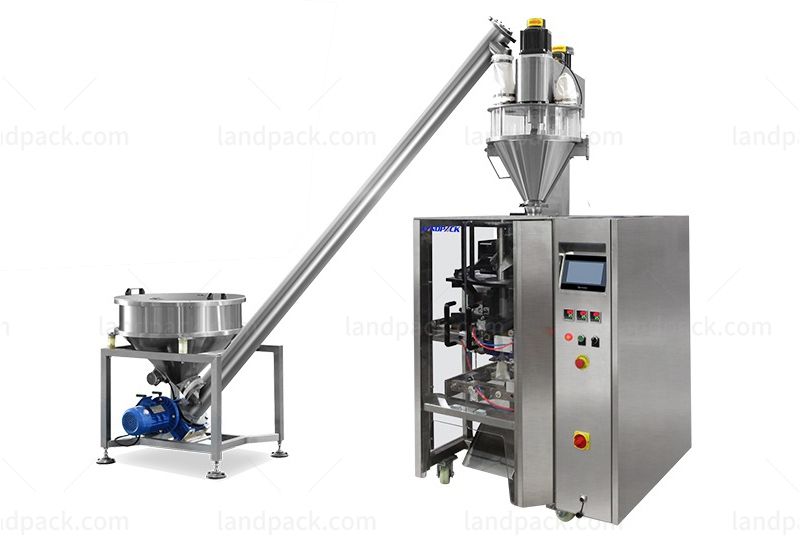

Automatic Vertical Powder Packaging Machine

  • Application
  • Description
  • Parameter
  • Video

Application:
Suitable for packing fine dry powder materials, such as milk powder, spices powder, coffee powder, corn flour, laundry powder, coconut powder, fruit powder, collagen protein powder, cocoa powder, chilli powder, etc.  It integrates metering, bagging, packing, sealing, date printing and counting into one.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Automatic Vertical Powder Packaging Machine

High precision digital weighing sensors;

PLC control system, stable and reliable;

7 inch colorful touch screen;

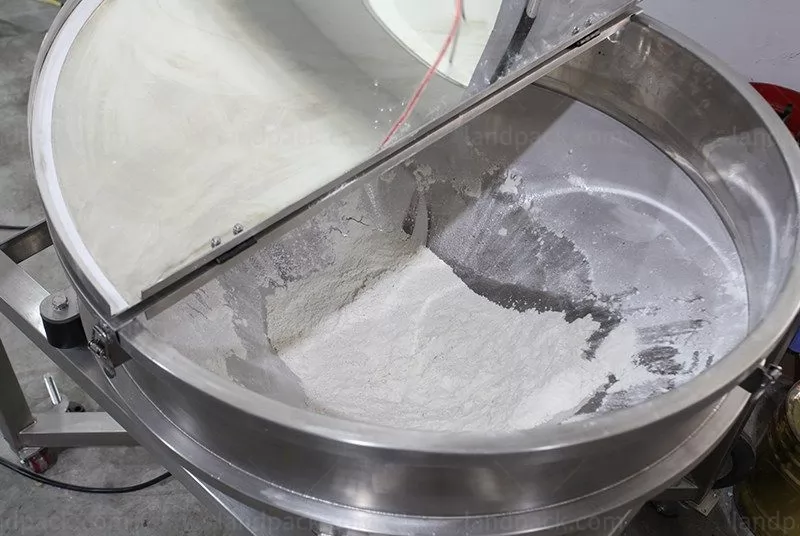

Material contact parts (storage hopper, hopper, vibration plate, weighing hopper, etc.) are to realize fast disassembly, easy to clean;

Easy to clean and maintance.

ModelLD-420LD-520LD-720LD-900LD-1050LD-1200
Film Thickness0.04-0.08mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm0.04-0.12mm
Bag Length80-300mm80-350mm100-500mm100-600mm100-800mm100-1000mm
Bag Width60-200mm100-250mm180-350mm260-430mm290-505mm290-580mm
Film Roll DiameterMax.320mmMax.320mmMax.320mm400mm400mm400mm
Pakaging Rate5-60bag/min5-60bag/min5-55bag/min5-20bag/min5-20bag/min5-20bag/min
Film WidthMax.420mmMax.520mm150-Max.720mmMax.900mmMax.900mmMax.1200mm
Measurement Range150-1500ml5-2000ml4000ml1-25L1-25L1.5L-45L

After receiving your inquiry,We will send you the quotation as soon as possible.
