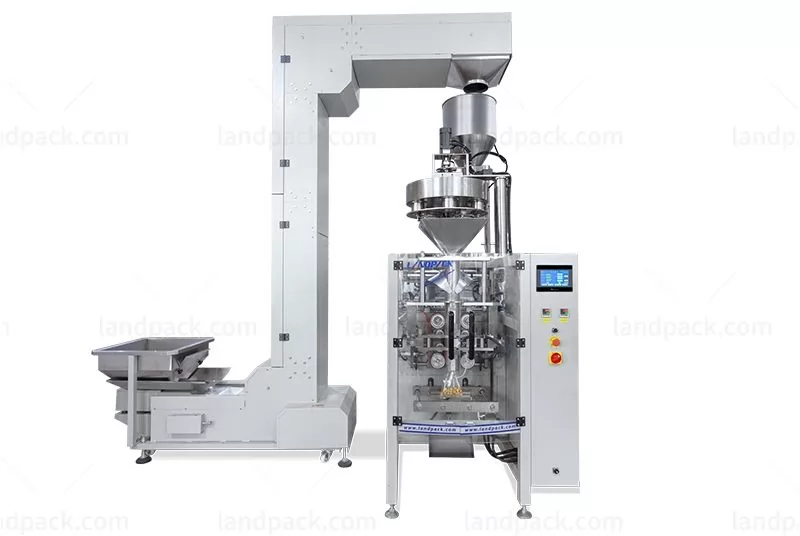

Automatic Vffs Packaging Machine With Volumetric Cup

  • Application
  • Description
  • Parameter
  • Video

Application:
Automatic vffs packaging machine with volumetric cup.  it is apply to pack bulk grain, slice, short bar material products such as puffy food, popcorn, shrimp chip, salt, sugar, rice, sunflower seed, peanut, beans, nuts, pistachio, peas, instant oatmeal / cereal oats, etc.

Kindly Reminde
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers: Automatic Vffs Packaging Machine With Volumetric Cup

1. New design with perfect fashion, more reasonable structure, more advanced technology.

2. Imported PLC control system, colorful touch screen, easy operation, Intuitionistic and efficient.

3. Standard positioning with imported servo film transporting system and mark sensor, superexcellent capability for compele machine, perfect packaging.

4. With auto warning protection function to minimize loss.

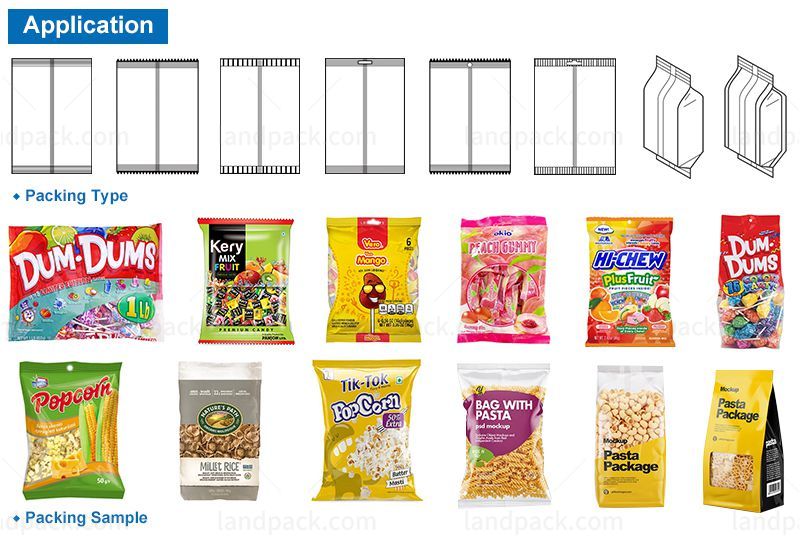

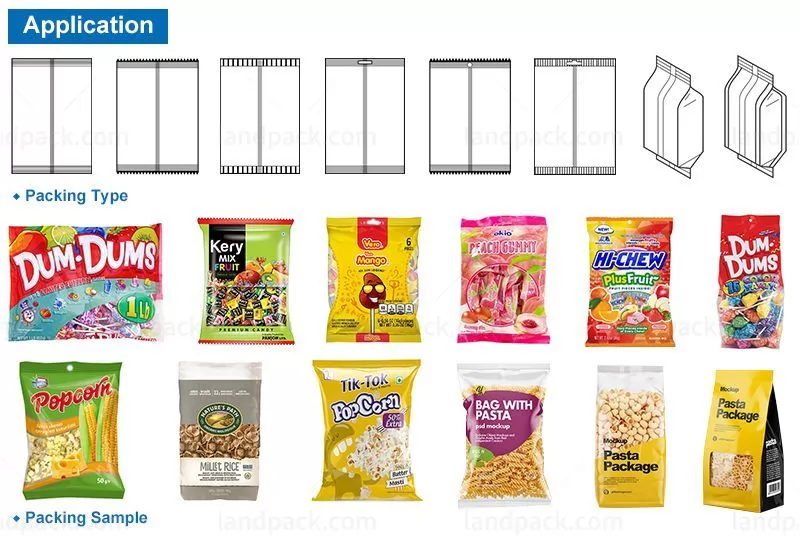

5. Various kinds of bag, it could provide the hand hole bag, link bag, etc.

Model
LD-420C
LD-520C
LD-720C
Film Width
Max.420mm
Max.520mm
Max.720mm
Bag Length
80-300mm
80-350mm
100-500mm
Bag Width
60-200mm
100-250mm
180-350mm
Roll Diameter
Max.320mm
Max.320mm
Max.320mm
Film Thickness
0.04-0.12mm
0.04-0.12mm
0.04-0.12mm
Measuring Range150-1500ml2000ml4000ml
Packing Speed
5-60bag/min
5-60bag/min
5-55bag/min
Power
220V 50/60Hz 2KW
220V 50/60Hz 3KW
220V 50/60Hz 3KW
Machine Size(L*W*H)
1217*1015*1343mm
1488*1080*1490mm
1780*1350*2050mm
Machine Weight
About 650kg
About 680kg
About 750kg
Option Device
1.Date Printing, 2.Hole Punching Device(Pinhole, Round hole, the butterfly hole),
3.Air-filling Device, 4.Tear Notch Device
