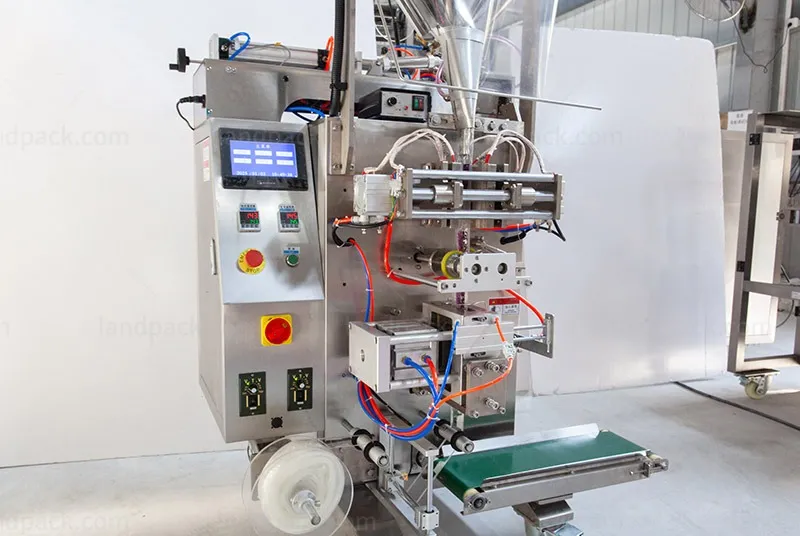

Vertical Form Fill Seal Machine Bottle Shape Sachet Liquid Packing Machine

Application:
This vertical form fill seal machine packs liquid products into bottle-shaped sachets. It works for energy gel, fruit juice, honey, vinegar shots, sauce, syrup, jelly, and drink concentrate. The liquid sachet packing machine fits food, beverage, sports nutrition, and single-serve liquid packaging lines. Its bottle-shape pouch style gives the product a stronger shelf look than common pillow sachets.

Package Type:
This vertical packing machine forms bottle-shaped sachets from roll film. It can run shaped liquid pouches, stand-style sachets, spout-like sachets, and custom printed laminated film packs. It works with PET/PE, PET/AL/PE, OPP/CPP, and other laminated films used for liquid and gel packaging.

Workflow:
1. Film Feeding, 2. Pouch Forming, 3. Liquid Filling, 4. Shape Sealing, 5. Cutting, 6. Output

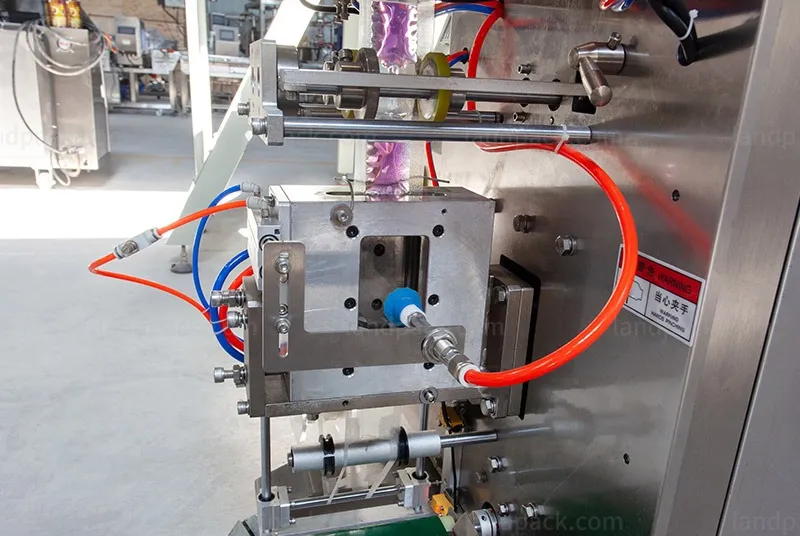

Machine Key Components:

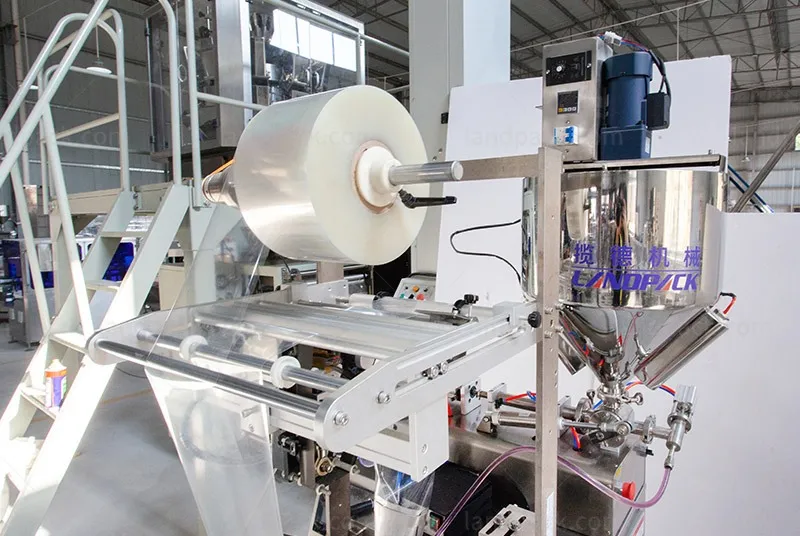

1. Storage tank, 2. Roll film feeder, 3. Date printer, 4. Piston pump, 5. Filling Nozzle, 6. Side sealer, 7. Bottles shape cutter, 8. Automatic collect wasted film, 9. Output conveyor

Features:
1. Makes bottle-shaped sachets from roll film
2. Gives single-serve products a better shelf display
3. Works with printed laminated film for branded packs
4. Adjusts filling volume and pouch length from the panel
5. Uses liquid pump filling for steady dosing
6. Sealing follows the shaped pouch outline
7. Compact vertical structure saves floor space
