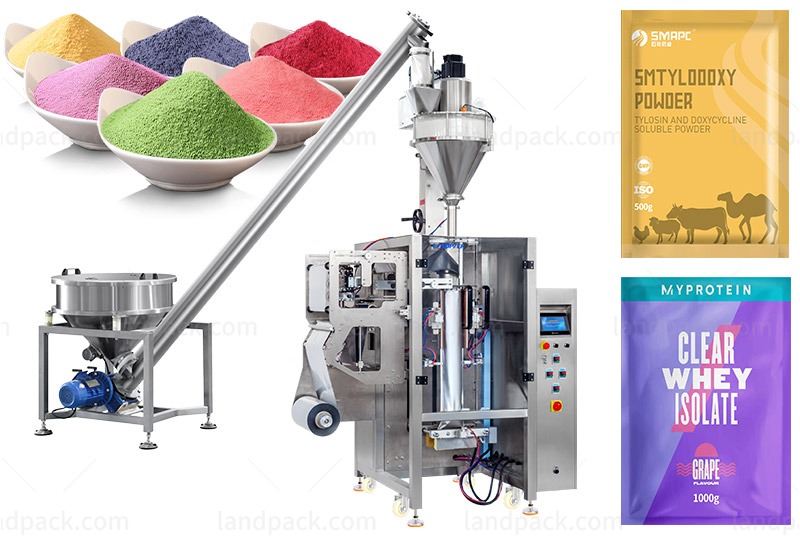

Automatic Vertical Vffs Powder Packaging Machine For Four Sides Sealing Pouch

Application:
The VFFS Powder Packaging Machine is designed for four side seal sachets for powder product such as flour, milk powder, coffee powder, cocoa powder, protein powder, baking ingredients and seasoning powder.

Package Type:
The vffs machine is specially configured for four side sealing pouches and can also support three side seal sachets, stick packs, chain bags, and customized sachet formats through forming system modifications.

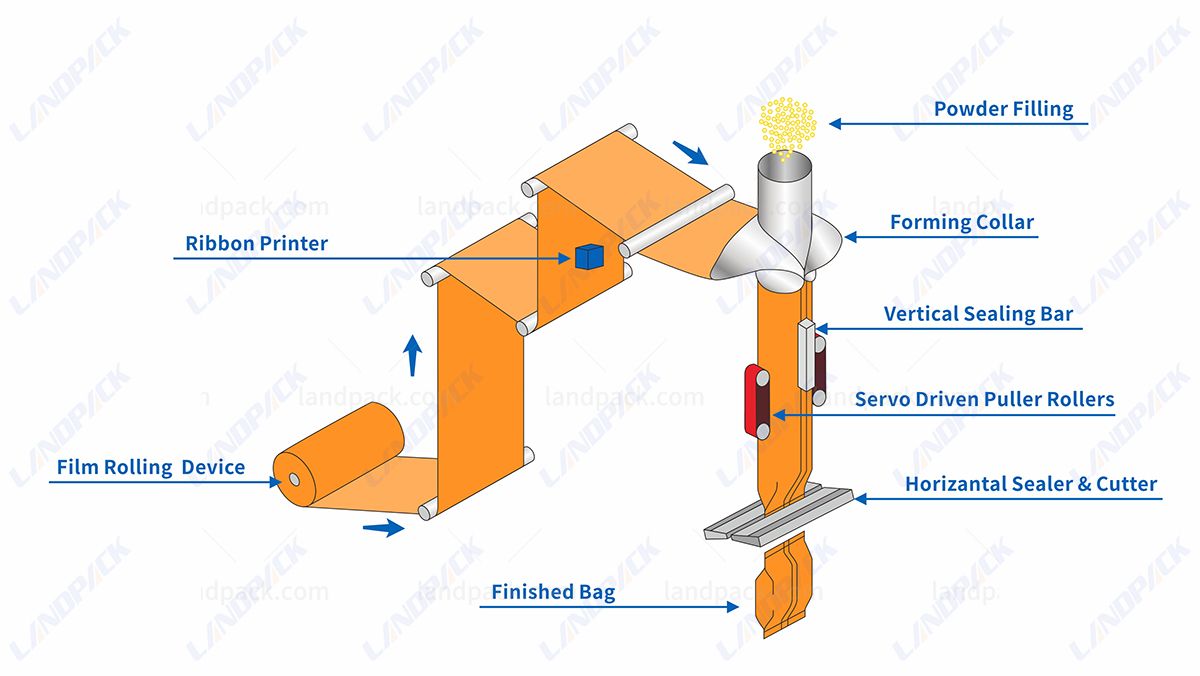

Workflow:
Powder Feeding → Servo Auger Dosing → Film Forming → Four Side Seal Bag Making → Filling → Heat Sealing → Date Coding → Cutting → Finished Product Collection

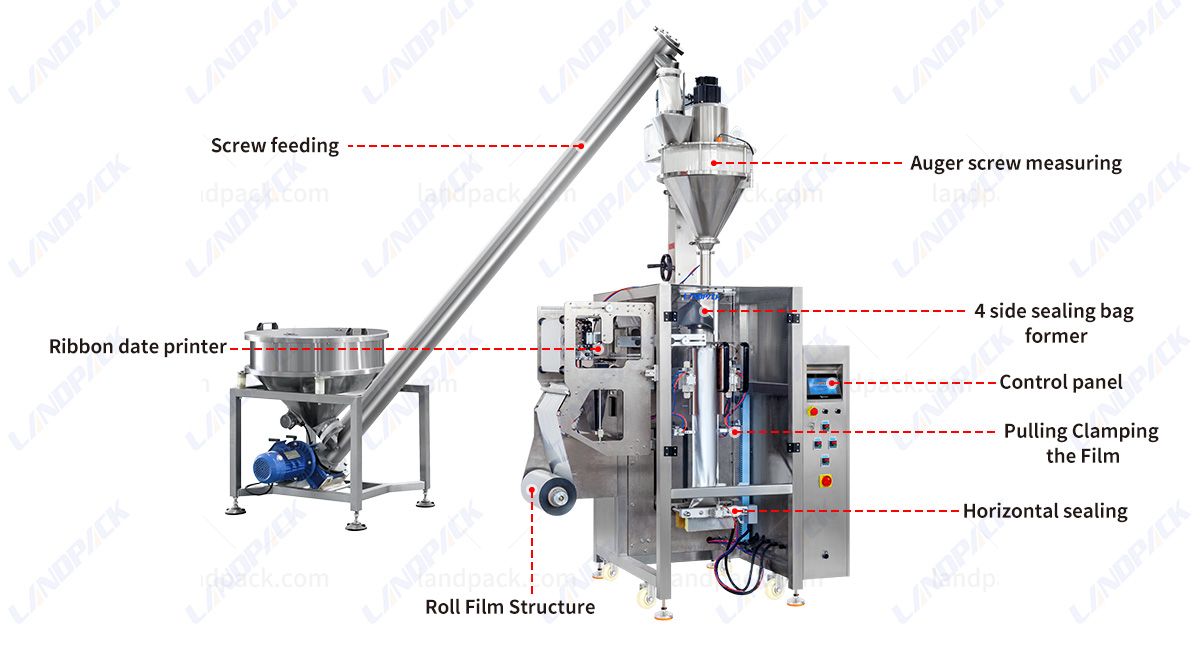

Machine Key Components:

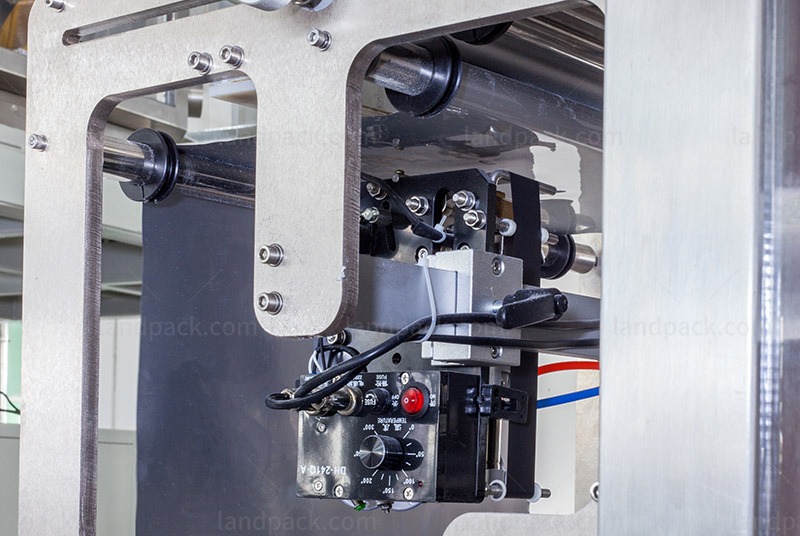

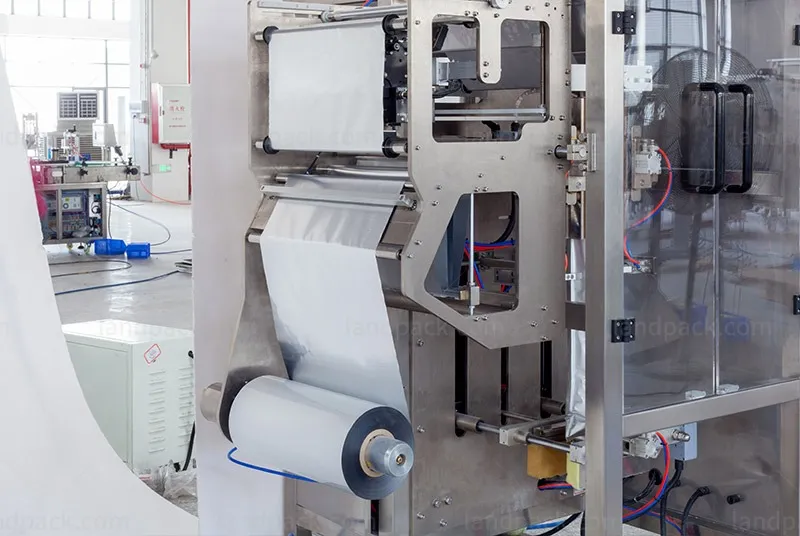

1. Screw feeding  2. Ribbon date printer  3. Roll Film Structure  4. Auger screw measuring  5. 4 side sealing bag former  6. Control panel  7. Pulling Clamping the Film  8. Horizontal sealing

Features:
1. Food-grade SS304 contact parts ensure hygienic and safe powder packaging.
2. Panasonic PLC and touch screen provide simple operation and stable machine control.

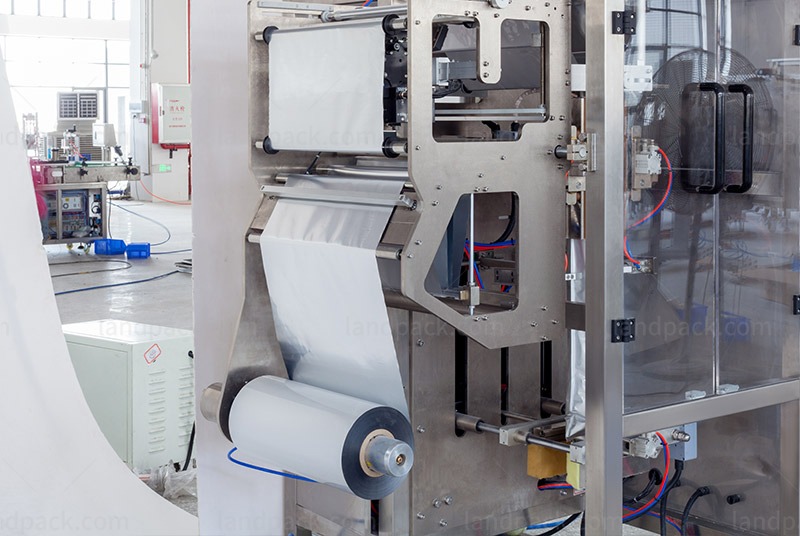

3. Air shaft film loading system enables quick and convenient film replacement.
4. Supports film widths up to 420mm and pouch widths up to 210mm for flexible packaging sizes.

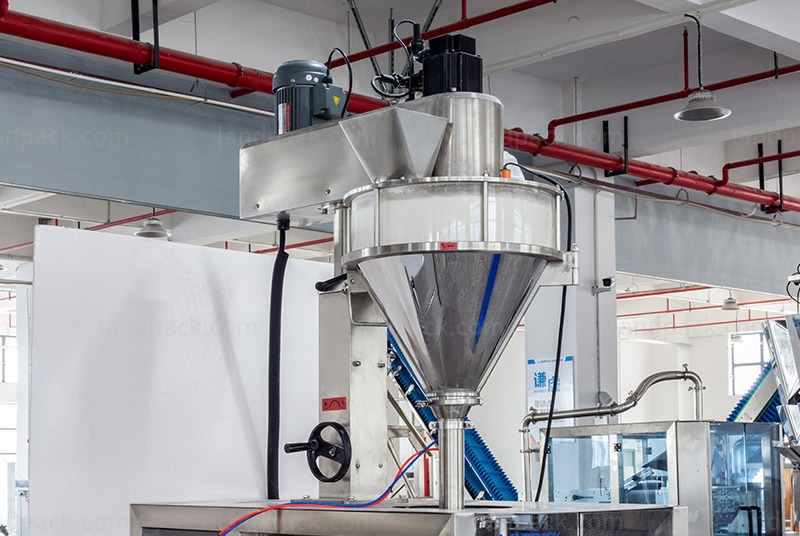

5. 50L servo-driven auger filler with agitator ensures accurate and consistent powder dosing.
6. Integrated air exhaust device removes excess air from pouches, improving package appearance and transportation efficiency.
