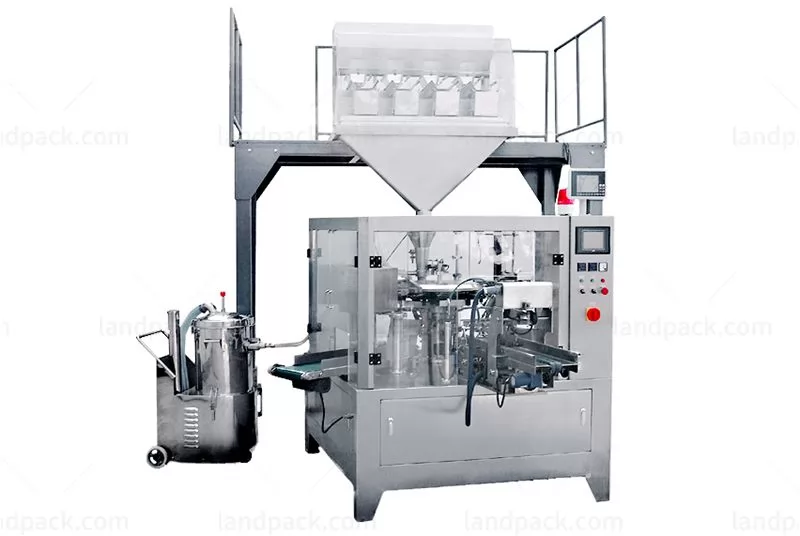

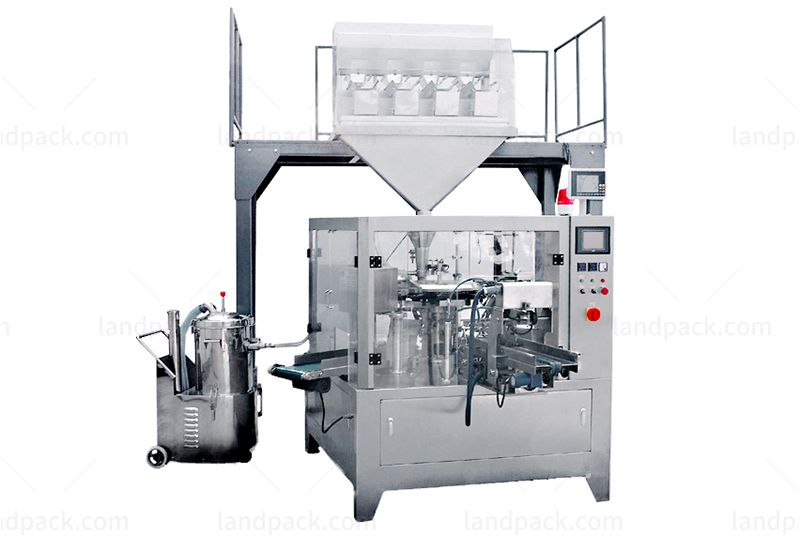

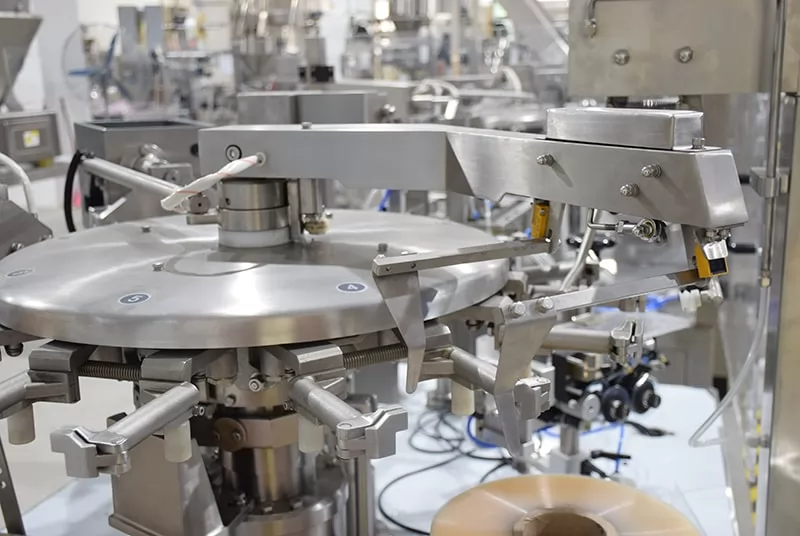

Automatic Fine Particles Rotary Packing Machine With Linear Weigher

  • Application
  • Description
  • Parameter
  • Video

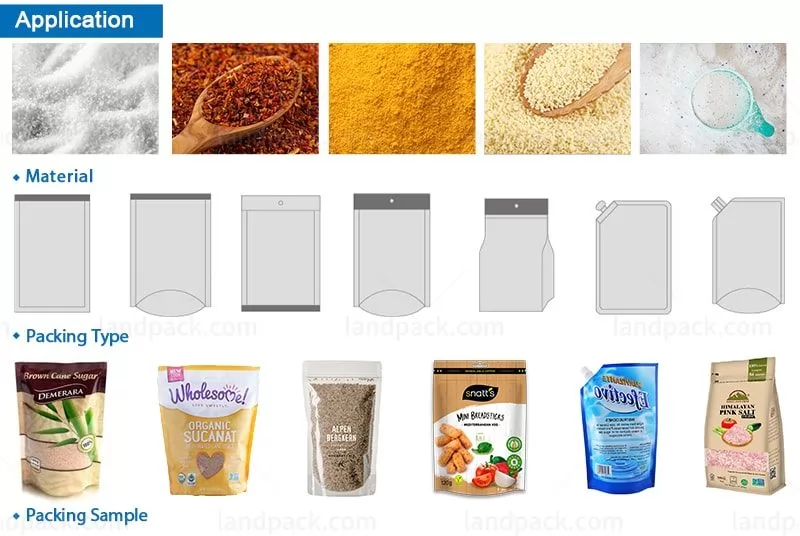

Application:

Suitable for small granule material,such as crystal monosodium glutamate,seasoning,washing powder, pesticides, chemicals, sugar, feed and other small granule material automatic packing.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Rotary packing machine for sugar, salt, monosodium glutamate, etc.

Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.

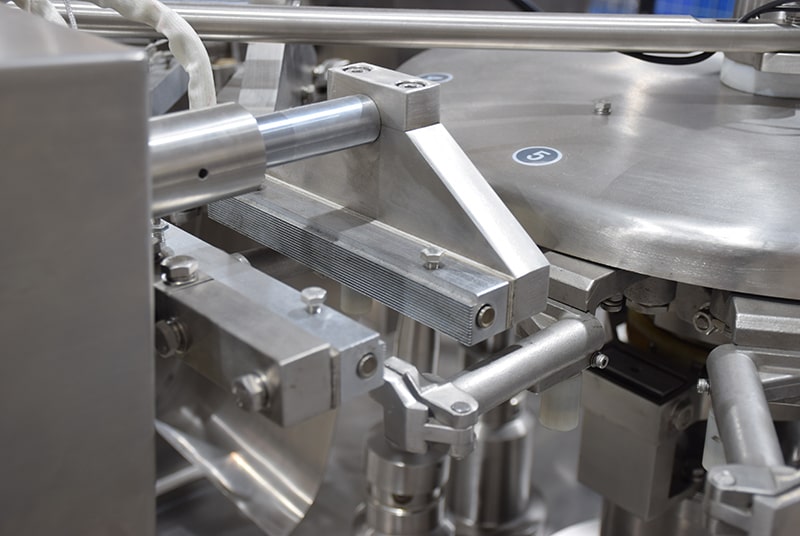

The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.

The part where touch to the materials is made of stainlesss steel and according with the request of GMP.

Working positionSix-working position
Bag materialLaminated film/PE/PP
Bag patternStand-up with zipper & stand-up, spout, flat bag,
Max filling weight10-5000g
Filling accuracy0.5-1.5%
Bag sizeW:100-200mm L:100-350mm (could be customized)
Speed10-60bags/min
Voltage380v 3phase 50/60hz
Total power5.5KW
Compress air0.6m³/min

After receiving your inquiry,We will send you the quotation as soon as possible.
