Automatic Vacuum Pickles Pack Machine, Vacuum Snacks Tofu Pack Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

Any product suitable for vacuum packaging

1. Solid species: candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food, etc.

2. Granule species: grain, refined monosodium glutamate, granular drug, capsule, seed, condiment, granulated sugar, chicken essence, melon seeds, nuts, pesticide, fertilizer, feed etc.

3. Liquid species: detergent, fruit juice, miller wine, soy sauce, vinegar, drinks etc.

4. Thick liquid species: chilli sauce, tomato sauce, peanut butter, jam, bean sauce etc.

5. Materials that can pack in bag

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

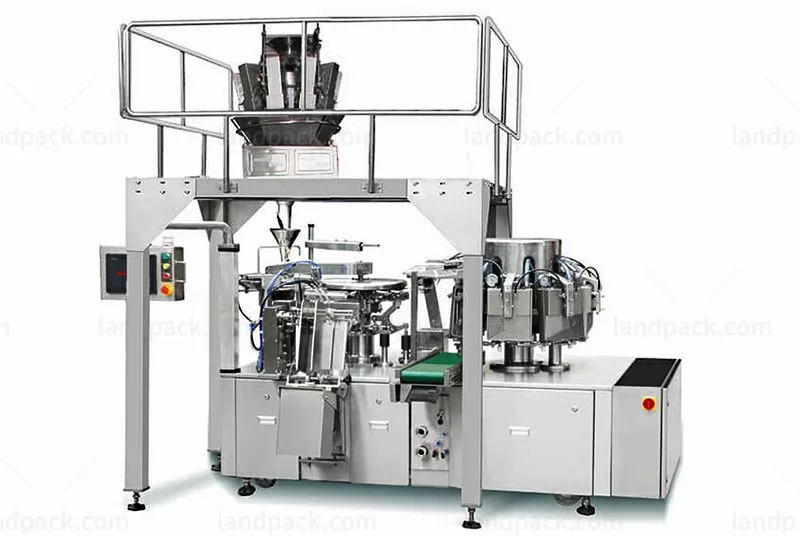

Packing Exambers:    Rotary Pre-made Pouch Vacuum Packaging Machine

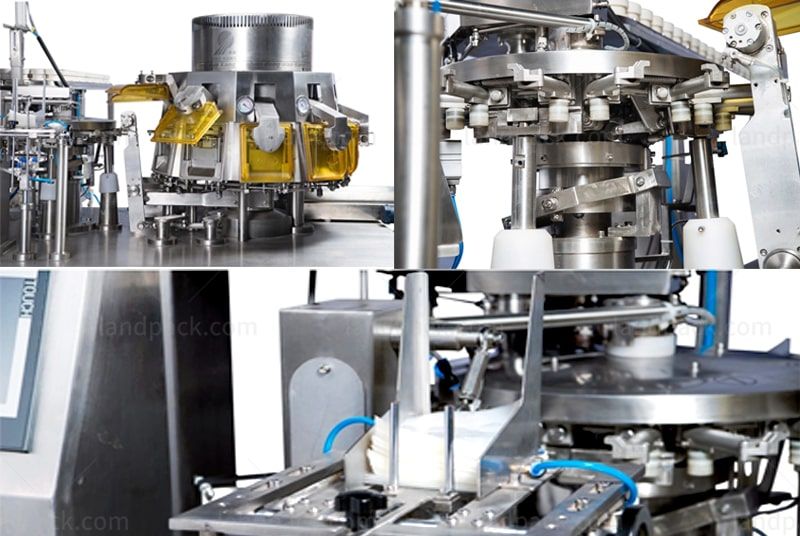

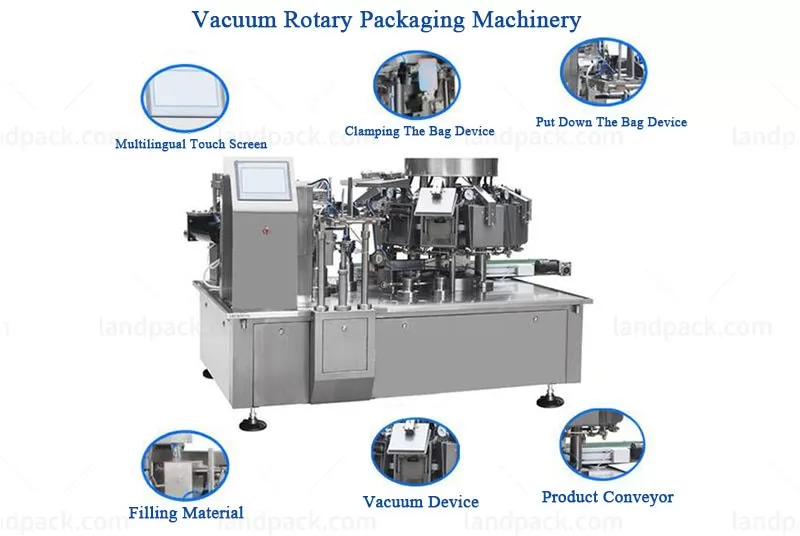

1. Using high technology such as micro computer display and graphic touch panel, the machine can be easily operated and maintained.

2. Being high-performance and high-durability, the filling machine rotates intermittently to fill the product easily while vacuum machine rotates continuously to enable smooth running

3. The width of grippers in filling machine can be adjusted at once by a motor while those in the vacuum chambers are needn't to adjust. The main section of machine are made of stainless steel for excellent durability and hygiene.

4. All filling zone and vacuum chambers are washable.

5. Weighing machine and liquid&paste doser can be combined with this machine Status in the vacuum chamber can be checked through the transparent plastic vacuum shell lids.

The Main Technical Parameters
ModelLD-820V
Bag SizeWidth:70-120mm/120-200mm, Length:80-160mm/150-300mm
Filling Volume10-500g (Depending on type of products)
Capacity30-100bags/min (The speed depends on type of products and packaging material used)The highest can be 100 packs / minuteZipper Bag The heghest can be 40packs/minute
Package AccuracyError≤±1%
Total Power2.5KW/5.5kw (220V/380V,3PH,50HZ)
Demension2100*1400*1700 mm/2600*1900*1700(Length*Width*Height)
Weight1600KGS/3000kgs
Compress Air Requirement≥0.8m³/min supply by user
Pouch TypeAll type of heat sealable performed side seal bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout,Portable bag, zipper bag, hand luggage, edging bag 4 sides, edging bag 3 sides, paper bagetc.
Application Product

1. Solid species: candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food, etc.

2. Granule species: grain, refined monosodium glutamate, granular drug, capsule, seed, condiment, granulated sugar, chicken essence, melon seeds, nuts, pesticide, fertilizer, feed etc.

3. Liquid species: detergent, fruit juice, miller wine, soy sauce, vinegar, drinks etc.4. Thick liquid species: chilli sauce, tomato sauce, peanut butter, jam, bean sauce etc.5. Materials that can pack in bag

Part listGermany SIEMENS PLC and Touch Screen,
France Schneider Frequency Conveter,
Japan ORION Vacuum Pump,
China SHENG LONG Printer,
Taiwan WANSHSIN Main Motor,
China/Japan AISET/OMRON Temperature Controllor,
Japan OMRON Proximoty Swith,
Germany/Japan FESTO/SMC Magnetic Valve,
Germany/Japan/Taiwan FESTO/smc/AIRTAC Cylinder, German IGUS Linear Bearing
Lifetime Warranty Cam BearingCan replace parts as needed

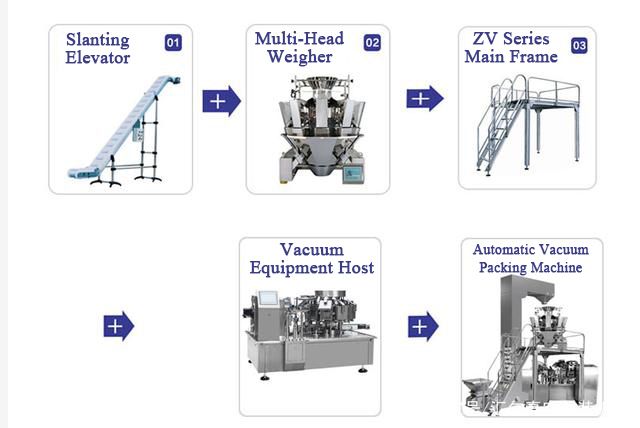

Work Process
Station 1 Giving Bag
Feed many pouches or bags in the bag magazine, our main bag magazine can move up and down, you can feed bags very easily when it moved down, and when it moved up, there are a mechanical arm with two vacuum caps will take bag up and then transmit it to the mechanical gripper on the rotary table.Station 2 Date Printing (option)Station 3 Opening BagTo open stand (flat) pouches from top and bottom with two sets vacuum caps.Station 4 Filling and consolidate 1Measured its weight or volume by scales.There are an opening detection device insertinto the open bagor pouch to expanding it and detect if it is open or not.Station 5 Filling and consolidate 2(Option)Station 6 Bufferingto make bag more straight and to prevent material out from bagStation7 Vacuum and sealingto transform to vacuum equipmentStation 8 Forming and OutputThese 8 stations can change its working function as customized design
