Application:

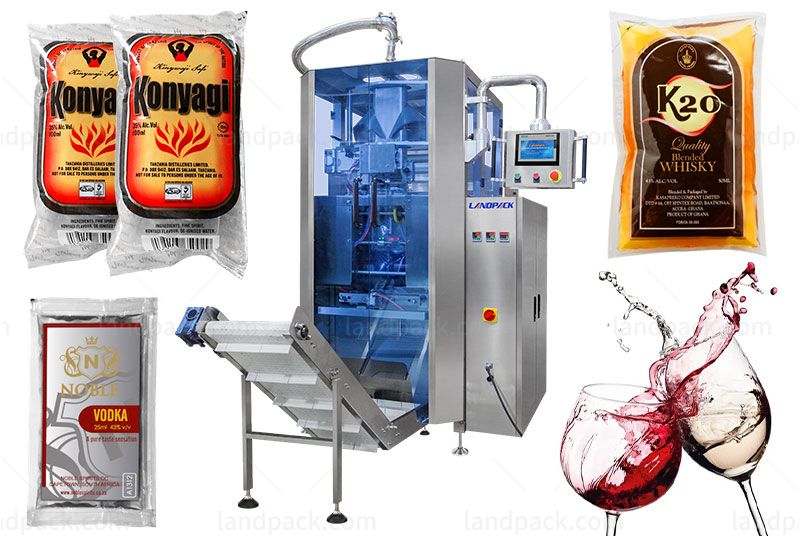

This machine is designed for filling and back side sealing liquid & paste.The filling volume and speed can be adjusted according to operation needs.And we can customize the sealing method according to operation needs. It is widely used in food, beverage and chemical industries. such as alcohol, fruit juice, miller wine, soy sauce, wine, drinks etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Filling packaging machine, suitable for packaging general liquids and viscous sauces.
2. Squeeze and pull the film, squeeze the air, and better preserve the materials.
3. Servo control, accurate measurement.
4. Bag making with identifiable color codes.
5. Servo rotor pump filling system.
| Model | LD-420L | LD-520L |
| Film Width | Max.420mm | Max.520mm |
| Bag Length | 80-300mm | 80-350mm |
| Bag Width | 60-200mm | 100-250mm |
| Range of Measurement | 150-1500ml | 2000ml |
| Film Roll Diameter | Max.320mm | Max.320mm |
| Packaging Rate | 10-60bag/min | 10-60bag/min |
| Power | 220V 50/60Hz 2KW | 220V 50/60Hz 3KW |
| Machine Size(L*W*H) | 1217*1015*1343mm | 1488*1080*1490mm |
| Machine Quality | About 650kg | About 680kg |
| Optional device | 1.Date Printing,2.Hole Punching Device,3.Air-filling Device,4.Tear Notch Device | |
After receiving your inquiry,We will send you the quotation as soon as possible.
