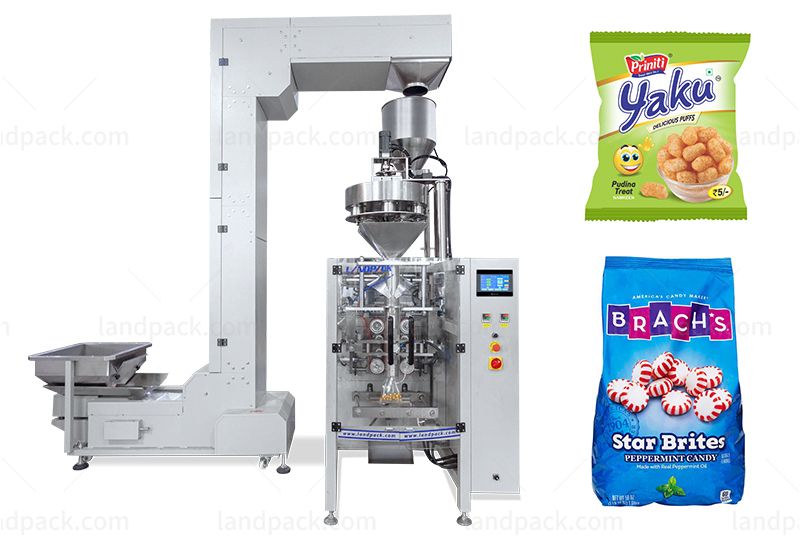

Automatic Grain Pouch Packing Machine With Volumetric Cup

  • Application
  • Description
  • Parameter
  • Video

Application:
Vertical Full automatic volumetric cup filler metering packaging machine, apply to pack bulk grain, slice, short bar material products such as puffy food, popcorn, shrimp chip, salt, sugar, rice, sunflower seed, peanut, beans, nuts, pistachio, peas, instant oatmeal / cereal oats, etc.

Kindly Reminde
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers: Automatic Grain Pouch Packing Machine With Volumetric Cup

It completes the whole procedure of feeding, metering, bagging, date printing charging(exhausting), product out-putting automatically.

A com plete set of equipment is economical.

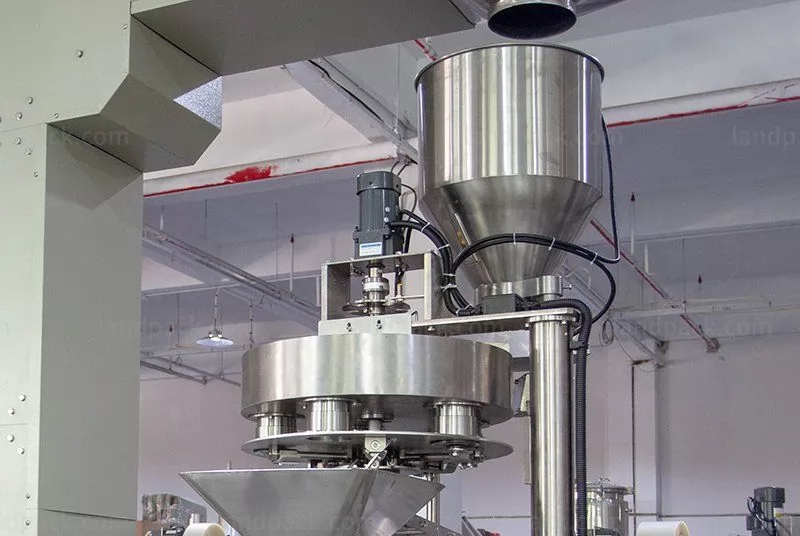

The volumetric cups can be make to open-close model measure equipment.

Model
LD-420CLD-520CLD-720C
Film WidthMax.420mmMax.520mmMax.720mm
Bag Length80-300mm80-350mm100-500mm
Bag Width60-200mm100-250mm180-350mm
Roll DiameterMax.320mmMax.320mmMax.320mm
Film Thickness0.04-0.12mm0.04-0.12mm0.04-0.12mm
Measuring Range150-1500ml2000ml4000ml
Packing Speed5-60bag/min5-60bag/min5-55bag/min
Power220V 50/60Hz 2KW220V 50/60Hz 3KW220V 50/60Hz 3KW
Machine Size(L*W*H)1217*1015*1343mm1488*1080*1490mm1780*1350*2050mm
Machine WeightAbout 650kgAbout 680kgAbout 750kg
Option Device1.Date Printing, 2.Hole Punching Device(Pinhole, Round hole, the butterfly hole),
3.Air-filling Device, 4.Tear Notch Device

After receiving your inquiry,We will send you the quotation as soon as possible.
