Automatic Whole Grains Granule Vertical Packing Machine With TTO Printer

  • Application
  • Description
  • Parameter
  • Video

Application:
Apply to pack bulk grain, slice, short bar material products such as whole grain, oatmeal, cereal oats, puffy food, popcorn, shrimp chip, salt, sugar, rice, sunflower seed, peanut, beans, nuts, pistachio, peas, etc.

Kindly Reminder
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers: grain packing machine price

1. Contact Part SS304 Packing Food Safety.

2. Universal Volumetric cups for measuring different Capacity 300g-1kg.

3. Adopted PLC control, easy to operate, Intelligent Touch screen, turnkey Machine.

4. Optional for TTO printer for Different Brand logos, Bar codes, and QR codes.

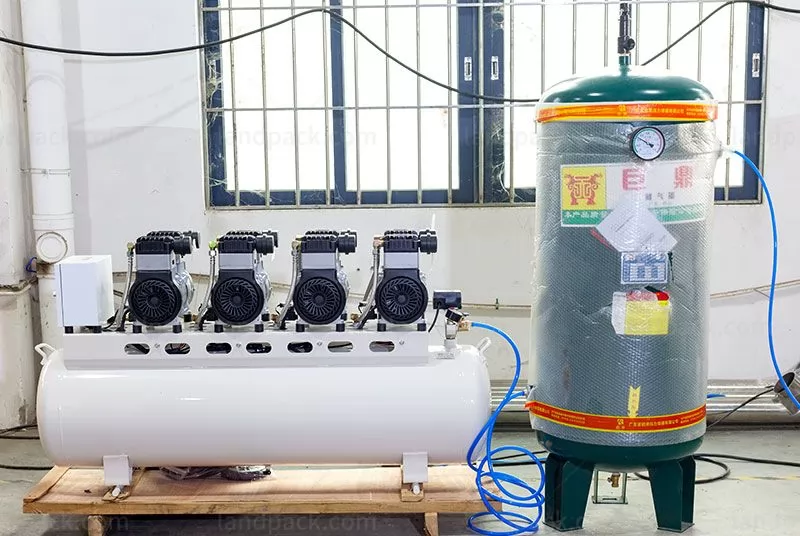

5. Together with an air compressor and 300L gas storage tank, saves labor and electricity.

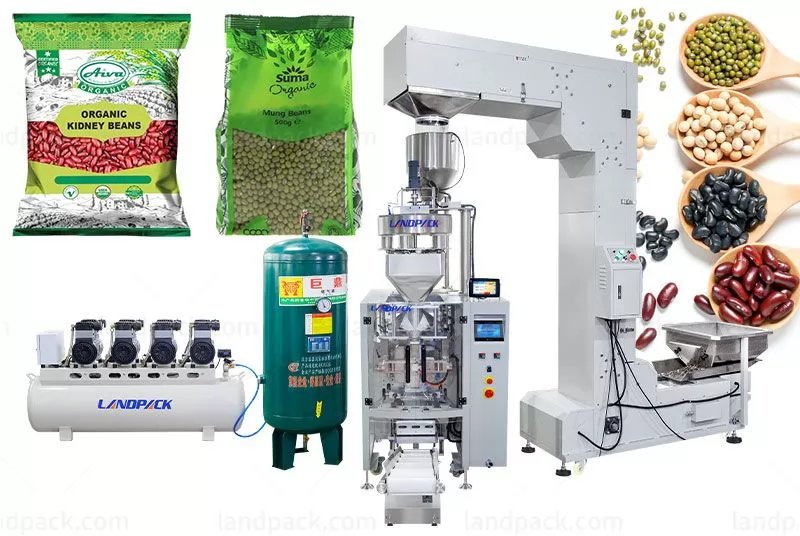

Work Flow:

1. Connect the air Compressor and Storage Tank.

2. Feeding the raw material by Z type Elevator.

3. 30L stainless Storage Hopper.

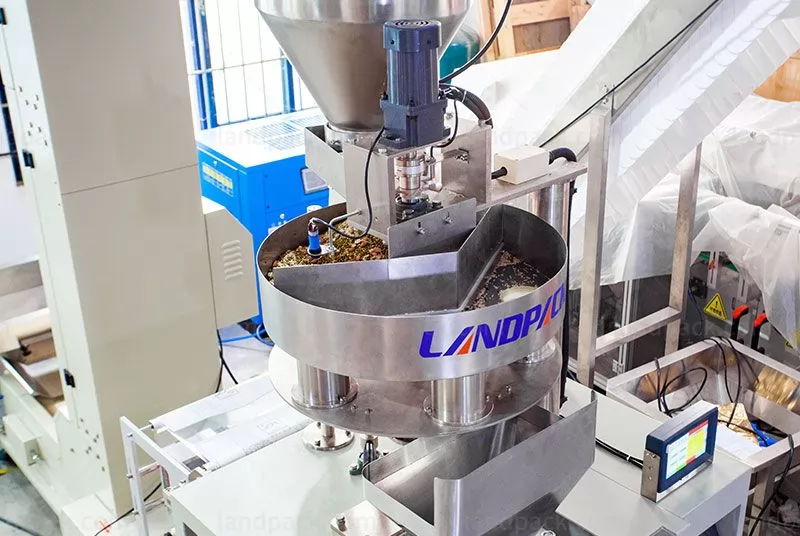

4. Universal Volumetric cups for measuring different Weighing Capacity.

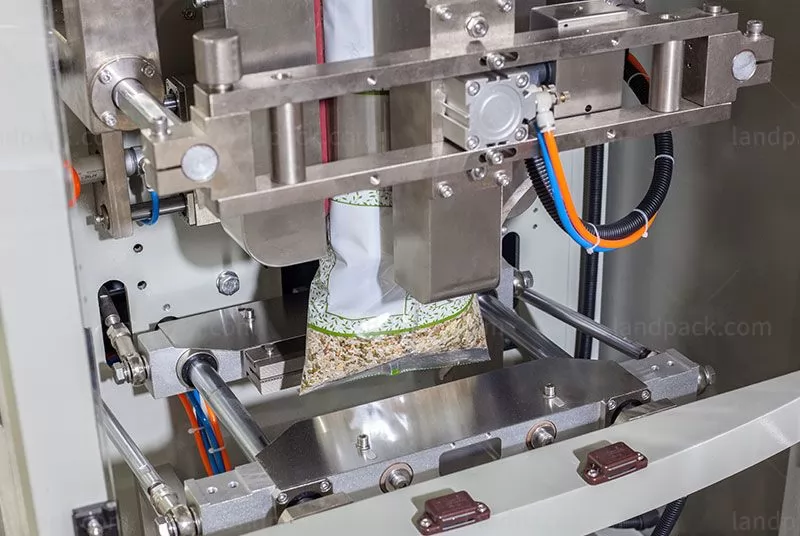

5. LD-420 Main Packer, Control by PLC for bag forming and sealing.

6. TTO printer for Different Brand Logo, Bar code, QR code, batch No. , production date.

7. Finished Bag Conveyor.

8. Sorting Table.

Model
LD-420
LD-520
LD-720
LD-900
Film width
Max.420mm
Max.520mm
Max.720mm
Max.900mm
Bag length
80-300mm
80-350mm
100-500mm
100-600mm
Bag width
60-200mm
100-250mm
180-350mm
260-430mm
Film roll diameter
Max.320mm
Max.320mm
Max.320mm
400mm
Packaging rate
5-60 bags/min
5-60 bags/min
5-55 bags/min
5-20 bags/min
Range of measurement
150-1500ml
2000ml
4000ml
1-25L
Film thickness
0.04-0.08mm
0.04-0.12mm
0.04-0.12mm
0.04-0.12mm
Power
220V, 50/60Hz, 2kw
220V, 50/60Hz, 3kw
220V, 50/60Hz, 3kw
220V, 50/60Hz, 4.5kw
Machine size(LxWxH)
1217*1015*1343mm
1488*1080*1490mm
1780*1350*2050mm
2305*1685*2725mm
Machine quality
About 650kg
About 680kg
About 750kg

After receiving your inquiry,We will send you the quotation as soon as possible.
