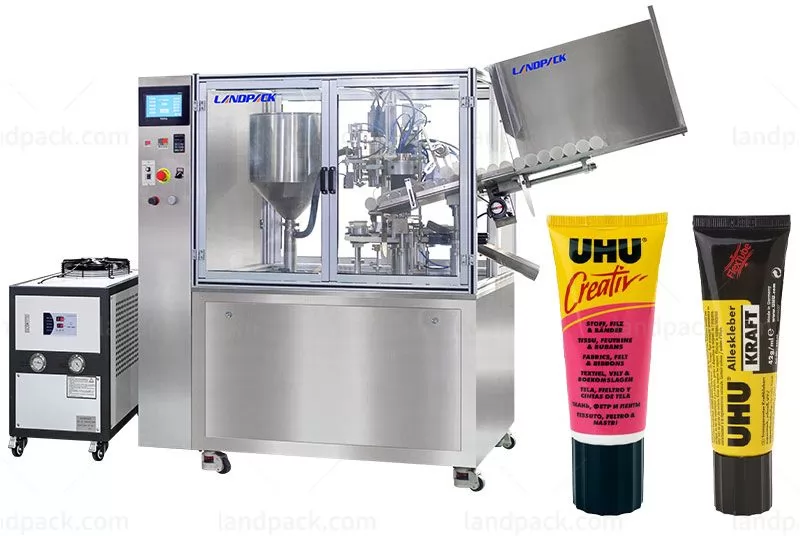

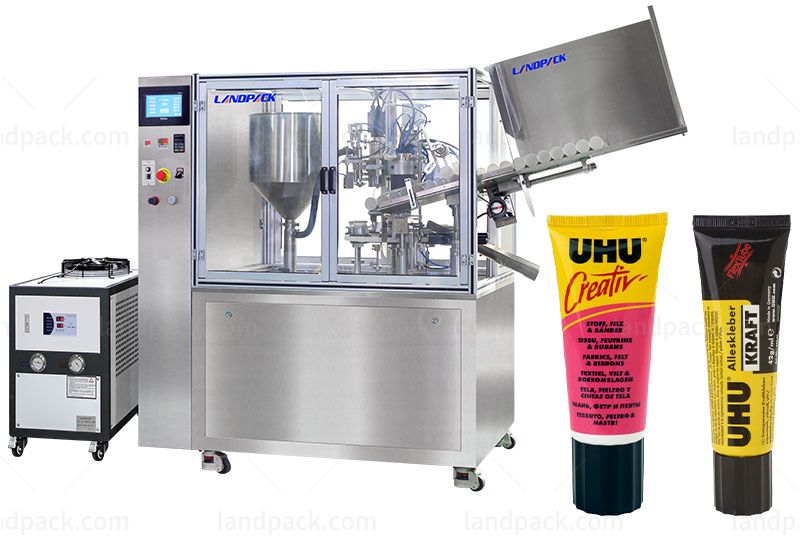

Automatic Chemical Soft Tube Filling Sealing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

It is sutable for medicine, daily chemical, food, chemical and other industries, such as peanut butter, ointment, adhesive, AB glue, epoxy glue, skin cream, hair dye, shoe polish and other liquid or paste-like materials filling and sealing.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:Automatic Chemical Soft Tube Filling Sealing Machine

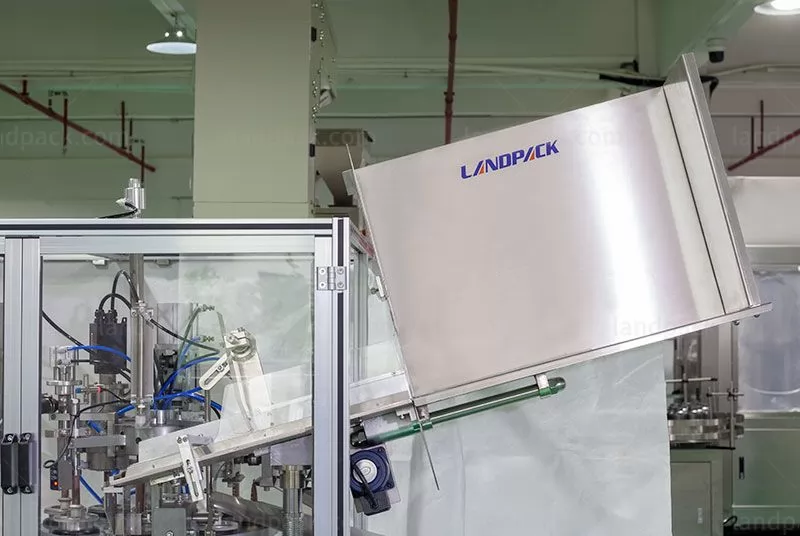

The machine adopts a fully enclosed dust cover, the machine body is made of SUS304 material, and the appearance is unique and beautiful;

The replacement of the base is suitable for filling and sealing of various specifications of pipes, the sealing appearance is neat and tidy, and the sealing is firm;

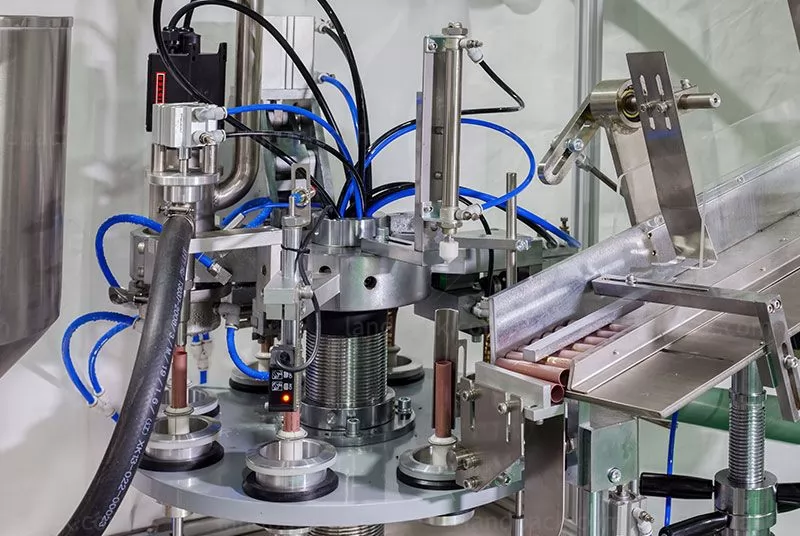

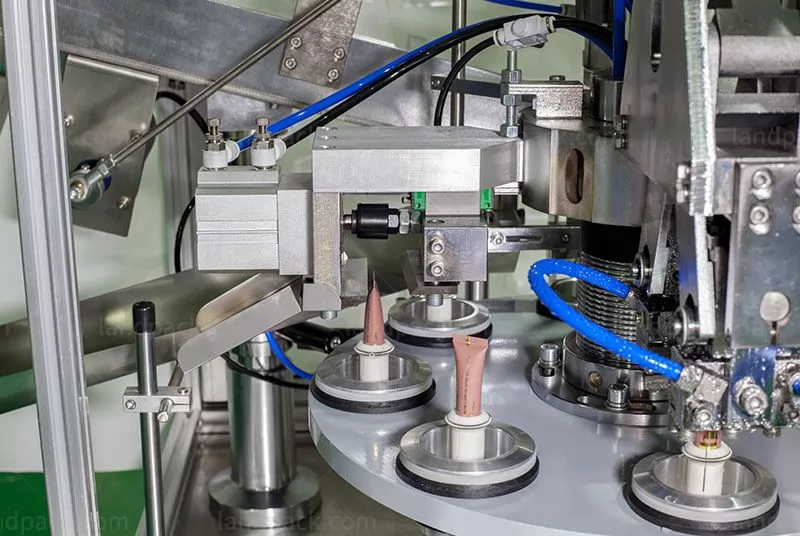

The photoelectric benchmarking workstation uses high-precision probes, stepping motors and other precise control patterns to be located in the correct position.

The filling speed and measurement accuracy are convenient and adjustable, with high adjustment accuracy and good stability;

The machine can be equipped with various filling methods of different specifications to meet the filling requirements of different viscosities;

The internal heating is heated by Leister hot air gun, and the external water-cooling device is configured to cool down to make the sealing more beautiful;

The typing station automatically prints the word code on the position required by the process;

All parts of the machine contacting materials are made of stainless steel SUS304;

Adopt PLC control system, simple operation, intuitive and convenient, complete functions, stable operation.

ModelLD-TS100
Yield20-40bottle/min
Pipe DiameterΦ10mm-Φ50mm (Customizable)
Tube Height20mm-250mm (Customizable)
Control systemPLC
Power supply220V、50Hz
Airconsumption0.3m³/min
Dimension2180mm*930mm*1870mm(L*W*H)
Equipment Material
304
Weight700KG

After receiving your inquiry,We will send you the quotation as soon as possible.
