Application:

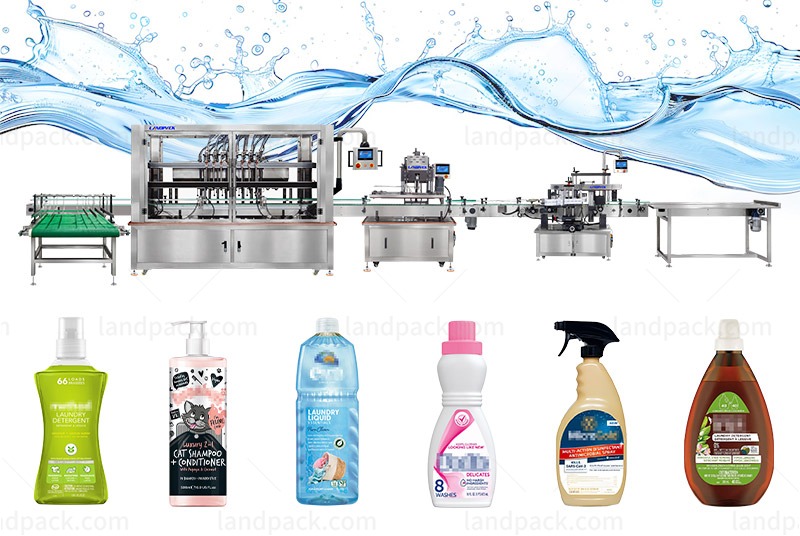

The Automatic Chemical Liquid Filling Machine is designed for various cleaning liquids with different viscosities, such as laundry detergent, dishwashing liquid, floor cleaner, glass cleaner, toilet cleaner, shampoo, shower gel, hand wash, body lotion, and cleaning agents.
Package Type:
The Automatic Chemical Liquid Filling Machine is suitable for HDPE bottles, PET bottles, plastic bottles, round bottles and square bottles with screw caps and customized bottle designs.
Workflow:

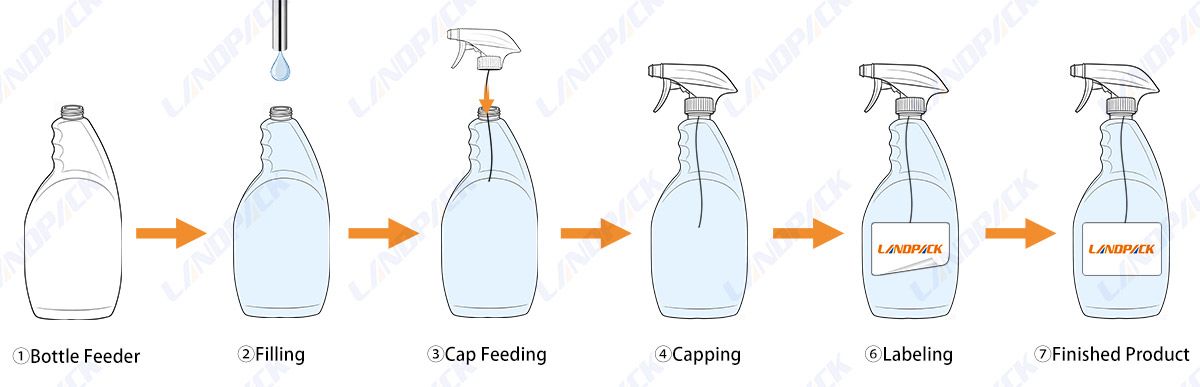

Bottle Conveying → Bottle Positioning → Liquid Filling → Screw Capping → Double-Side Labeling → Finished Product Collection

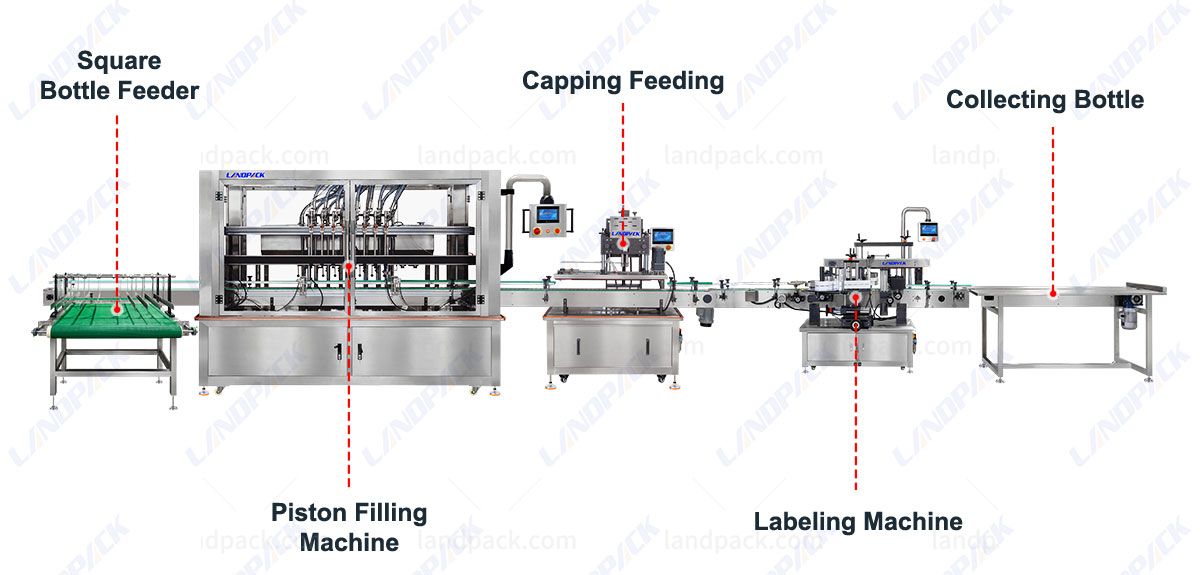

Machine Key Components:
Features:
1. Adjustable bottle feeder supports both round and square bottles with flexible size adjustment.

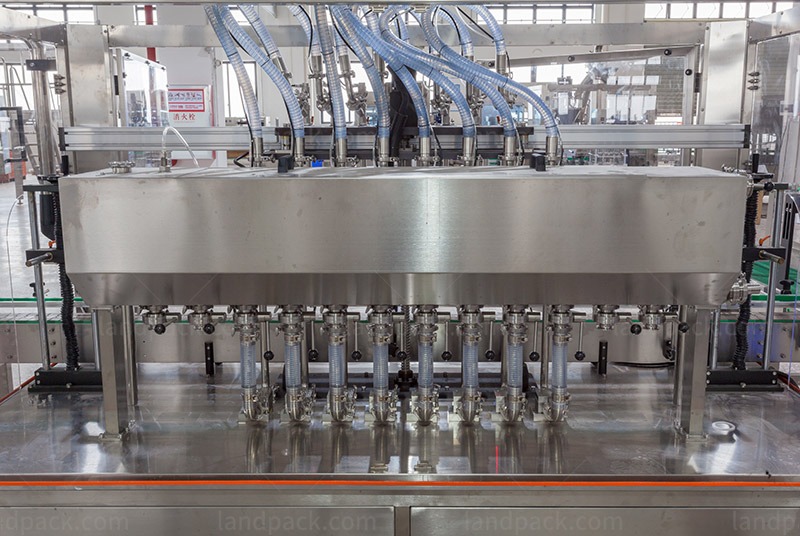

2. Servo-controlled gear pump filling system ensures high metering accuracy and stable filling performance.

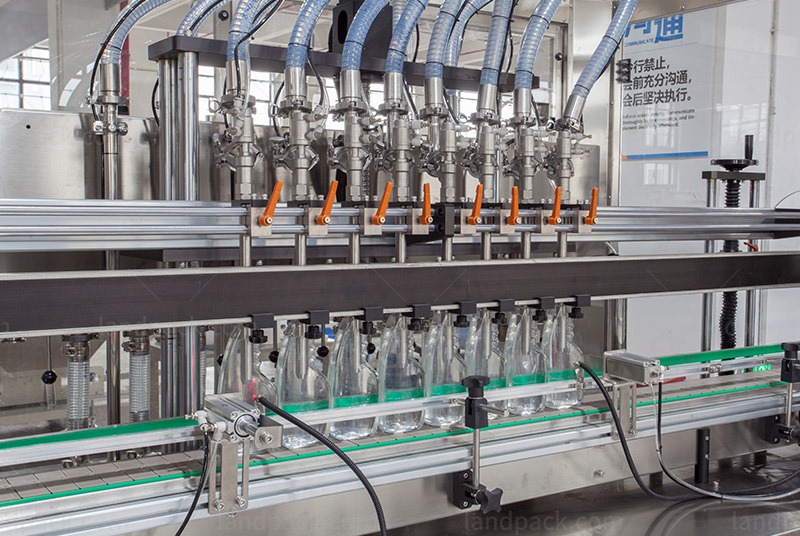

3. Linear filling structure adapts to different bottle sizes without changing molds, only simple adjustments are required.
4. Four-wheel capping system supports various screw cap sizes through quick adjustment.
5. Customized U-shaped conveyor design improves bottle transfer efficiency and meets different layout requirements.
6. Double-side labeling machine supports one-side, two-side and round bottle labeling with high flexibility.

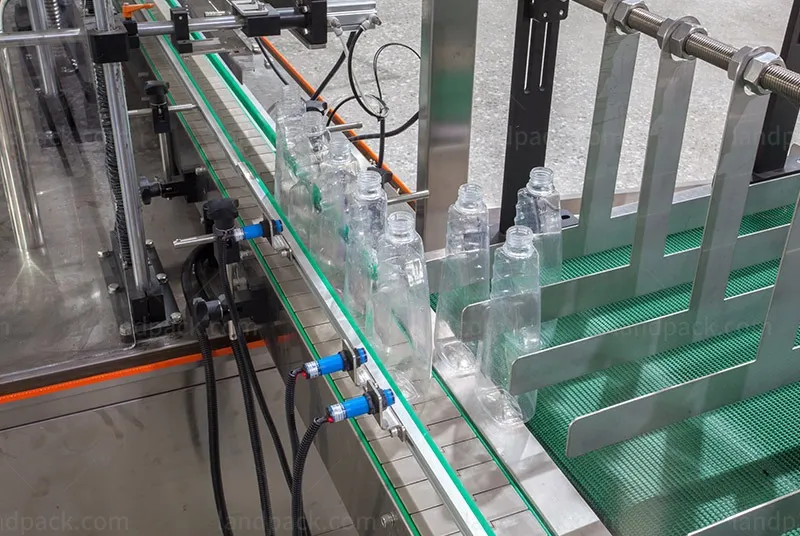

7. Bottle sensor detection enables no bottle no filling, no capping and no labeling function.
8. PLC touchscreen control provides simple operation, stable running and convenient parameter adjustment.
| Automatic Bottle Feeder | |||
| Machine Model | LD-LP800N | ||
| Power Supply | 220V/110V, 50-60Hz, 200W | ||
| Turntable Diameter | 800mm | ||
| Suitable Bottle Diameter | 40-130mm | ||
| Suitable Bottle Height | 30-200mm | ||
| Working Speed | 40-60 bottles/min(depending on bottle size) | ||
| Package Size | 1230*1010*1260mm | ||
| Gross Weight | 141kg | ||
| Liquid Bottle filling machine | |||
| Model | LFZ-06 | ||
| Filling Range | 50-1000mlt (customizable) | ||
| Production Speed | <15-50 bottles/min | ||
| Measurement Accuracy | ±1% | ||
| Power | 2.5KW | ||
| Voltage | 220V, 50Hz | ||
| Air consumption | 0.6-8Mpa | ||
| Weight | 650kg | ||
| Dimension | L4000*W1320*H2090(mm) | ||
| Automatic capping machine | |||
| Model | LFX-JX-01(Four wheel capping) | LFX-GS-150(Eight wheel capping) | LFX-GS-250(Six wheel capping) |
| Capacity | 20-50Bottles/min | 40-100Bottles/min | 30-80Bottles/min |
| Bottle cap diameter | Φ22mm-Φ80mm（Could be customized） | Φ18mm-Φ80mm（Could be customized） | Φ18mm-Φ80mm（Could be customized） |
| Bottle diameter | Φ35mm-Φ140mm（Could be customized） | ||
| Bottle sealing height | 38mm-300mm（Could be customized） | ||
| Power | 1.5KW | 2KW | 1.5KW |
| Voltage | 220V、50HZ | ||
| Air pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.5-0.7Mpa |
| Weight | 250kg | 350kg | 300kg |
| Dimensions | H3000*W800*L1600mm | H3120*W1544*L2122 | H3100*W1244*L2122 |
| Double-sided labeling machine | |||
| Model | LFT-SM-00 | ||
| Labeling speed | 10-40 bottles/min | ||
| Labeling Accuracy | ±1mm (Does not contain product and label errors) | ||
| Max Label width | 200mm | ||
| Applicable Product Size | H≤400mm, T≤100mm (Can be customized) | ||
| Applicable inner diameter of paper | Φ76.2 mm | ||
| Applicable outer diameter of paper | Max.Φ350mm | ||
| Air Source | 4-6KG, 30L/min | ||
| Dimension | 3050*1450*1800mm | ||
| Voltage | 220V, 50Hz, 3500W | ||
| Weight | 500KG | ||
After receiving your inquiry,We will send you the quotation as soon as possible.
