Chocolate Bar Packaging Machine | Candy Packing Machine

  • Application
  • Description
  • Parameter
  • Video

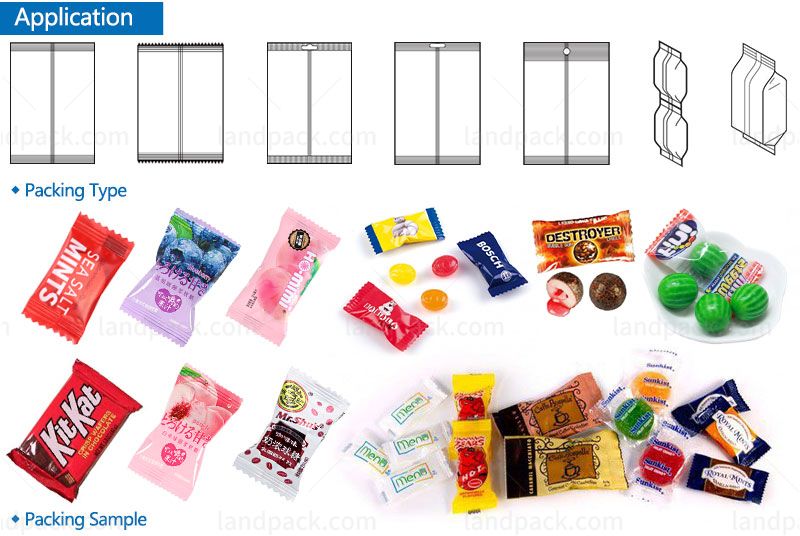

Packaging various kinds of regular objects like candy, chocolate,  chewing gum and suit for square, spherical, disc, cylindrical, kinked, oval and all kinds of special-shaped candies and solid blocks.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    Chocolate Bar Packaging Machine | Candy Packing Machine

 Servo motor control, Bag length can be set and cut in one step,saving time and film.

 Interface features easy and quick setting and operation

 Self failure diagnosis, clear failure display

 High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

 Temperature independent PID control, more suitable for packaging different materials

 Positioned stop function, without sticking knife or wasting film.

 Simple driving system, reliable working, convenient maintenance.

 All control is realized through software,easy for function adjusting and technical upgrade.

Film width50-120mm
Bag length10-50mm
Bag width10-30mm
Product height4-25mm
Film roll diameter320mm
Packaging rate50-900 bags/min
Power380v,50/60 Hz ,3.2kw,
Machine size3850x1100x1800mm
Machine quality720kg
Film materialOPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP Aluminum Coating Film/ Aluminum Film

After receiving your inquiry,We will send you the quotation as soon as possible.
