Application:

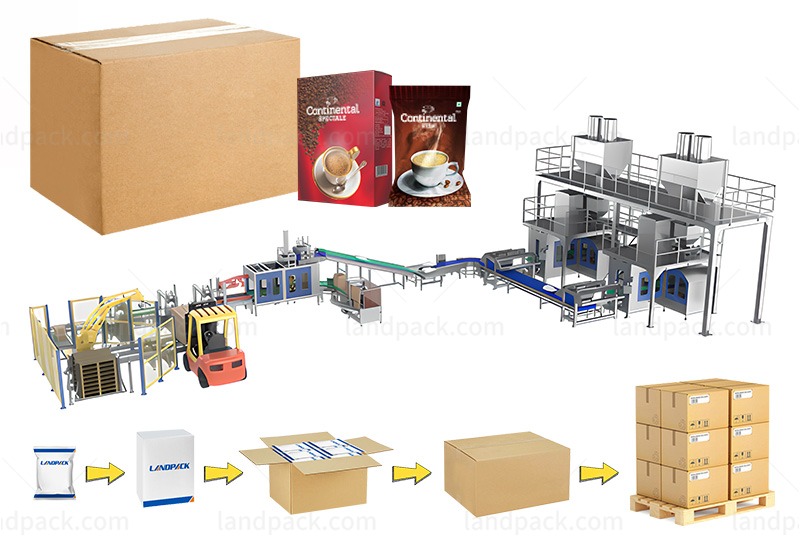

This automatic cartoning line for bagged powder is made up of a vertical packing machine set, a checkweigher, a one-to-two intelligent cartoning robot, a case erector, a case sealer, and a palletizing robot.
The line uses our self-designed high-speed, flexible parallel robot for picking and placing. This ensures that products stay secure during fast handling without falling, even at high speeds. It's widely used in the automatic detection, sorting, arranging, handling, and cartoning of soft-bag and boxed products, such as powder material like milk powder, protein powder, flour, detergent powder, etc.
Kindly Reminder:
We have an experienced team of R&D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

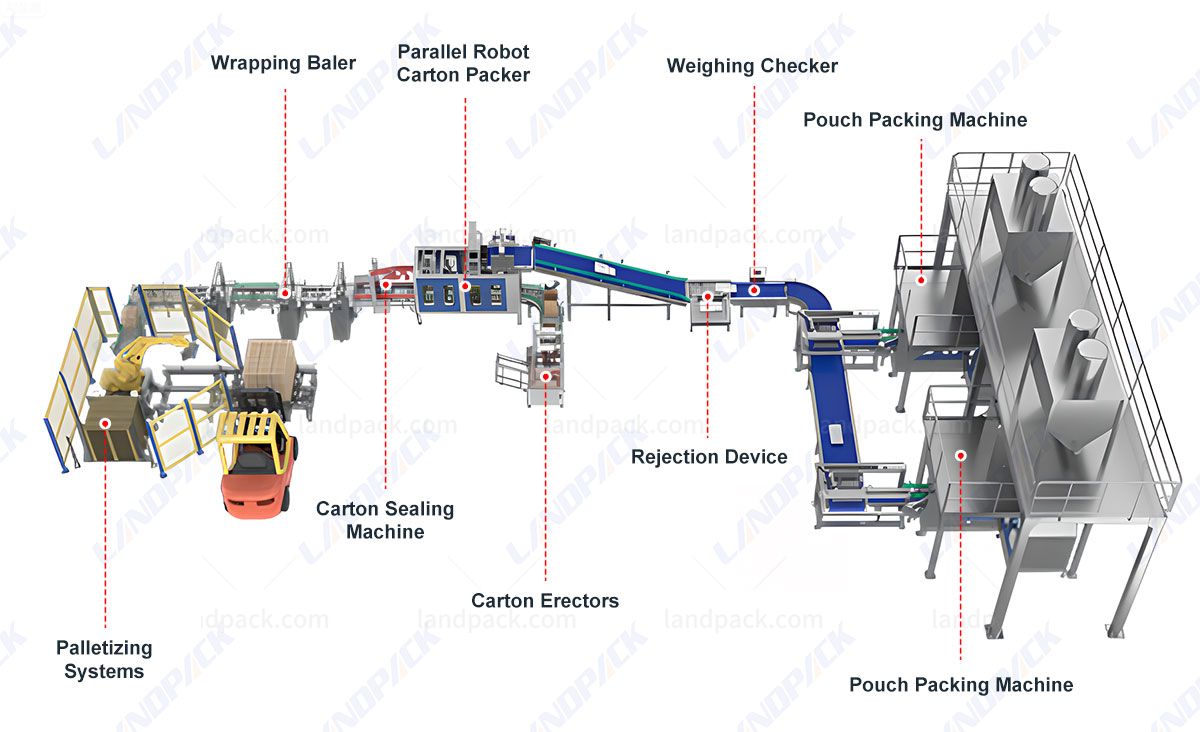

Packaging System Composition:
Features:
1. Full Servo Drive Case Packer: Provides precise control with speeds of 60-70 cases per minute for efficient packing.
2. Norson Glue Dispenser: Known for its stable and durable operation in industrial applications.
3. Robotic Carton Packer: Offers strong compatibility to accommodate various product placement requirements.
4. Customizable Packaging Line: Designed to handle larger product dimensions, catering to specific packaging needs.

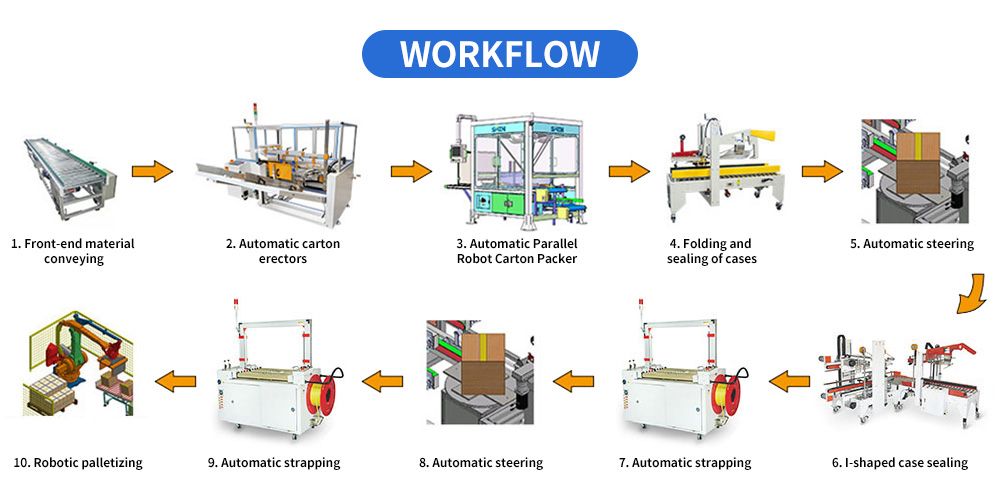

Workflow:

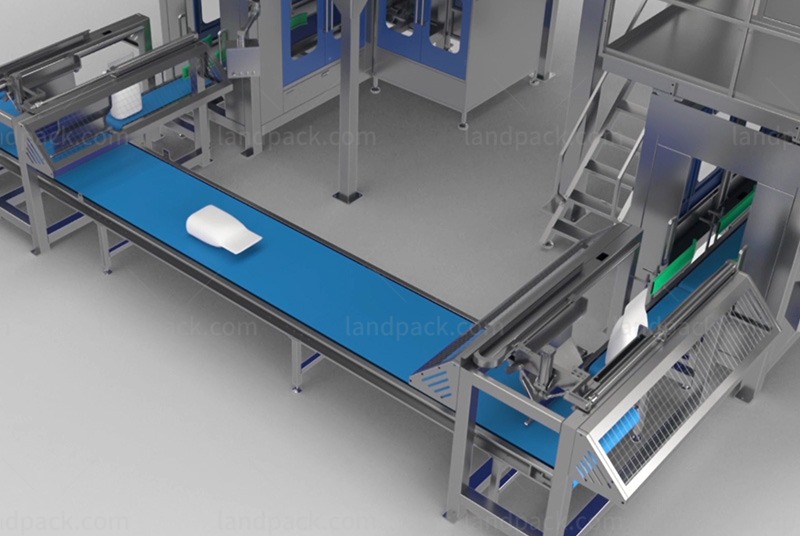

1. Front-end material conveying

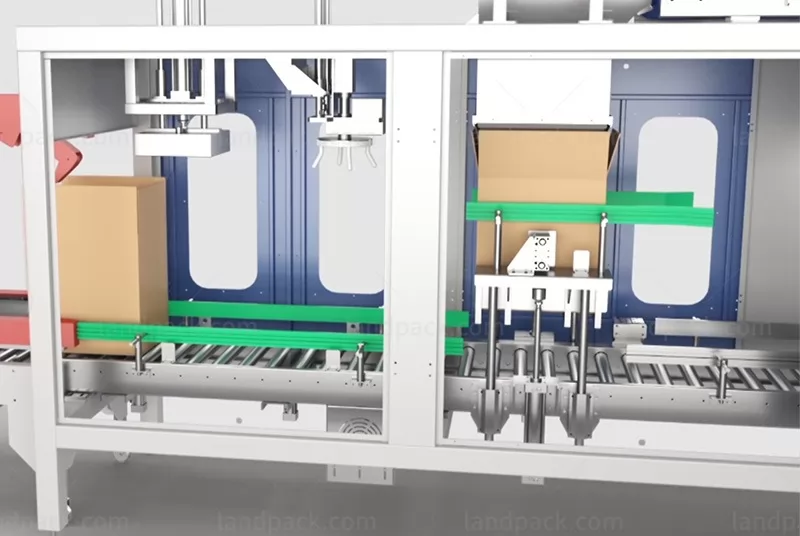

2. Automatic carton erectors
3. Automatic Parallel Robot Carton Packer
4. Folding and sealing of cases
5. Automatic steering
6. I-shaped case sealing

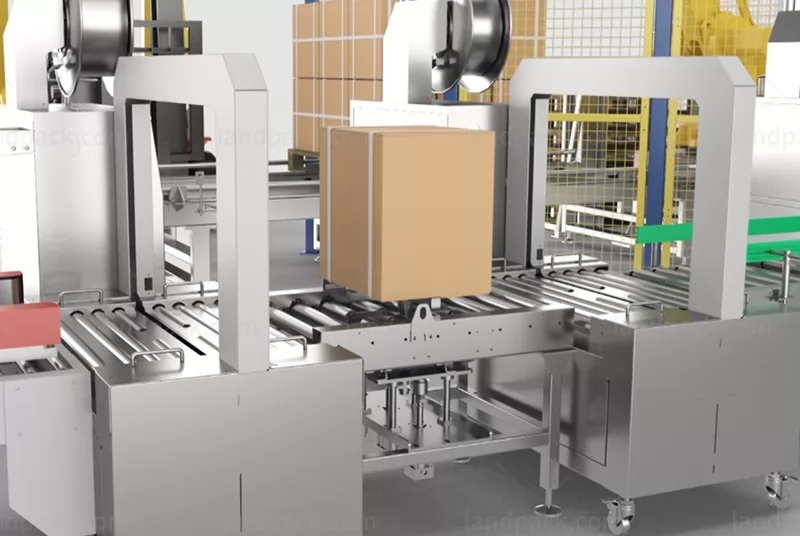

7. Automatic strapping
8. Automatic steering
9. Automatic strapping
10. Robotic palletizing
| Box Case Sealer Sealing Machine | |||||
Model | LD-ZHJ300 | ||||
Power supply | 220V, 50Hz, 0.75kW | ||||
Air pressure requirement | 0.5-0.8MPa | ||||
Machine material | Aluminum + stainless steel | ||||
Applicable | L: 120-300mm, W: 30-150mm, H: 20-60mm | ||||
Size of carton | Customizable | ||||
| Box material | 300-450g cardboard paper, corrugated paper | ||||
Working speed | 30-50 cartons/min | ||||
Machine size | 4008*1354*1633 mm | ||||
Weight | About 1500kg | ||||
| Carton erecting machine | |||||
Carton opening speed | 10-12 cartons/min | ||||
Carton size range | L: 270-450*W: 150-400*H: 100-400mm (Min and max cannot exist at the same time) | ||||
Power supply | 220V, 50/60Hz, 1 Phase | ||||
Power | 2400W | ||||
Adhesive tape width | 48/60/75mm | ||||
Carton storage quantity | 80-100pcs(800-1000mm) | ||||
Air consumption | 450NL/min | ||||
Air compressing | 6kg/cm³ | ||||
Discharge table height | 600+30 mm | ||||
Machine size | L2100*W2100*H1450mm | ||||
Machine weight | 450Kg | ||||
| Automatic Carton Packing Machine | |||||
Model | LD-B8 | LD-B18 | LD-B30 | LD-B42 | LD-B48 |
Capacity | 480case/h | 1100case/h | 1800case/h | 2500case/h | 2800case/h |
Air consumption | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ | AC380V, 50HZ |
Power | 3.7KW | 3.7KW | 4.5KW | 4.5KW | 5.2KW |
Suitable products | Glass bottles, pet bottles, tin cans, bags, small boxes, and so on(customized) | ||||
Packing way | Paper carton packer, plastic boxes(customized) | ||||
Packing method | Side push, drop, servo, sprocket, robot, spider hand(customized) | ||||
| Carton Box Case Sealer | |||||
Voltage | 220V, 60HZ | ||||
Table height | 620-900mm | ||||
Tape | W: 48-79mm | ||||
Carton size | L: 200-600*W: 150-500*H: 150-500mm | ||||
Machine weight | 165KG | ||||
After receiving your inquiry,We will send you the quotation as soon as possible.
