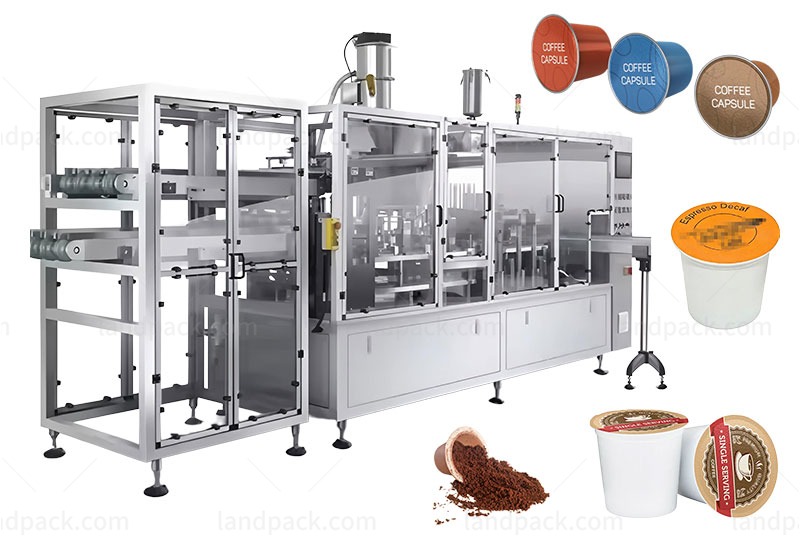

Application:
This linear K-cup filling machine is designed for packaging of coffee powder and similar fine powders into capsule cups such as ground coffee, espresso powder, milk powder, cocoa powder, instant drink powder, protein powder, and nutritional supplements.
Package Type:
Suitable for premade capsule cups (K-cup, Nespresso-compatible) sealed with pre-cut aluminum foil lids or roll film.Supports accurate dosing for powder products.
Workflow:
1. Cup Feeding, 2. Multi-lane powder filling,3. Tamping, 4. Lid placement, 5. Heat sealing, 6. Finished capsule output

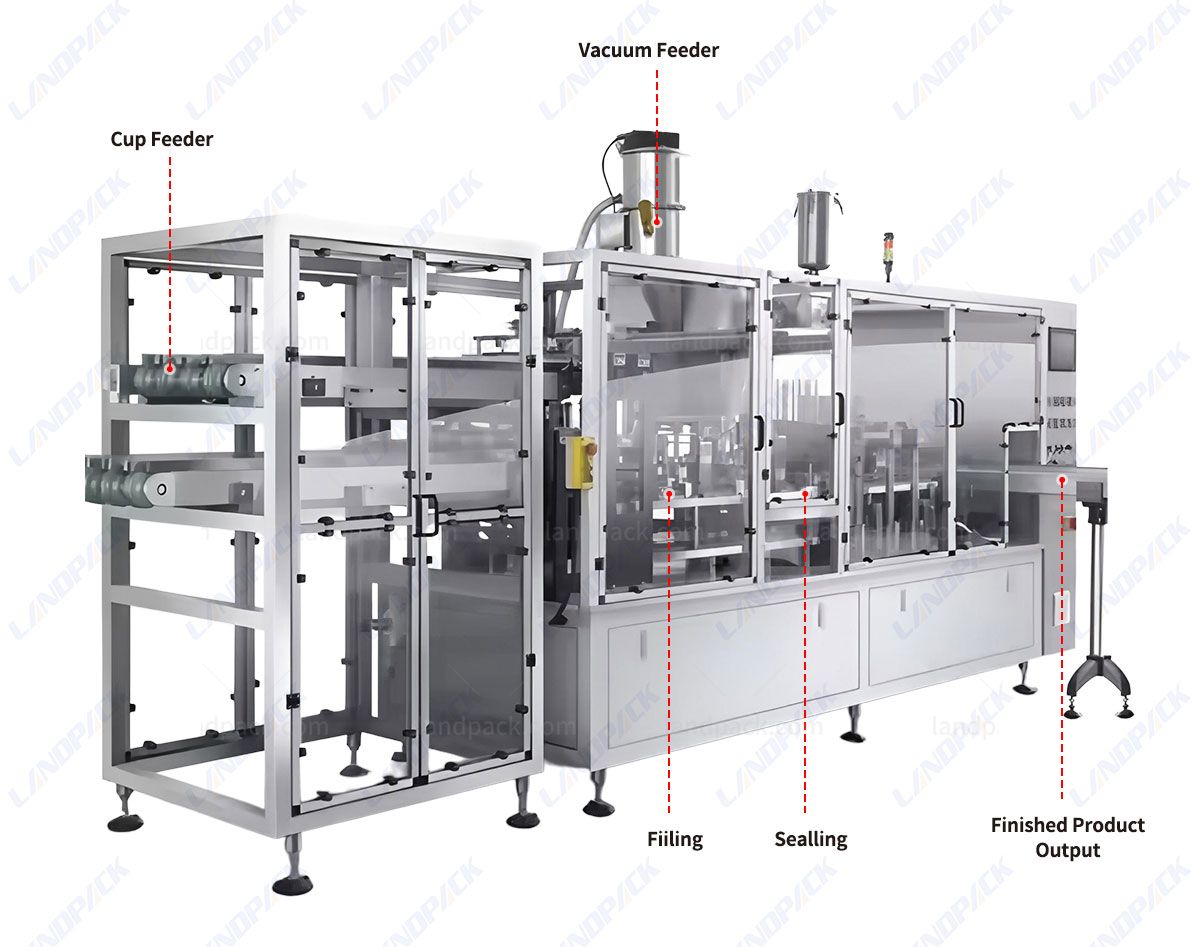

Machine Structure Overview:
1. Vacuum Feeder 2. Cup Feeder, 3. Finished Product Output, 4. Filing Sealing
Feature:
1. All-in-one system integrates powder filling, cup sealing and capping with one-key operation.
2. Stable output of 800–1000 cups/hour, reducing labor and improving efficiency.

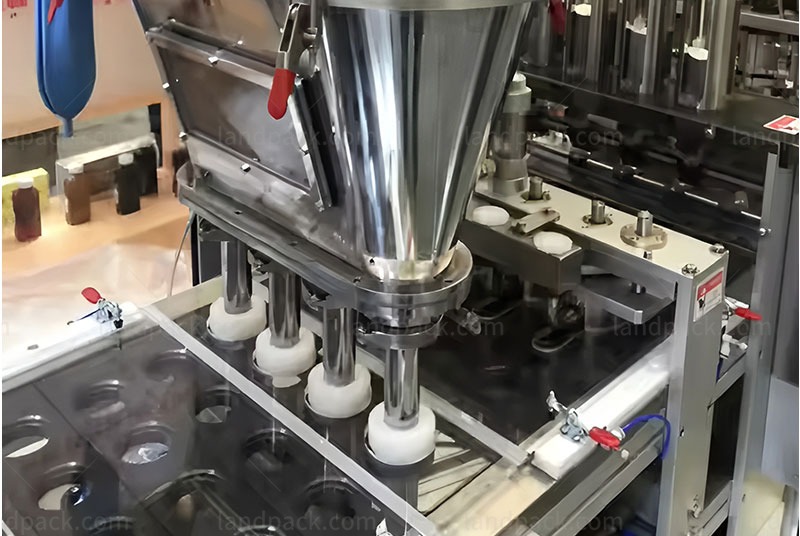

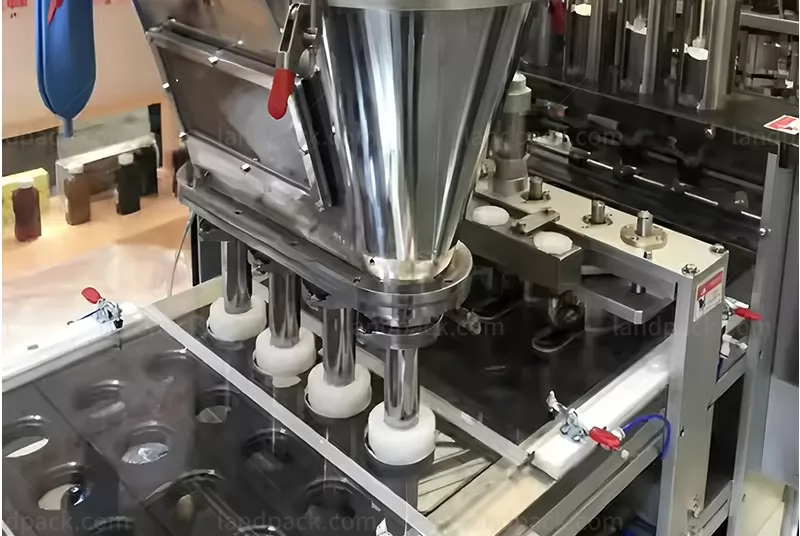

3. Auger filling system with mixing function ensures smooth feeding and prevents clogging.
4. PLC + touch screen control with servo system for precise and stable operation.
5. High-quality components (Schneider, Omron, Airtac) ensure reliability and accuracy (±1℃ control).
6. Full 304 stainless steel structure for hygiene, durability and easy cleaning.
| Specification | |||||
Production Capacity | 800-1500cups/hour | ||||
Measurement | Screw head filling (4 heads) | ||||
Filling Range | 5-10g ( Can be customized ) | ||||
Size (L) | 1500*(W)1200*(H) 1700mm | ||||
Voltage | 220V,50/60HZ,2.2kw | ||||
Weight | 500kg | ||||
Air Supply | 1m/points, 0.6-0.75Mpa | ||||
Structure | 304 stainless steel body | ||||
After receiving your inquiry,We will send you the quotation as soon as possible.
