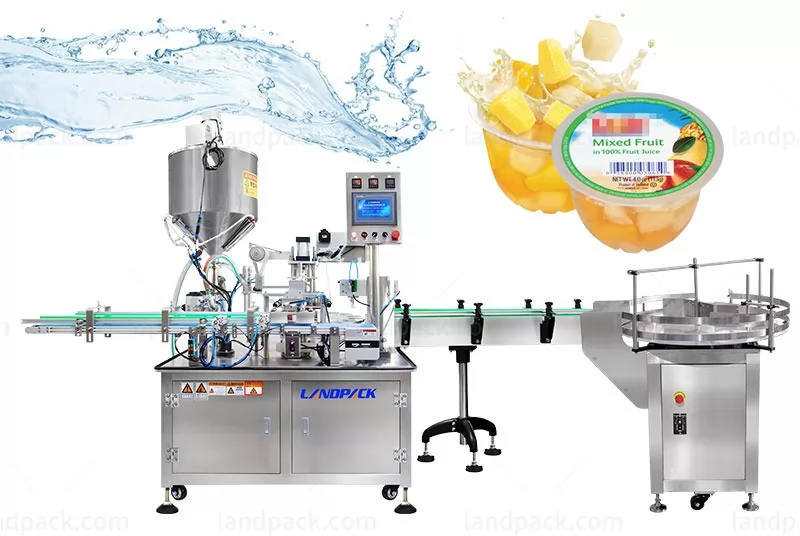

Automatic Rotary Cup Filling & Sealing Machine

Application:
This automatic rotary cup filling and sealing machine is engineered for packaging granule and liquid mixied products such as fruit cup, jelly, yogurt, wet pet food , and prepared meals in premade cups. The system integrates cup feeding, dual filling (solid + liquid), roll film placing, heat sealing and discharge.

Package Type:
Suitable for premade plastic cups sealed with roll film or pre-cut lids.

Supports mixing filling (granule + liquid), providing leak-proof, hygienic packaging for retail products.

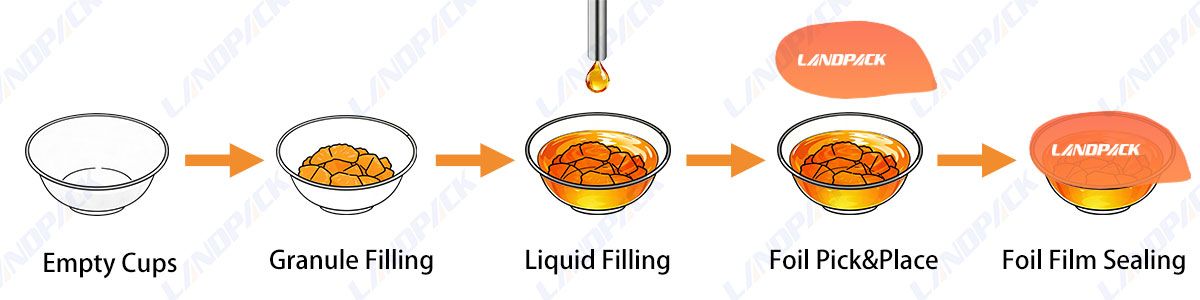

Workflow:
1. Cup Feeding, 2. Granule filling, 3. Liquid filling, 4. Roll film placement, 5. Heat sealing, 6. Cup discharge, 7. Finished product output

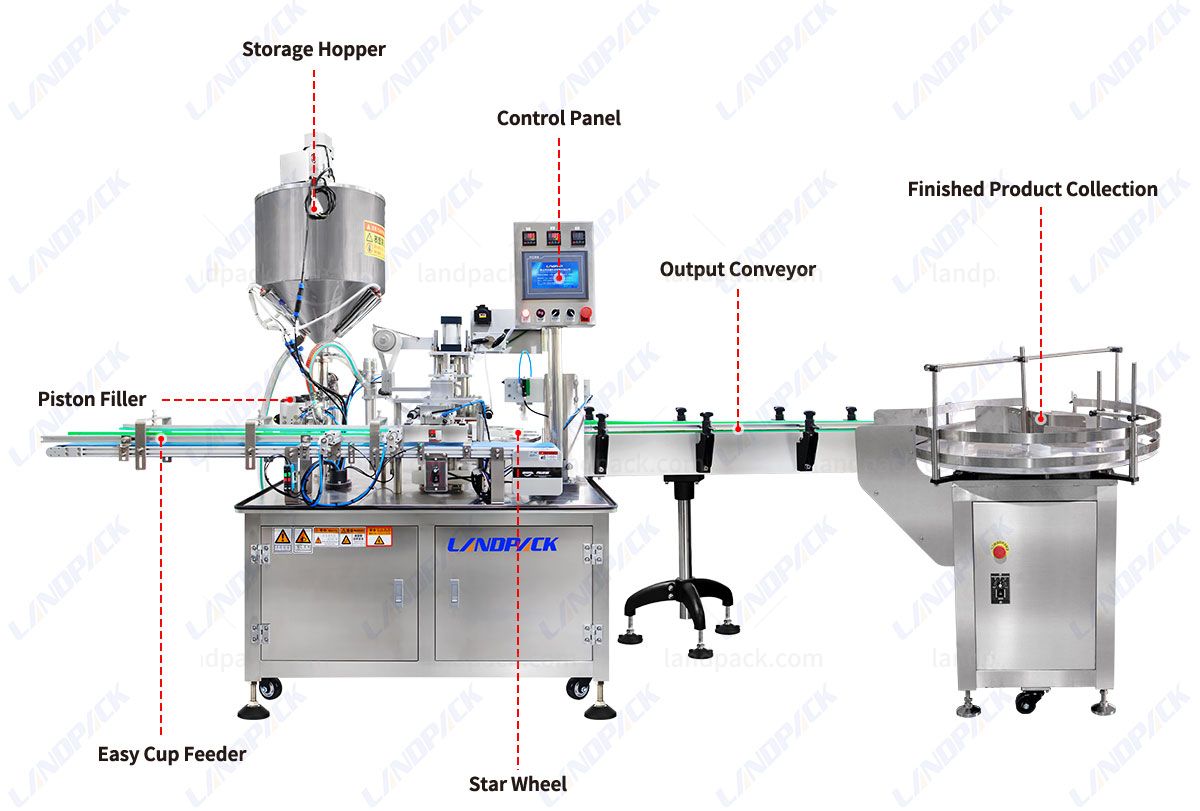

Machine Structure Overview:
1. Storage Hopper, 2. Control Panel, 3. Finished Product Collection, 4. Output Conveyor, 5. Piston Filler, 6. Easy Cup Feeder, 7. Star Wheel

Feature:

1. Fully automatic filling and sealing for consistent and efficient production.

2. Double-head rotary design increases output and productivity.

3. High-precision filling ensures uniform product quantity.

4. Stainless steel structure for durability and easy cleaning.

5. Compact turntable design saves space and simplifies installation.

6. Equipped with quality components (PLC, temperature controller, pneumatic parts) for stable operation.
