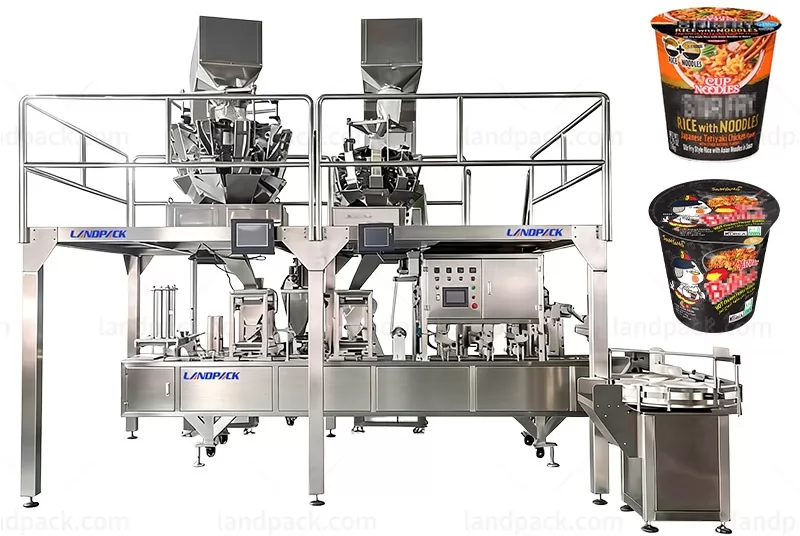

Automatic Instant Noodles Cup Filling and Sealing Machine

Application:
This linear cup sealing machine is designed for automatic packaging of instant noodle cups and similar products. It is suitable for dry or semi-dry food items that require multi-step filling and sealing in a cup format. Typical applications include: instant cup noodles (round or square noodle blocks), rice with noodles or mixed grain meals, vermicelli, pasta, or quick-cook meals, powder or granule seasoning combinations, snack cups with multi-component filling.

Package Type:
Pre-formed cups with multi-component filling and aluminum foil sealing in a continuous linear process.

Workflow:

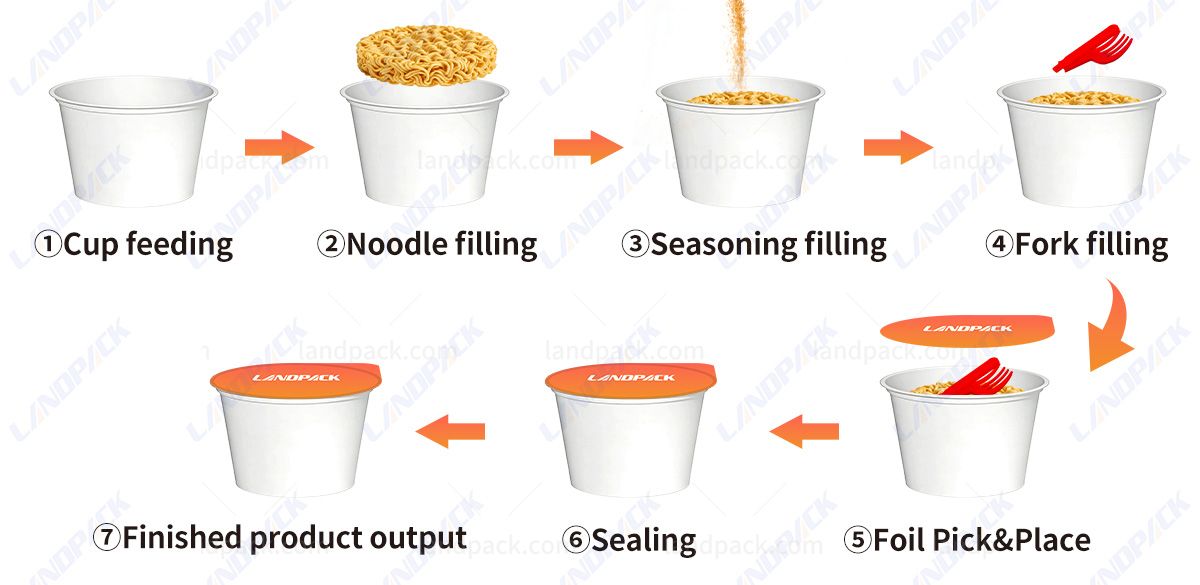

1. Cup Feeding → 2. Noodle Filling →3. Seasoning Filling → 4. Fork Filling → 5. Foil Pick&Place → 6. Sealing → 7. Finished Product Output

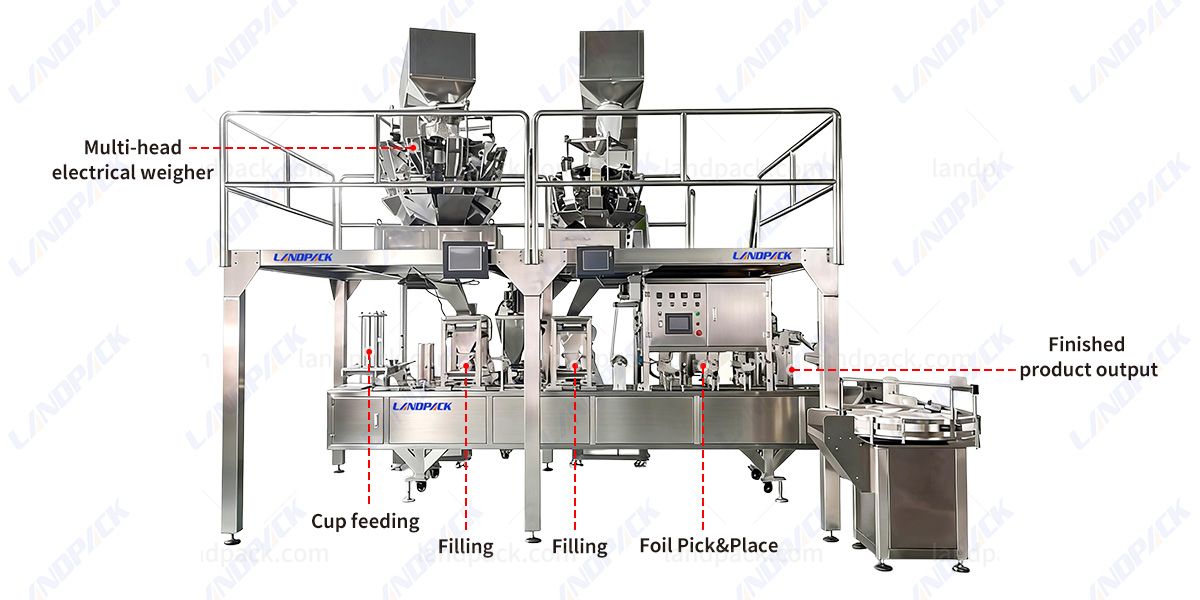

Machine Structure Overview:
1. Multi-Head Electrical Weigher  2. Cup Feeding  3. Foil Pick&Place  4. Filling  5. Finished Product Outpu

Feature:
1. Linear structure allows step-by-step processing along one direction.

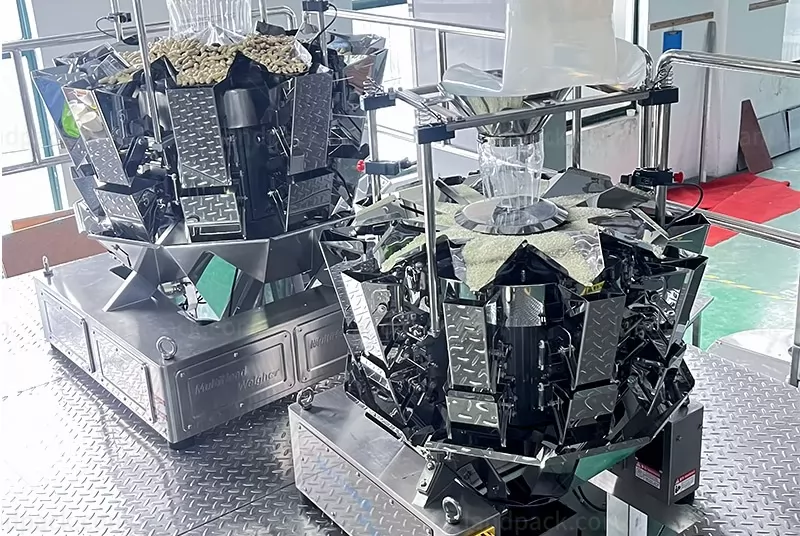

2. Compatible with multihead weighers for solid product dosing.
3. Supports noodle cake, seasoning, and accessory filling.
4. Automatic cup feeding and positioning.

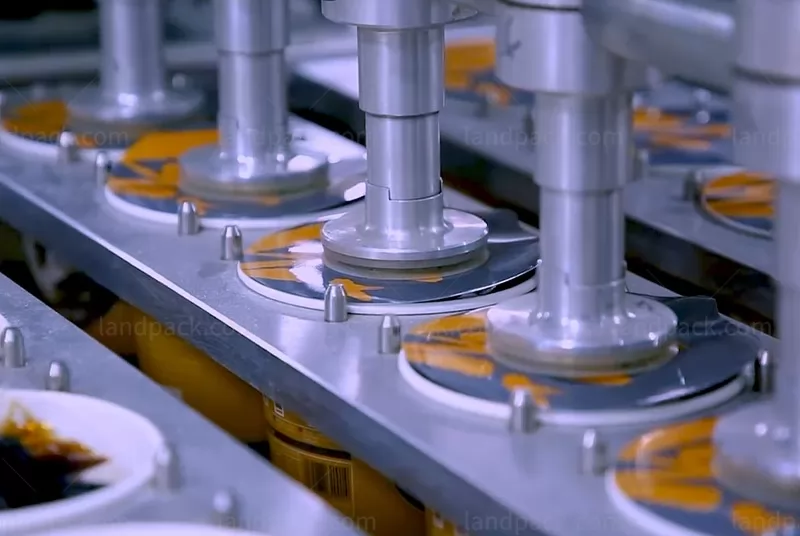

5. Foil pick and place with heat sealing.
6. Optional fork or spoon insertion module.
7. Adjustable filling stations for different product combinations.
8. Stainless steel construction for food contact parts.
9. PLC control with touch screen interface.
10. Modular design for flexible configuration.
