Application:
This blister packing machine can be used in condiment, snack food, catering, takeaway meal and food-service production lines where automatic cup forming, piston pump filling, film sealing and cutting are required. It is suitable for ketchup, barbecue sauce, cocktail sauce, garlic sauce, mustard, salad dressing, cheese sauce, yogurt sauce, honey, caramel sauce, chocolate spread, fruit jam, peanut butter and other thick liquid or paste products.
Package Type:
Suitable for thermoformed PET or PVC portion cups sealed with printed roll film for viscous sauces, jams, dressings and paste products.

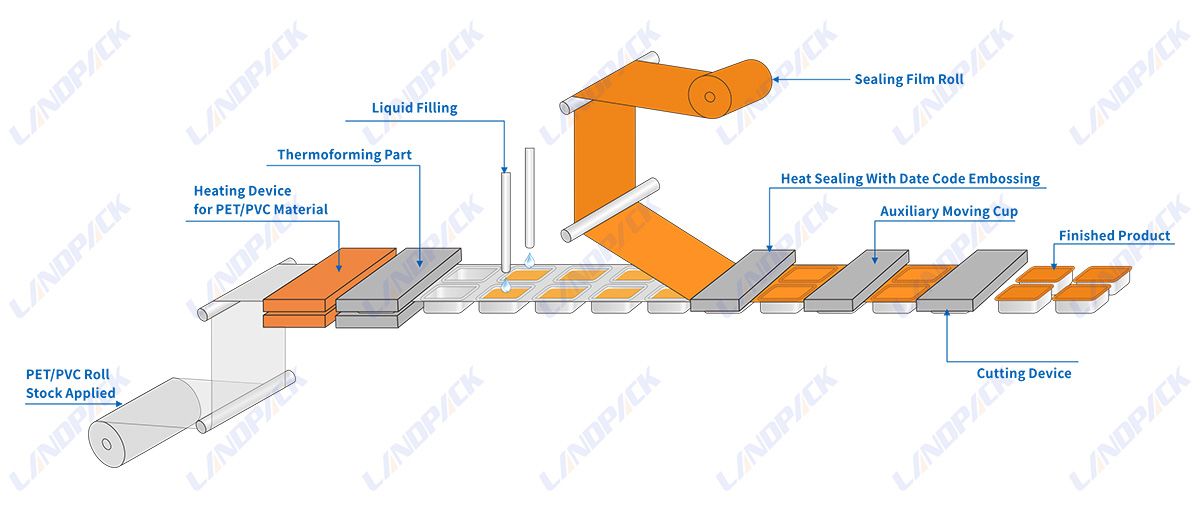

Workflow:

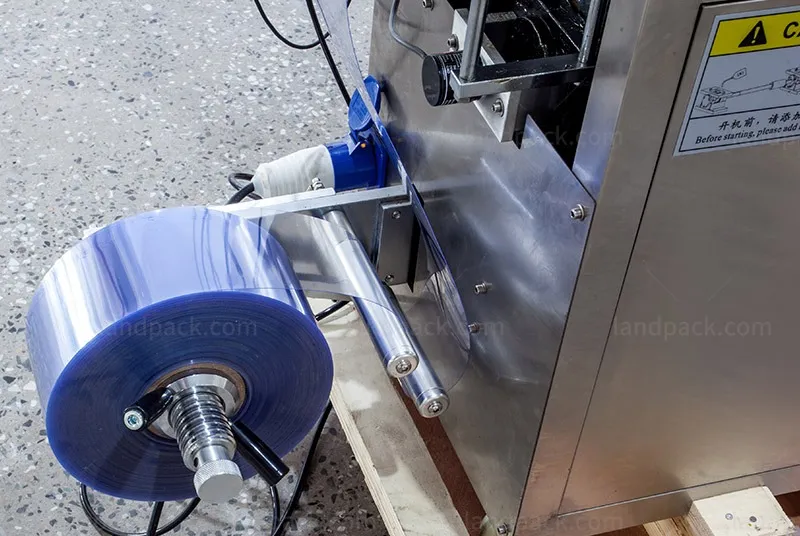

PET/PVC Bottom Film Unwinding → Film Heating → Cup Thermoforming → Piston Pump Filling → Sealing Film Feeding → Heat Sealing and Date Embossing → Cup Positioning → Cutting → Finished Product Output → Waste Film Collection

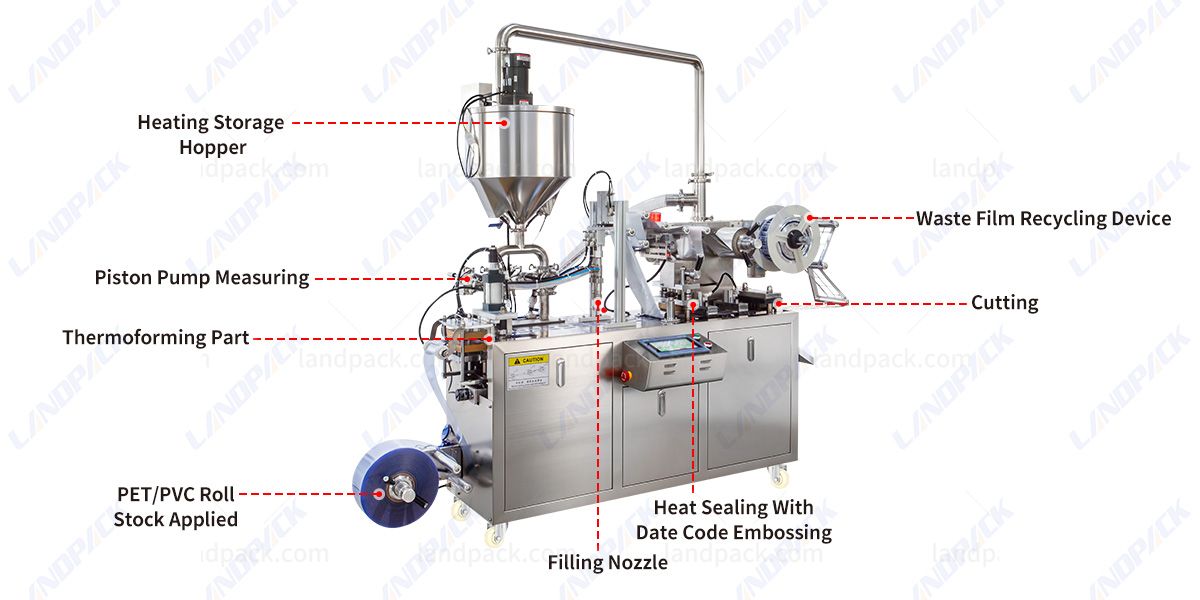

Machine Key Components:
Features:
1. PET or PVC bottom film is heated and thermoformed into portion cups directly on the machine.
2. Piston pump measuring system supports adjustable filling volumes for thick liquid and paste products.
3. Heated storage hopper helps maintain product temperature and flow during continuous filling.
4. Automatic sealing film feeding covers the filled cups before heat sealing.
5. Heat-sealing station can emboss production dates or batch information onto the package.
6. Cutting device separates the sealed film into individual cups or connected cup groups according to the mould design.

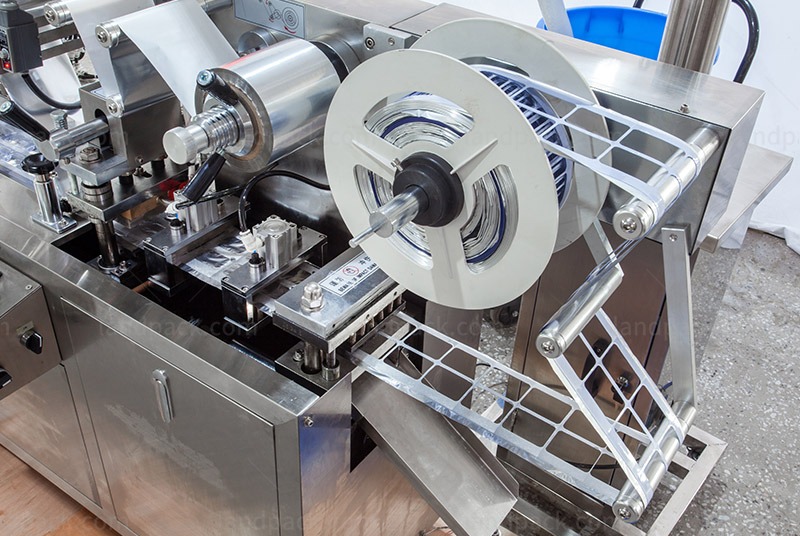

7. Waste film recycling device collects the remaining sealing film after cutting.
8. Touchscreen control allows operators to set filling, forming, sealing and production parameters from one interface.
| Parameter | Specification |
|---|---|
| Model | LDCUP-80 |
| Filling Material | Viscous liquid, paste and sauce products |
| Filling Method | Piston Pump |
| Packing Speed | 10–30 Cycles/Min |
| Production Capacity | Depends on the number of mould cavities and cup size |
| Max. Forming Area | 105 × 70 mm |
| Max. Forming Depth | Standard ≤15 mm; Max. 25 mm Customized |
| Stroke Range | 30–80 mm |
| Filling Volume | Customized According to Cup Size and Product |
| Forming Film Material | PET / PVC Roll Film |
| Forming Film Thickness | 0.15–0.50 mm |
| Max. Forming Film Width | 110 mm |
| Sealing Film Material | Aluminum Foil or Composite Heat-Sealing Film |
| Sealing Film Thickness | 0.02–0.08 mm |
| Air Pressure | 0.4–0.6 MPa |
| Compressed Air Consumption | ≥0.3 m³/min |
| Power Supply | 220V / 380V, 50/60Hz |
| Total Power | Approx. 2.8 kW |
| Main Motor Power | 0.75 kW |

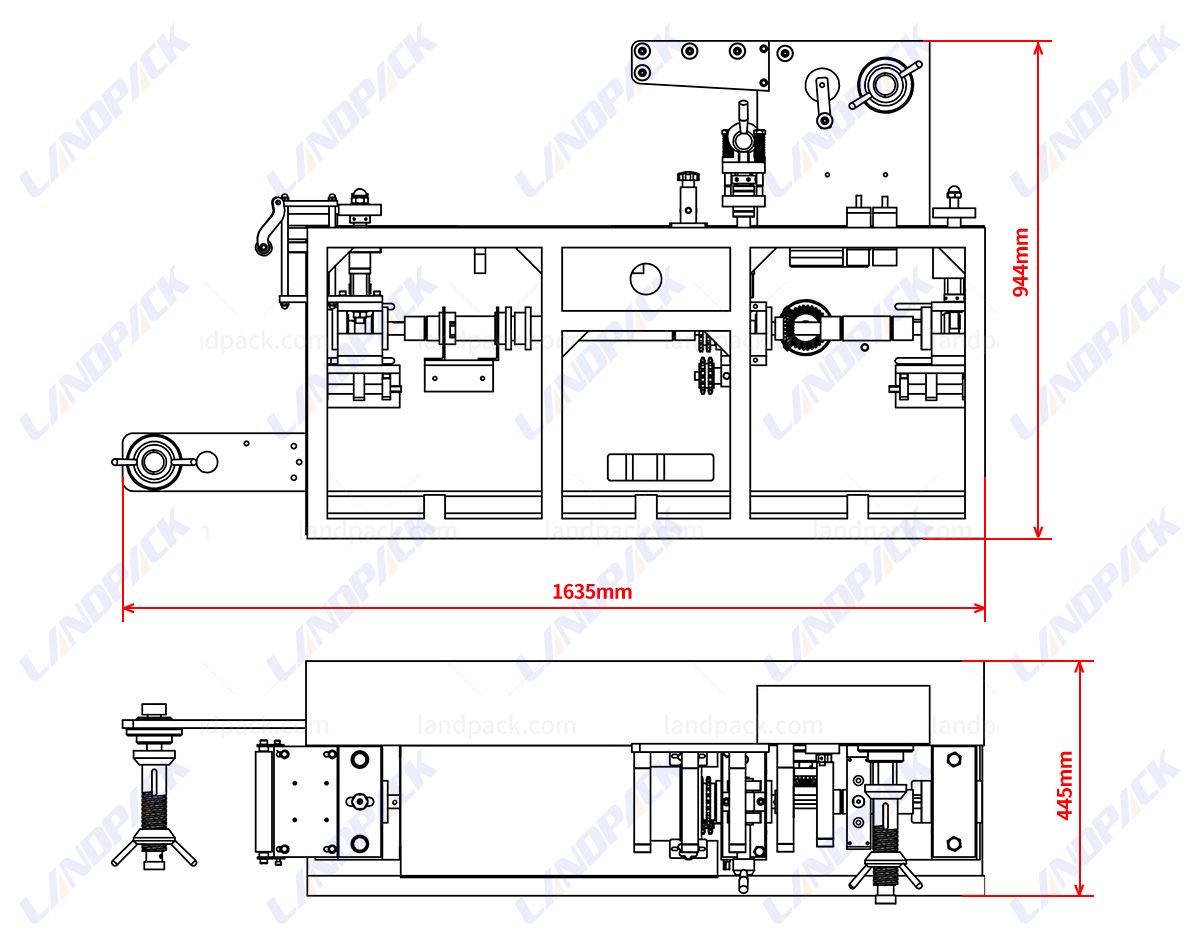

| Machine Dimensions | 1635 × 445 × 944 mm |
| Machine Weight | Approx. 400 kg |
| Control System | PLC and Touchscreen Control |
| Optional Functions | Heating and Mixing Hopper, Date Embossing, Waste Film Rewinding and Customized Mould |
