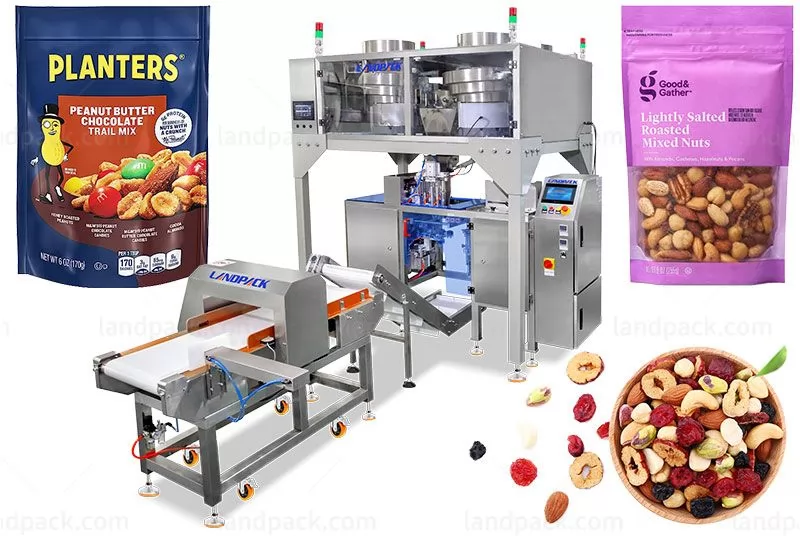

Economical Granual Mixing Mini Zipper Pouch Doypack Filling Sealing Packaging Machine With Metal Detector

  • Application
  • Description
  • Parameter
  • Video

Application:

Landpack granual mixing mini  doypack packaging machine, it is suitable for conventional granular zipper bags, standing bags, pre-made bags packing such as nuts,  frozen food, dry food, spices, biscuits, beans, oats, candy, coffee beans, chocolate, pet food, potato chips, popcorn, dried fruits, etc.

Sutable Pouch:  Any premade pouch such as Stand-up bag, Stand-up bagwith zip, Back-sealed bag, Gusset bag, 3-sides-sealed bag, 4-sides-sealed bag, 8-sides-sealed bag Self-sealed bag etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Economical Granual Mixing Mini Zipper Pouch Doypack Filling Sealing Packaging Machine With Metal Detector

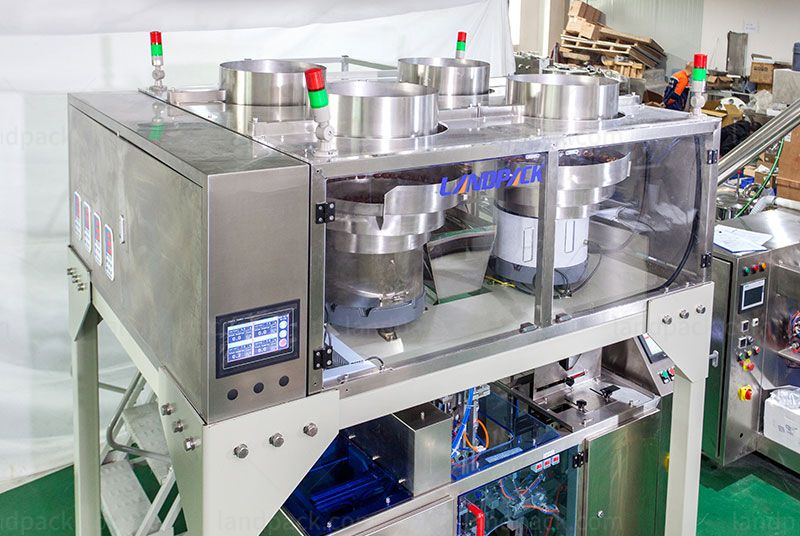

1. Vibration bowl weighing machine with economical price.

2. Mix four types of nuts.

3. With ink jet printer, printing information can be set on touched screen, more intelligent.

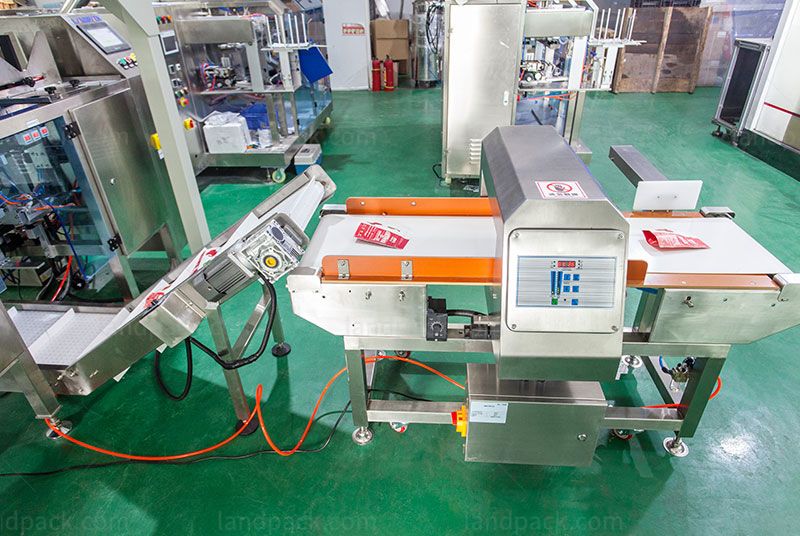

4. With metal detector, efficiently select the qualified products.

Work Flow:

1. Vibration bowl weigher seperately measure different product weights.

2. Ink jet printer prints the information.

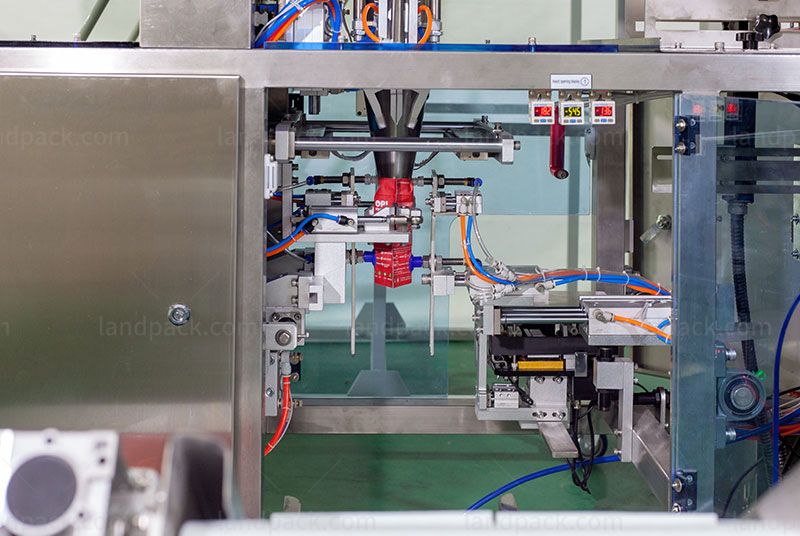

3. Automatically bag feeding.

4. Automatically zipper&bag opening.

5. Automatically filling.

6. Sealing.

7. Output.

8. Finished product conveyor delivers the finished bag to outside.

9. Metal detector.

TypeEconomical Granual Mixing Mini Zipper Pouch Doypack Filling Sealing Packaging Machine
 GP-160 LG1-260LG1-430
Bag MaterialMulti-layer Composite Premade Bag(e.g.: PET/PE)
Premade bag type3-sides sealing bag, stand-up bag)
Upgraded Bag Type(Need additional purchase
of functional device)
Gusset Bag, Zipper Bag, box bag
(Need additional purchase of functional device
Bag size70mm≤W≤150mm80mm≤W≤300mm80mm≤W≤300mm
70mm≤L≤160mm100mm≤L≤260mm100mm≤L≤430mm
Speed0~60bags/min 0~15bags/min
Sealing TypeStraight grain, pitch is 1mm (Optional reticulate)
Sealing Width 10mm(5--20mm) can be customized
Voltage220V, Single-phase,50/60HZ, 1.2KW
Air Pressure0.65Mpa
Air ConsumptionStandard machine, no additional function
Body Dimension1770*600*1230mm1770*600*1360mm
Packing Dimension1860*710*1550mm1860*710*1650mm
Export non-fumigation wooden case

Basic Configurations:

 Touch Screen
China Kinco 7 inches corlor touch screen
 Languages
Chinese, English, Spanish, Dutch, Italian, Korean (At most three languages);
 PLC
Japan Panasonic
 Cylinder
Taiwai Airtac (Can be upgraded to Japan SMC)
Vacuum Generator
China Airbest (Can be upgraded to Vacuum Pump);
Vacuum Component
Japan SMC;
Modular Control System For Vacuum Pressure
 Japan SMC;
 Modular Control System For Temperature:
China YUDIAN;
Electrical Component
Schneider / Omron;
The main structure of the machine is SUS304 (The thickness of the rack is 3.0mm), and the material of the part is aluminum;
 The part (Hopper) in contact with the material is SUS304 (Can be upgraded to SUS316L).

After receiving your inquiry,We will send you the quotation as soon as possible.
