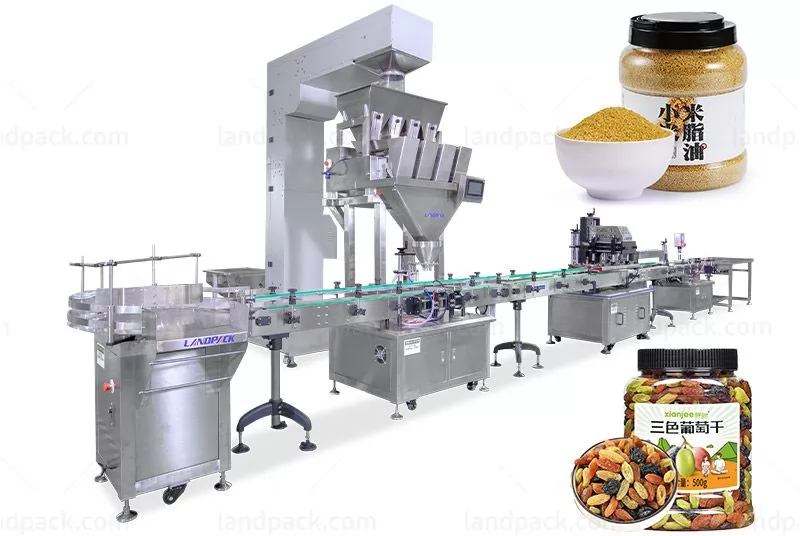

Automatic Dried Fruits Bottles Weighing Filling Capping and Labeling Lines

  • Application
  • Description
  • Parameter
  • Video

Application:

Application: granular and solid materials such as  dried fruits, dried blueberries, pineapple dried fruits, apple dried fruits, mango dried fruits beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc..

Filling Containers: bottles; plastic cans; glass cans; tinplate cans; cartons, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Dried Fruits Bottles Weighing Filling Capping and Labeling Lines

1. This production line adopts automation technology, imported PLC, imported inspection light eye, frequency converter and other electrical appliances, pneumatic components. It has the characteristics of high efficiency, intelligence, wide adaptability, good stability, etc., and is well received by users;

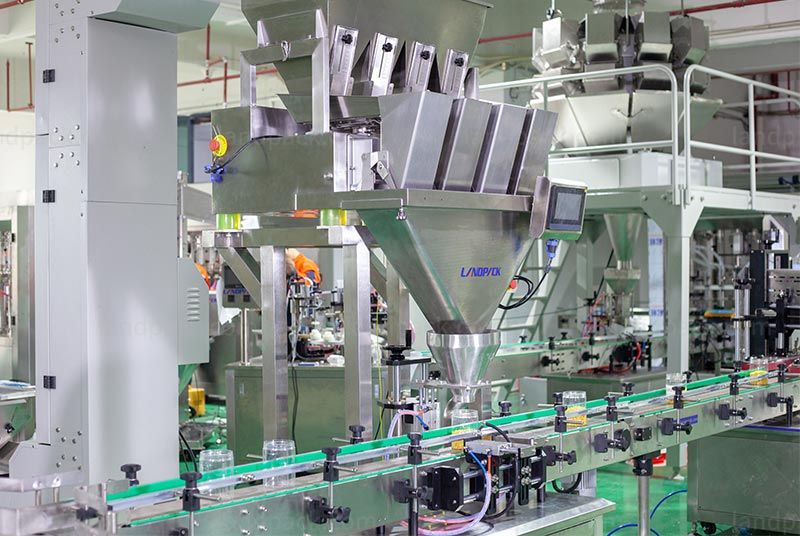

2. This line uses automatic bottle feeding, linear scale filling machine, four-wheel capping machine, wafer positioning round bottle labeling machine, and collection platform to form a fully automated production line;

3. The machine frame of the whole line is made of SUS304 material, with a unique and beautiful appearance;

4. The production line has stable operation, low noise, convenient maintenance, and fully meets the requirements of GMP certification, and is widely used in medicine, food and other industries;

5. Imported PLC and 7-inch touch screen man-machine interface, production parameterized control, simple operation;

6. This kind of production line is relatively advanced, and can be improved according to the different requirements of customers, and can be made into equipment that fully meets the needs of customers.

Brief Introduction:

This automatic filling production line is suitable for filling and filling various granular and solid materials. It is called linear metering method with high precision. It forms an automated production line with capping machine, aluminum foil sealing machine, and labeling machine. The production line has stable operation, low noise, simple operation, wide adaptability and meets GMP certification requirements.

Parameters:

ModelLFZX-SC-10
Filling Speed10-20 Bottles / min
Bottle diameterΦ30mm-Φ135mm(customizable)
Bottle height40mm-200mm(customizable)
Control systemPLC
Total lines power6.8KW
Power supply220V、50Hz
Airconsumption0.6m³/min
Equipment material304 stainless steel

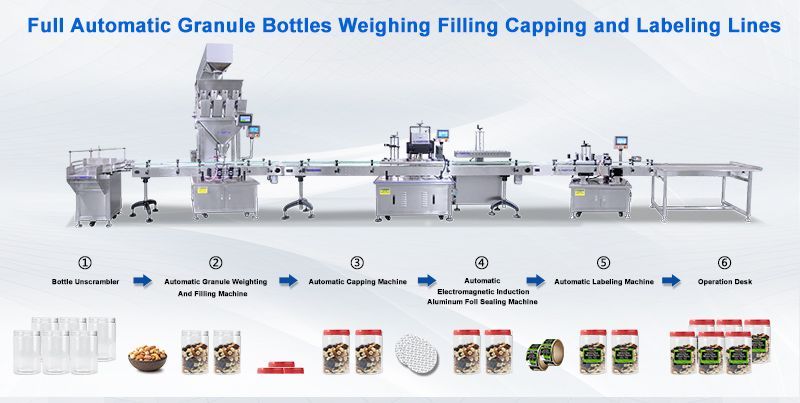

Description Of Main Packaging Process:

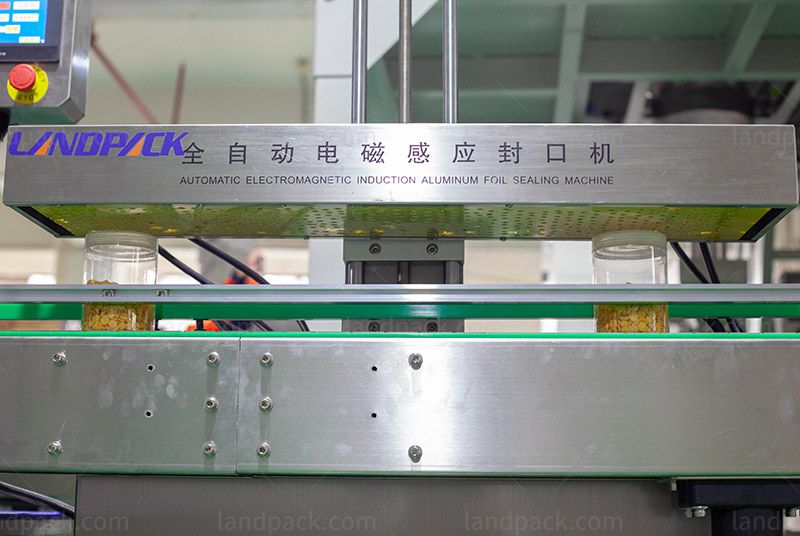

①Bottle Unscrambler → ② Automatic Granule Weighting And Filling Machine → ③Automatic Capping Machine → ④Automatic Electromagnetic Induction Aluminum Foll Sealing Machine → ⑤Automatic Labeling Machine → ⑥ Operation Desk

Automatic Dried Fruits Bottles Weighing Filling Capping and Labeling Lines
