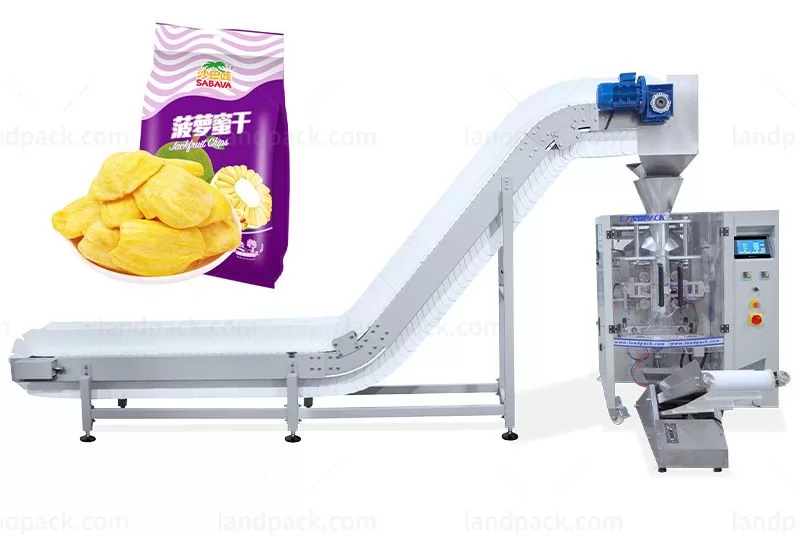

Automatic Dry Fruit Packing Machine With Hand Counting Bucket Chain

  • Application
  • Description
  • Parameter
  • Video


It's suitable to use in packing the high accuracy and easy fragile material ,such as: dry fruit, puffy food, crispy rice, jelly, candy, pistachio, apple slices, dumpling, chocolate , pet food, small hardware, Medicine, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Dry Fruit Packing Machine With Hand Counting Bucket Chain

1. PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.

2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.

3.  Film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.

4. Double servo control, high precision orientation, size more nicety.

5. External film releasing mechanism: simpler and easier installation of packing film.

6. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple .

7. Close down type mechanism , defending powder into inside of machine.

  Type LD-420B LD-520B  LD-720B
  Film width Max.420MM Max.520MM Max.720MM
  Bag length 80-300MM 80-350MM 100-500MM
  Bag width 60-200MM 100-250MM 180-350MM
  Packaging rate 10-60Bag/Min 10-60Bag/Min 10-55Bag/Min
  Machine quality 650KG 680KG 750KG
  Power 220V 2KW 220V 3KW 220V 3KW
