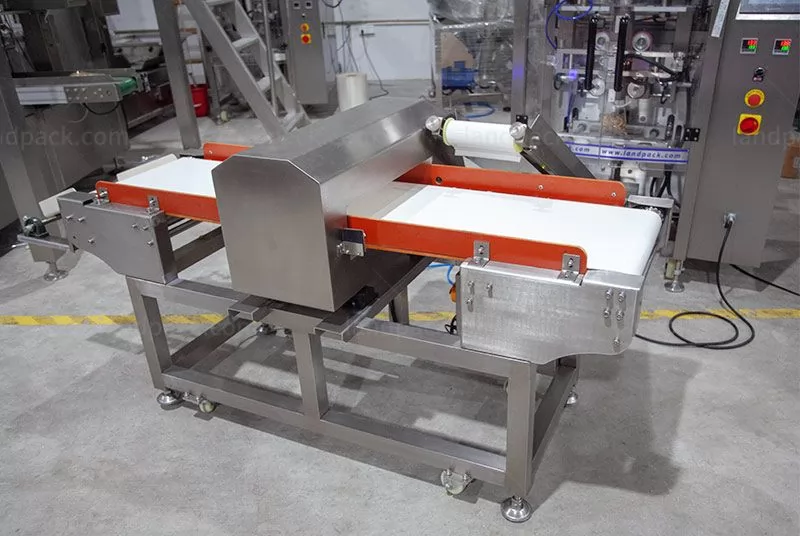

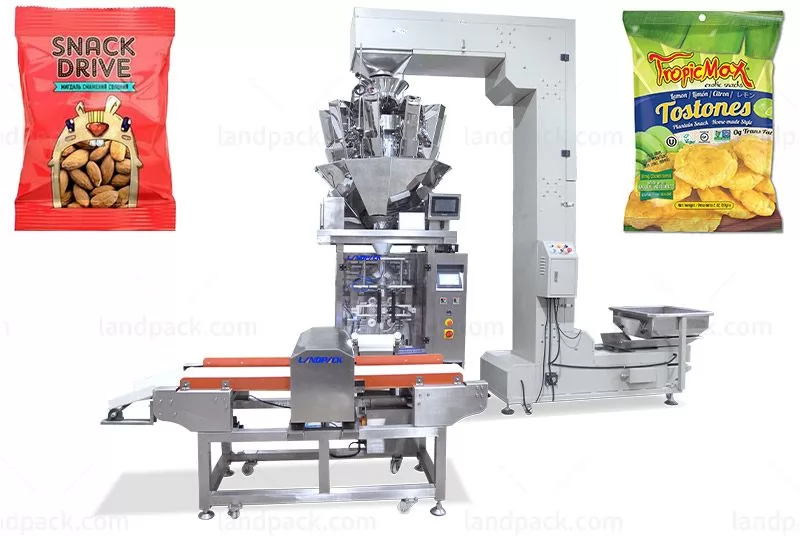

Automatic Dry Fruit Packing Machine With Nitrogen Gas And Metal Detector Function

  • Application
  • Description
  • Parameter
  • Video

Application:

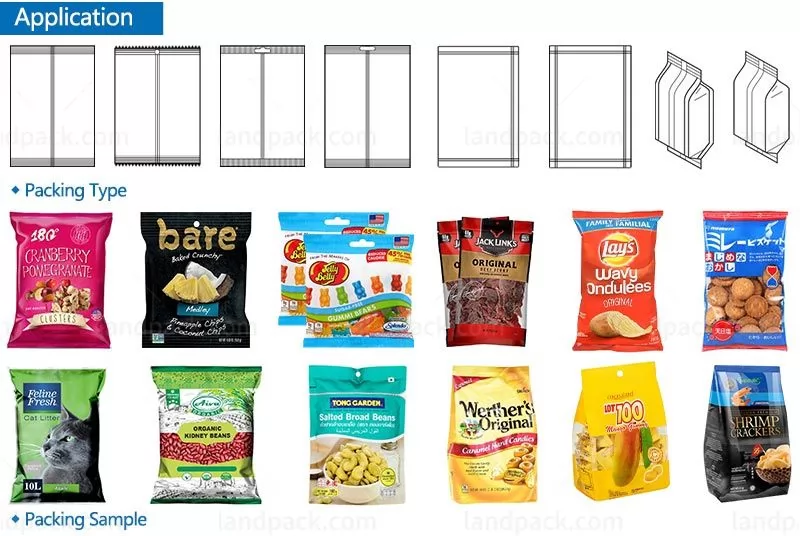

Suitable for all kinds of dry fruit, such as raisin, kismis, apple dried, banana dried, pineapple dried. and other granules products, eg puffy food, shrimp roll, peanut, shrimp chips, popcorn, cornmeal, seed and sugar,etc. which shape is roll, slice and granule.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Dry Fruit Packing Machine With Nitrogen Gas And Metal Detector Function

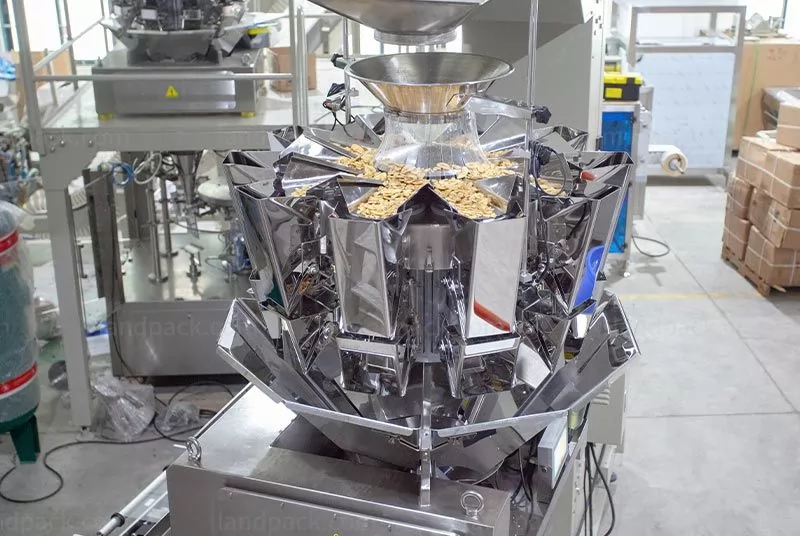

1. Multi-head combined weigher, improve metering speed and accuracy.

2. 7inch touch screen, easy operation and multiple language for choice.

3. Imported PLC system, machine performance is stable and easy for parameters adjusting.

4. With a memory function for storage ten sets of parameters. Easy to change packing product.

5. Separate PID temperature controller, suitable for various packing materials.

6. Multi-union roll film pulling system make film running more smooth.

7. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.

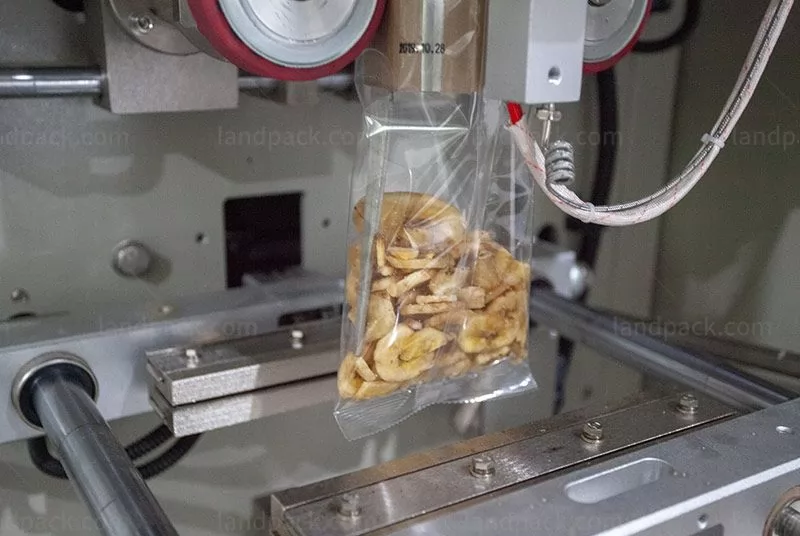

8. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.

9. Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.

10.Low loss, labor saving, easy for operation and maintenance.

ModelLD-420YLD-520YLD-720Y
Film WidthMax.420mmMax.520mmMax.720mm
Bag Length80-300mm80-350mm100-500mm
Bag Width60-200mm100-250mm180-350mm
Roll DiameterMax.320mmMax.320mmMax.320mm
Film Thickness0.04-0.12mm0.04-0.12mm0.04-0.12mm
Packing Speed5-60bag/min5-60bag/min5-55bag/min
Power220V 50/60Hz 2KW220V 50/60Hz 3KW220V 50/60Hz 3KW
Option Deviceair filling device, angle fold device, hole-punching device, link bag device.

After receiving your inquiry,We will send you the quotation as soon as possible.
