Application:
Suitable for granular quantitative weighing and packaging of hardware, fasteners, nails, screws, nuts, fittings, hinges, locks, bolts, washers, small hardware, o-rings, pipe, joint, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. This machine is specifically designed for heavy bag packaging and boxing.
2. By automating the packaging process, this machine reduces the need for manual labor.
3. The machine works seamlessly with PE material film.

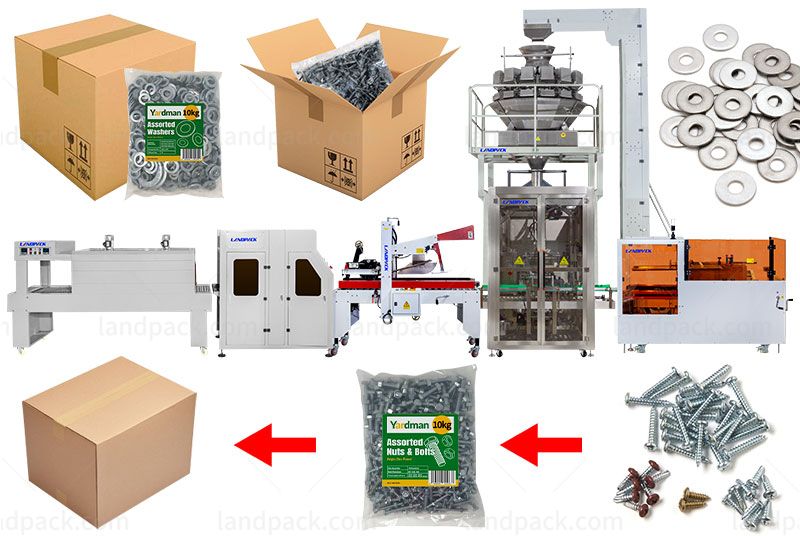

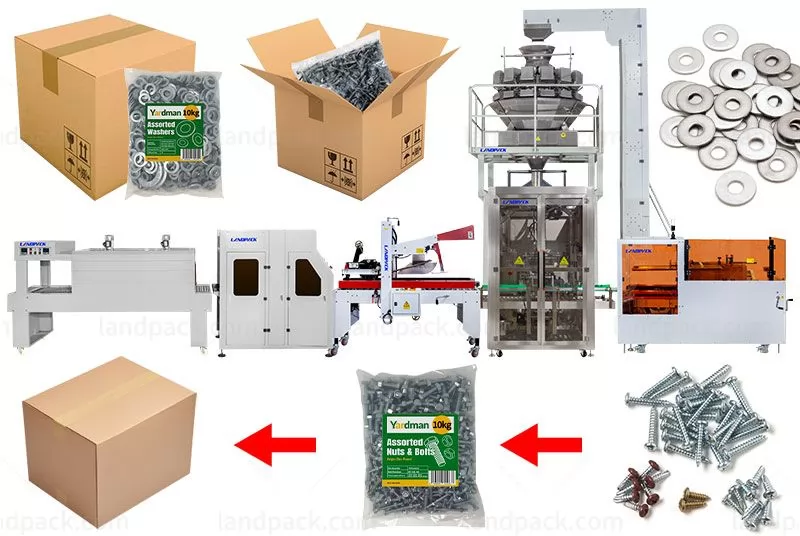

Work Flow:
1. Z-type elevator feeding product
2. 14 heads 5L weigher weighing system

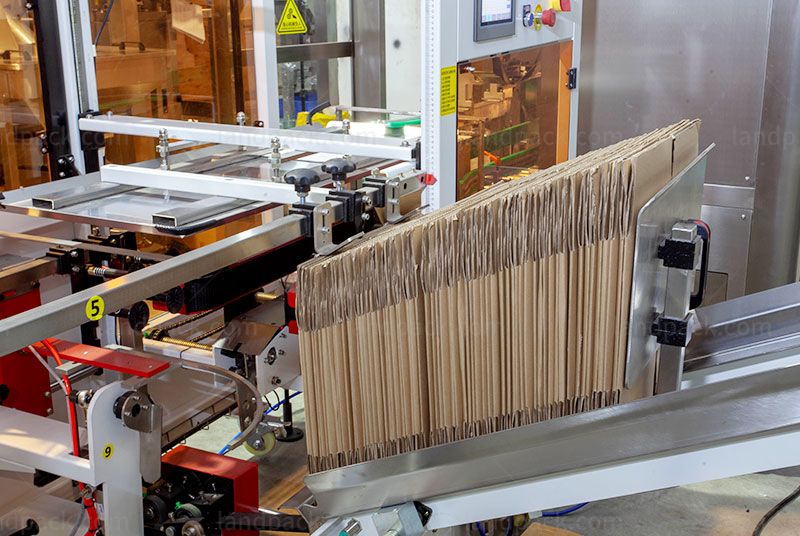

3. Automatic box opening machine
4. PE material instant sealing device, beautiful packaging

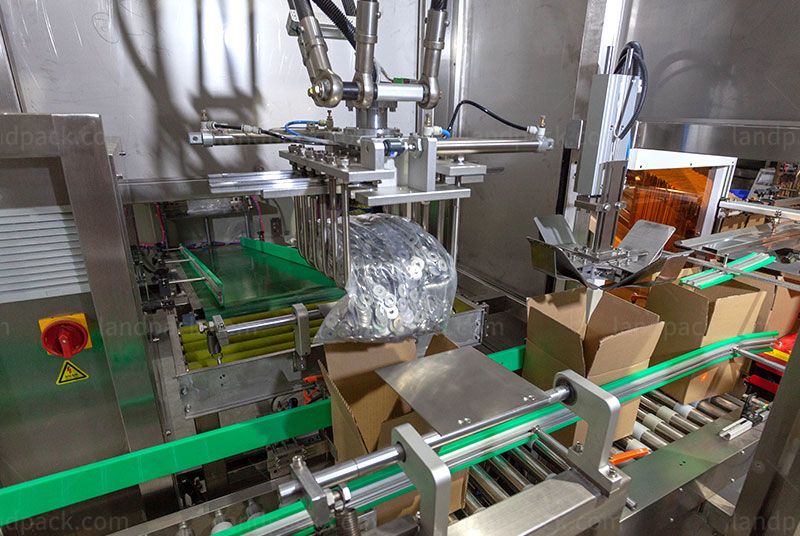

5. The robot puts in heavy materials
6. Automatic box sealing machine
7. Finished bag checking
Model | LD-420 | LD-520 | LD-720 | LD-900 |
Film width | Max.420mm | Max.520mm | Max.720mm | Max.900mm |
Bag length | 80-300mm | 80-350mm | 100-500mm | 100-600mm |
Bag width | 60-200mm | 100-250mm | 180-350mm | 260-430mm |
Film roll diameter | Max.320mm | Max.320mm | Max.320mm | 400mm |
Packaging rate | 5-60 bag/min | 5-60 bag/min | 5-55 bag/min | 5-20 bag/min |
Range of measurement | 150-1500ml | 2000ml | 4000ml | 1-25L |
Film thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Power | 220V 50/60Hz 2kw | 220V 50/60Hz 3kw | 220V 50/60Hz 3kw | 220V 50/60Hz 4.5kw |
Machine size(LxWxH) | 1217x1015x1343mm | 1488x1080x1490mm | 1780x1350x2050mm | 2305x1685x2725mm |
Machine quality | About 650kg | About 680kg | About 750kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
